0-10V DIMMER SENSOR SNOW

0-10V DIMMER SENSOR SNOW – Lighting Control Sensor

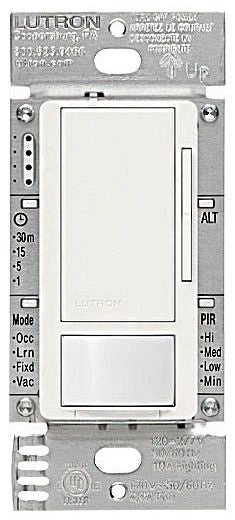

The Lutron Maestro 0-10V Dimmer Sensor Snow is designed for advanced lighting control applications, integrating motion sensing and dimming capabilities. Ideal for electrical distributors and lighting solutions providers, this sensor switch automates light activation and dimming based on occupancy and ambient light conditions. It supports wire and cable installations in wallbox mounting and is compatible with 0-10V LED and fluorescent fixtures, making it a reliable component for switchgear suppliers and professional electrical installations.

Specifications

• Name: 0-10V DIMMER SENSOR SNOW
• Application: Lighting Control
• Load: 8 A/0-10VDC
• Mounting Type: Wallbox
• Body Material: Plastic
• Enclosure Material: Plastic
• Decorative Color: Snow
• Operating Temperature: 32 To 104 degrees fahrenheit
• Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
• Product Weight: 5.55 lbs
• Manufacturer Part #: MS-Z101-SW

Features

• Passive infrared (PIR) sensor with Lutron exclusive Cross Correlation Technology (XCT) for fine and very fine motion detection
• Automatically turns lights on/off based on occupancy with adjustable timeout settings (1, 5, 15, or 30 minutes)
• Smart Ambient Light Detection (ALD) to prevent lights from turning on when sufficient natural light is present
• Supports single-pole, 3-way, and multi-location switching (up to 9 locations with companion switches)
• Compatible with all drivers providing a current source compliant with IEC 60929 Annex E.2, including LED and fluorescent ballasts
• Adjustable occupied light level and vacancy mode to comply with Title 24 requirements
• Tamper-resistant lens with a 180-degree field of view covering up to 900 sq ft for major motion and 400 sq ft for minor motion
• Plastic enclosure and body for durability in indoor environments
• Available in multiple colors with perfect pairing to Lutron Claro wallplates (sold separately)
