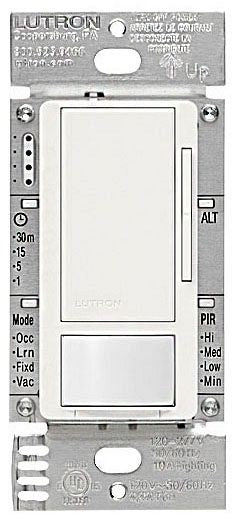

0-10V DIMMER SENSOR VAC BLACK

0-10V DIMMER SENSOR VAC BLACK – 0-10V Motion Sensor Dimmer

The Lutron Maestro 0-10V Motion Sensor/Dimmer Switch integrates advanced motion sensing technology with dimming control for lighting applications. Designed for lighting control in indoor environments, this device is suitable for use by electrical distributors, lighting solutions providers, and switchgear suppliers requiring reliable wire and cable compatible controls. It supports single-pole, 3-way, and multi-location installations, enabling control from up to nine locations. The sensor uses passive infrared (PIR) detection with Lutron’s exclusive Cross Correlation Technology (XCT) to detect both major and fine occupant motions, ensuring lights respond accurately to room occupancy.

Specifications

• Application: Lighting Control
• Load: 8 A/0-10VDC
• Operating Voltage: 120‚Äì277 V~ 50/60 Hz
• Control Current: 50 mA max sink current
• Compatible with IEC 60929 Annex E.2 compliant drivers and ballasts
• Motion Sensor Field of View: 180 degrees
• Major Motion Coverage: 30 ft √ó 30 ft (900 sq ft)
• Minor Motion Coverage: 20 ft √ó 20 ft (400 sq ft)
• Operating Temperature: 32 to 104 degrees Fahrenheit
• Environmental Conditions: 0 to 90% humidity, non-condensing, indoor use only
• Mounting Type: Wallbox
• Body and Enclosure Material: Plastic
• Product Weight: 5.55 lbs
• Color: Black
• Manufacturer Part Number: MS-Z101-V-BL

Features

• Passive infrared (PIR) sensor with Lutron exclusive Cross Correlation Technology (XCT) for fine and very fine motion detection
• Vacancy mode operation (manual ON/auto OFF) meeting California Title 24 requirements
• Adjustable timeout settings: 1, 5, 15, or 30 minutes to control light-off delay after room vacancy
• Adjustable low-end trim for LED dimmest stable light level
• High-low PIR sensor sensitivity adjustment
• Compatible with all 0-10V LED/fluorescent drivers providing a current source
• No power pack required for operation
• Supports multi-location control with Maestro companion switches (up to 9 locations)
• Easy-to-read programming buttons on the sensor for customization of dimmer and sensor functions
• Designed for indoor use only with tamper-resistant lens covering the sensor
• Pairs with Lutron Claro wall plates for consistent color matching (sold separately)
