0-10V DIMMER SENSOR VAC WHITE

0-10V Dimmer Sensor Vac White – Lighting Control Solutions

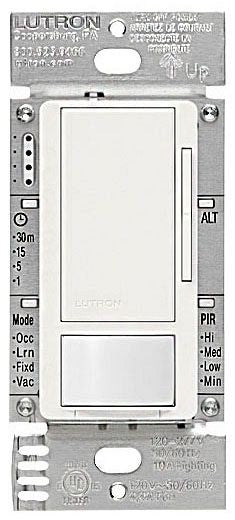

The Lutron 0-10V Dimmer Sensor Vac White (Model MS-Z101-V-WH) is a wallbox-mounted lighting control device designed for automated lighting management in commercial and residential settings. It integrates advanced passive infrared (PIR) motion sensing technology with 0-10V dimming capability to provide energy-efficient lighting control. This sensor/dimmer switch is suitable for use with LED and fluorescent fixtures that comply with IEC 60929 Annex E.2 and supports loads up to 8A. It is ideal for electrical distributors and lighting solutions providers seeking reliable wire and cable compatible switchgear suppliers for occupancy and vacancy lighting control applications.

Specifications

• Application: Lighting Control
• Load Rating: 8 A / 0-10VDC
• Operating Voltage: 120‚Äì277 V, 50/60 Hz
• Sensor Type: Passive Infrared (PIR) with Lutron exclusive Cross Correlation Technology (XCT)
• Motion Coverage: 180¬∞ field of view; 900 sq ft major motion; 400 sq ft minor motion
• Control Types: Single-pole, 3-way with standard mechanical switch, multi-location up to 9 companion switches
• Body and Enclosure Material: Plastic
• Mounting Type: Wallbox
• Color: White
• Operating Temperature Range: 32 to 104 degrees Fahrenheit (0 to 40 degrees Celsius)
• Environmental Conditions: Indoor use only; 0 to 90% humidity, non-condensing
• Product Weight: 5.55 oz
• Compatible with all drivers providing a current source compliant to IEC 60929 Annex E.2
• Maximum Control Current: 50 mA (controls up to 25 ballasts or drivers)
• Manufacturer Part Number: MS-Z101-V-WH

Features

• Vacancy-only sensor mode meets California Title 24 requirements
• Advanced motion detection with XCT technology detects fine motion such as typing or reading to prevent premature light shutoff
• Adjustable timeout settings: 1, 5, 15, or 30 minutes for controlling how long lights stay on after room vacancy
• Low-end trim adjustment for stable LED dimming at the lowest light level
• High-low PIR sensitivity adjustment to customize motion detection range
• Compatible with Maestro companion switches for multi-location control (up to 9 locations)
• No power pack required for operation
• Digital fade dimming for smooth light transitions
• Tamper-resistant lens protects PIR sensor
• Manual override available with raise/lower buttons to set desired light levels
• Designed for indoor environments with compliance to electrical codes and safety standards
