0-10V DIMMER SENSOR WHITE

0-10V Dimmer Sensor White – Lighting Control Sensor

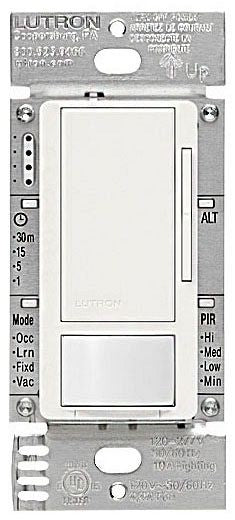

The Lutron 0-10V Dimmer Sensor White (Model MS-Z101-WH) is designed for lighting control applications, providing occupancy/vacancy sensing with dimming capabilities for 0-10V LED and fluorescent fixtures. Ideal for indoor environments, this sensor integrates seamlessly with wire and cable systems and is suitable for use by electrical distributors and lighting solutions providers requiring precise and reliable dimming control.

Specifications

• Manufacturer: Lutron
• Manufacturer Part #: MS-Z101-WH
• Load Rating: 8 A / 0-10V DC
• Operating Voltage: 120‚Äì277 V~ 50/60 Hz
• Compatible with: Electronic fluorescent ballasts and LED drivers compliant with IEC 60929 Annex E.2
• Control Current: Maximum 50 mA, controls up to 25 ballasts or drivers
• Mounting Type: Wallbox
• Body Material: Plastic
• Enclosure Material: Plastic
• Color: White (Body and Decorative)
• Operating Temperature: 32 to 104 ¬∞F (0 to 40 ¬∞C)
• Environmental Conditions: Indoor use only; 0 to 90% humidity, non-condensing
• Product Weight: 5.55 oz
• Sensor Technology: Passive infrared (PIR) with Lutron exclusive XCT technology
• Sensor Coverage: Up to 30 ft √ó 30 ft major motion, 20 ft √ó 20 ft minor motion
• Sensor Field of View: 180¬∞

Features

• Occupancy/vacancy sensor modes with manual-on/auto-off and auto-on/auto-off options
• Digital fade dimming control for 0-10V LED and fluorescent fixtures without requiring a power pack
• Compatible with IEC 60929 Annex E.2 compliant drivers and ballasts
• No derating required when ganged with other units
• Adjustable timeout settings: 1, 5, 15, or 30 minutes
• High-low sensitivity adjustment for PIR sensor
• Multi-location control capability (up to 10 locations)
• Vacancy models meet California Title 24 requirements
• Simple installation with wallbox mounting and plastic enclosure
• Ground and neutral wiring options supported for retrofit and new installations
• Indoor use only with cleanable plastic body and enclosure
