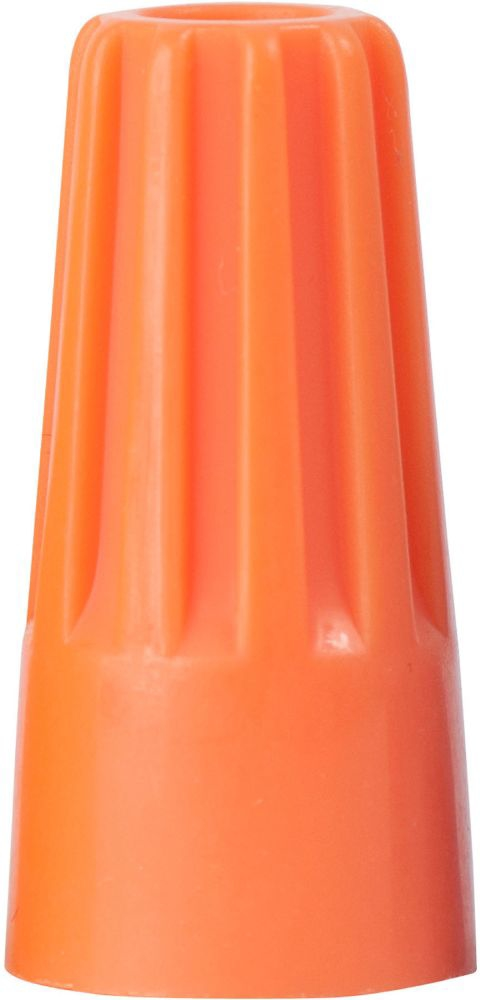

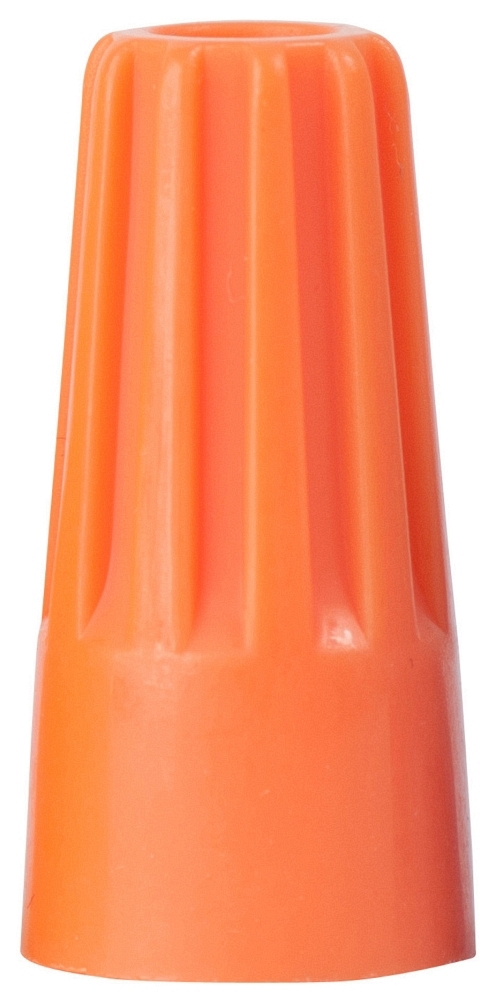

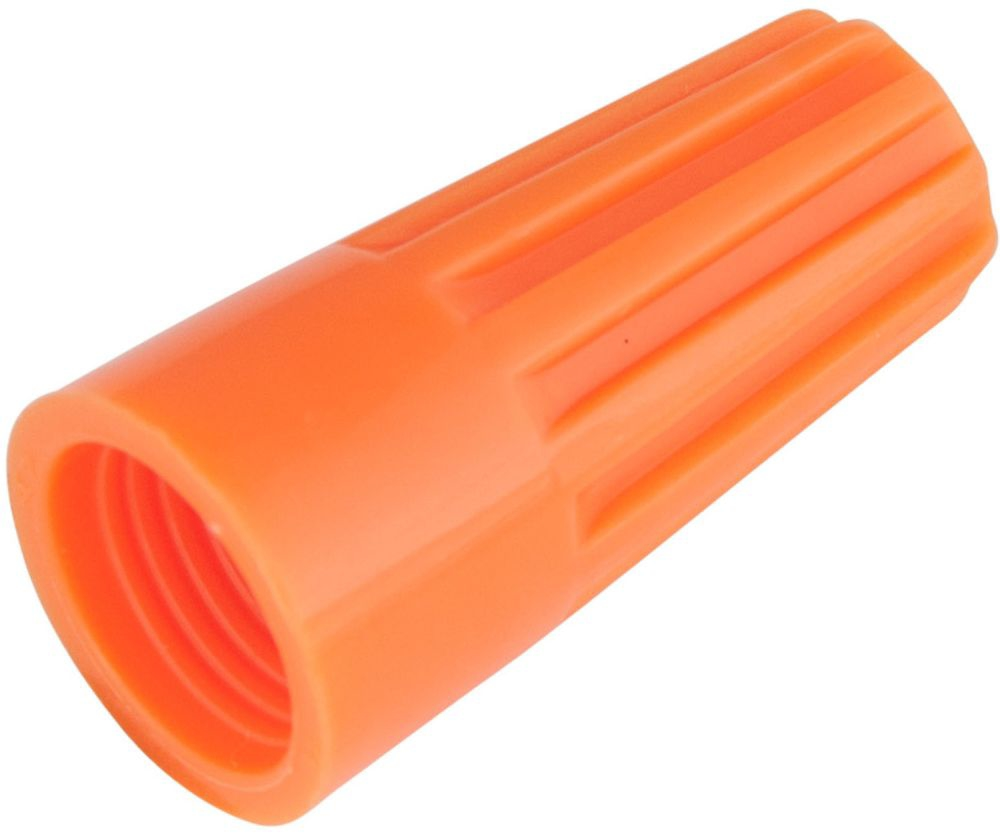

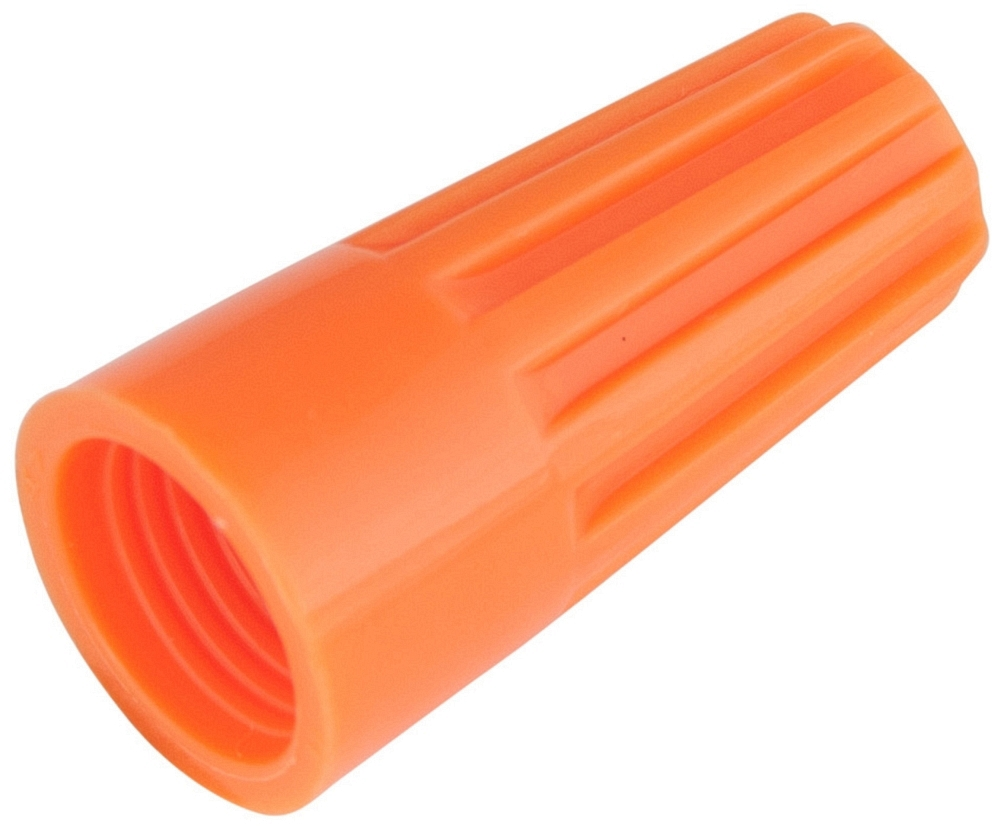

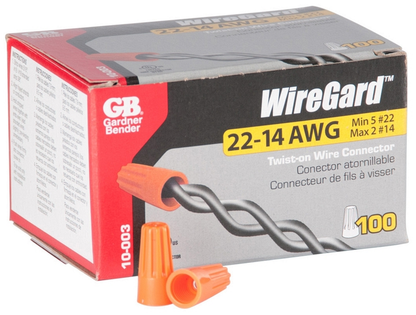

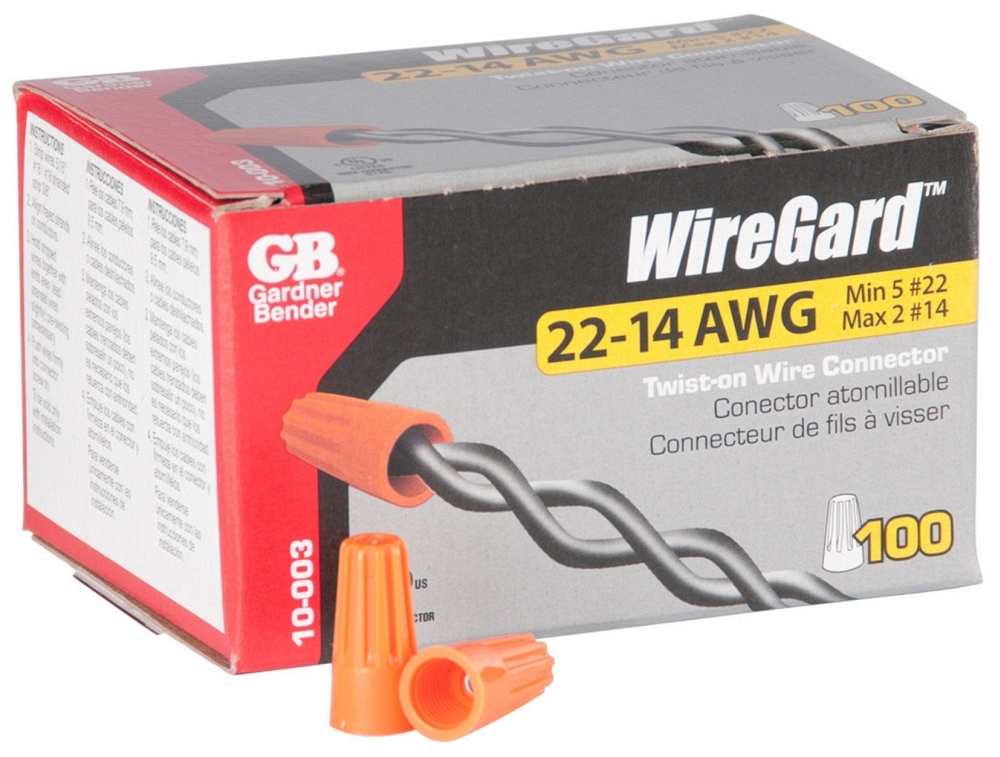

10-003, Wire Connector

10-003 Wire Connector – Electrical Wire Connector

The 10-003 Wire Connector by Gardner Bender is a WireGard™ twist-on connector designed for general purpose electrical applications involving the connection of two or more copper wires. Ideal for electrical distributors and lighting solutions providers, this connector ensures secure, corrosion-resistant connections for wire and cable installations in residential and commercial switchgear setups. Its polypropylene shell and zinc-plated steel spring provide durability and reliable conductivity, suitable for 600 V building wiring and up to 1000 V lighting fixture applications.

Specifications

• Wire Range: #22 to #14 AWG solid or stranded copper conductors
• Voltage Rating: 600 V max. for building wiring, 1000 V max. for lighting fixtures and luminaires/signs
• Temperature Rating: 105 °C (221 °F)
• Shell Material: Polypropylene, color-coded orange

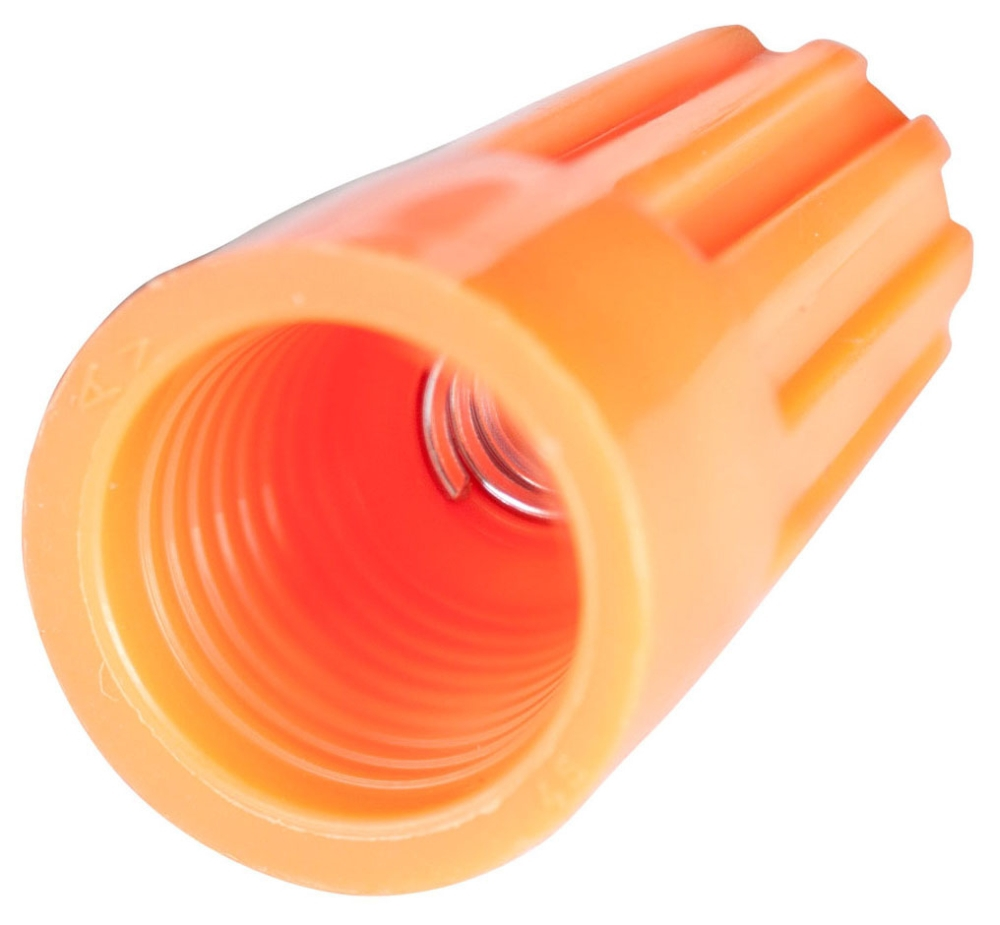

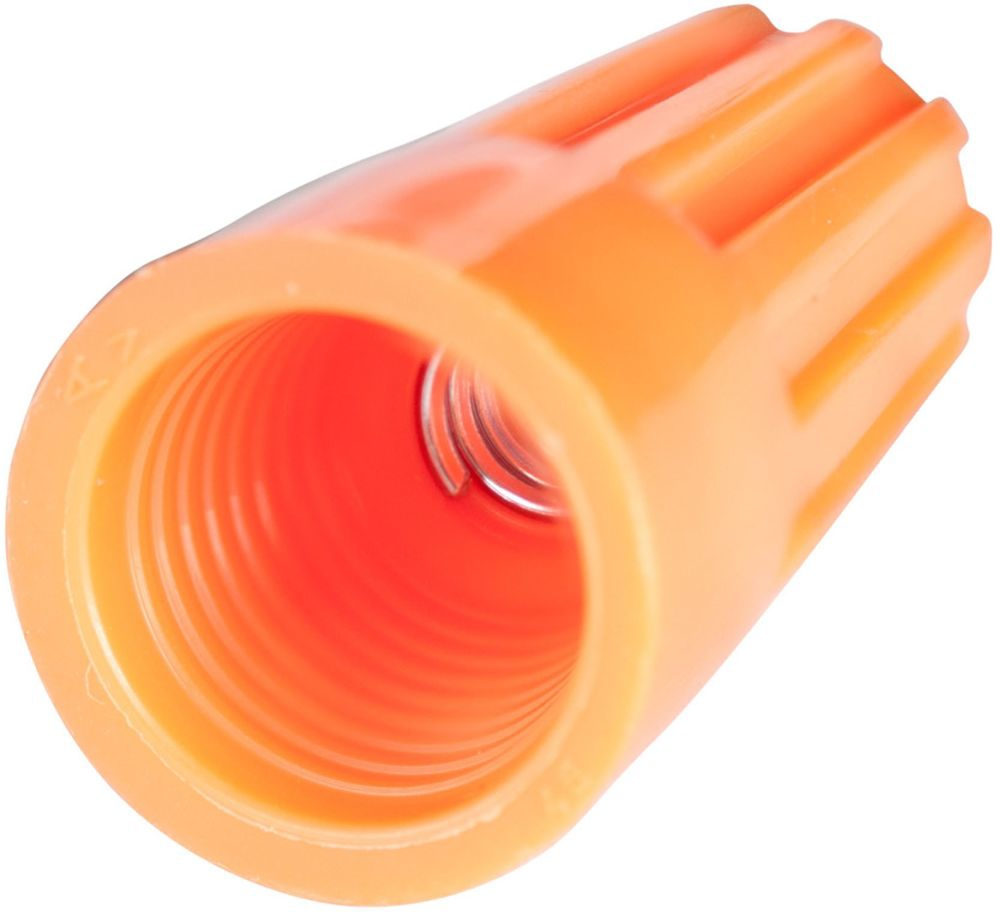

• Inner Spring: Zinc-plated steel with square profile for secure wire contact
• UL Listed and CSA Certified (UL file number 61X5)
• Product Weight: 3.5 grams
• Dimensions (inches): Length 27/32, Diameter approx. 21/64 to 7/16 (various measured points)

Features

• Straight type shell with side knurling for easy grip and installation
• Tight, square-wire spring ensures quick, secure connections with positive continuity
• Requires fewer turns to meet required torque, improving installation efficiency
• Flame-retardant shell resists heat distortion up to 105 °C
• High-dielectric shell with deep skirt design prevents exposure of bare wire
• Resistant to chemical action from hydrocarbons, diluted acids, and alkaline solutions
• Color-coded for quick and easy size identification in wire and cable applications
• Suitable for use in air conditioners, ceiling fans, doorbells, indoor lighting, switches, thermostats, ballasts, and appliances
