13 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 1600 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

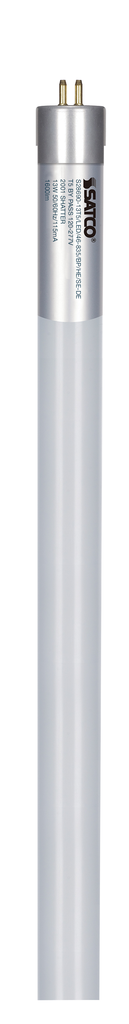

13 Watt T5 LED Tube Light – Lighting Solutions for Electrical Distributors

This 13 Watt T5 LED tube light, manufactured by Satco, is designed for use in commercial and industrial lighting applications requiring efficient and reliable linear LED lighting. It features a miniature bi-pin base and operates on a wide voltage range of 120-277 volts. Ideal for lighting solutions requiring ballast bypass (Type B), this LED tube provides a neutral white color temperature of 3500K with a frosted glass lens for even light diffusion. Suitable for electrical distributors and switchgear suppliers looking for durable, energy-efficient wire and cable compatible lighting components.

Specifications

• Wattage: 13W
• Voltage: 120-277V
• Base: Miniature Bi Pin (G5 ANSI Base)
• Length: 48 In.
• Lumens: 1600 lumens
• Color Temperature: Neutral White (3500 kelvins)
• Beam Spread: 240¬∞
• CRI: 83
• Rated Life: 50,000 hours
• Operating Temperature: -13¬∞F to +113¬∞F (-25¬∞C to +45¬∞C)
• Material: Glass
• Lens Finish: Frosted Glass
• Housing Color: White
• IP Rating: IP20
• Amperage: 0.108-0.047 amperes
• Power Factor: 0.9
• THD: 20%
• Weight: 0.4 lb
• Shatter-Proof Type: PET Coated
• Safety Listing: cULus Classified
• Location Rating: Damp
• DLC Approved: Yes (DLC ID: PLYHW51UWNHJ)
• RoHS Compliant: Yes
• FCC Compliant: Yes
• NSF Approved: Yes
• Manufacturer Part #: S28690
• Country of Origin: China

Features

• Ballast Bypass (Type B) wiring for direct connection to line voltage
• Non-dimmable operation suitable for standard lighting systems
• Frosted glass lens ensures uniform light distribution
• Long life LED technology with 50,000 hours rated life reduces maintenance
• Wide operating voltage range supports various electrical systems
• PET coated shatter-proof glass enhances safety and durability
• Certified for use in damp locations, expanding installation options
• Energy-efficient alternative to 28W fluorescent tubes
• Compliance with multiple safety and environmental standards for commercial use

Downloads & Links

• Spec Sheet
