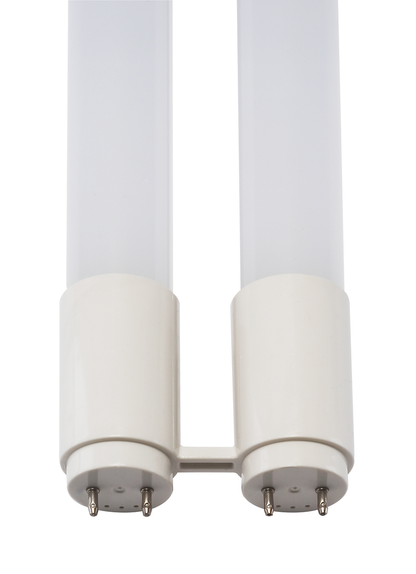

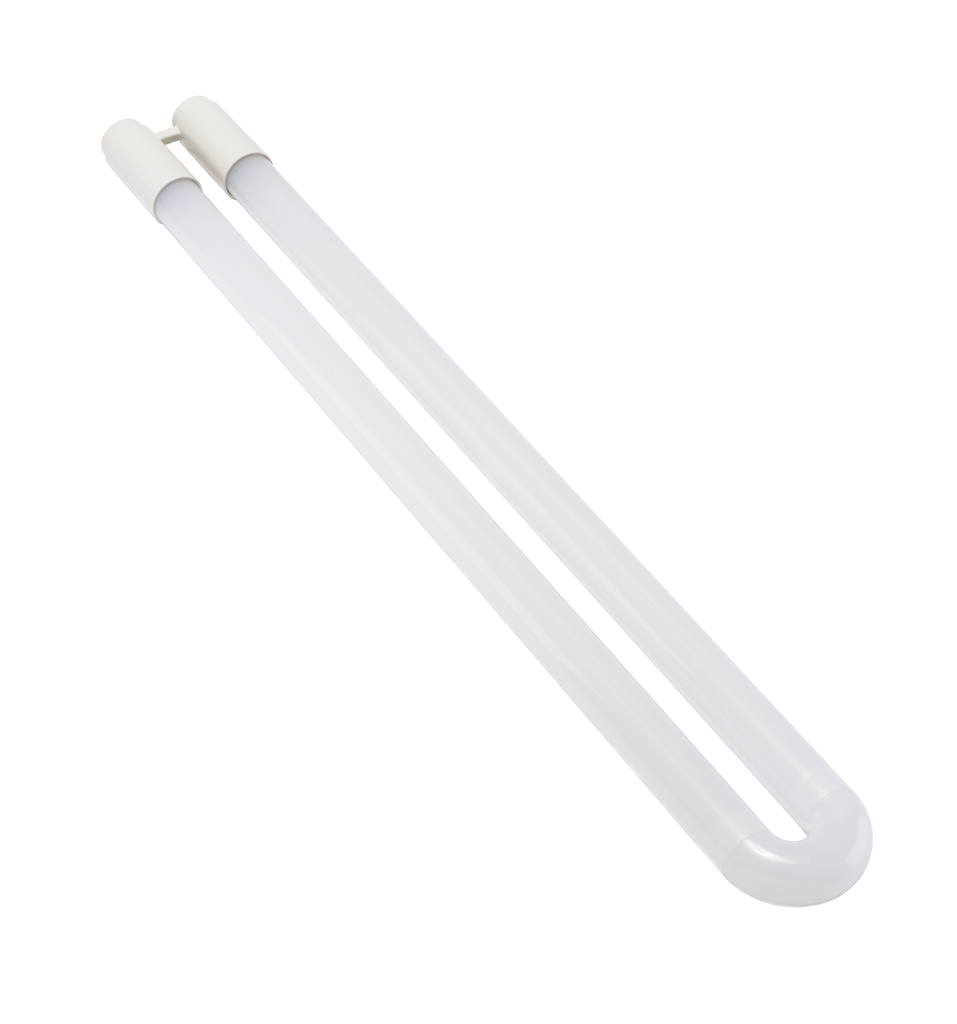

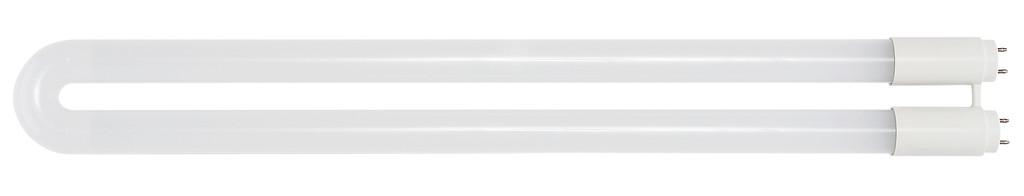

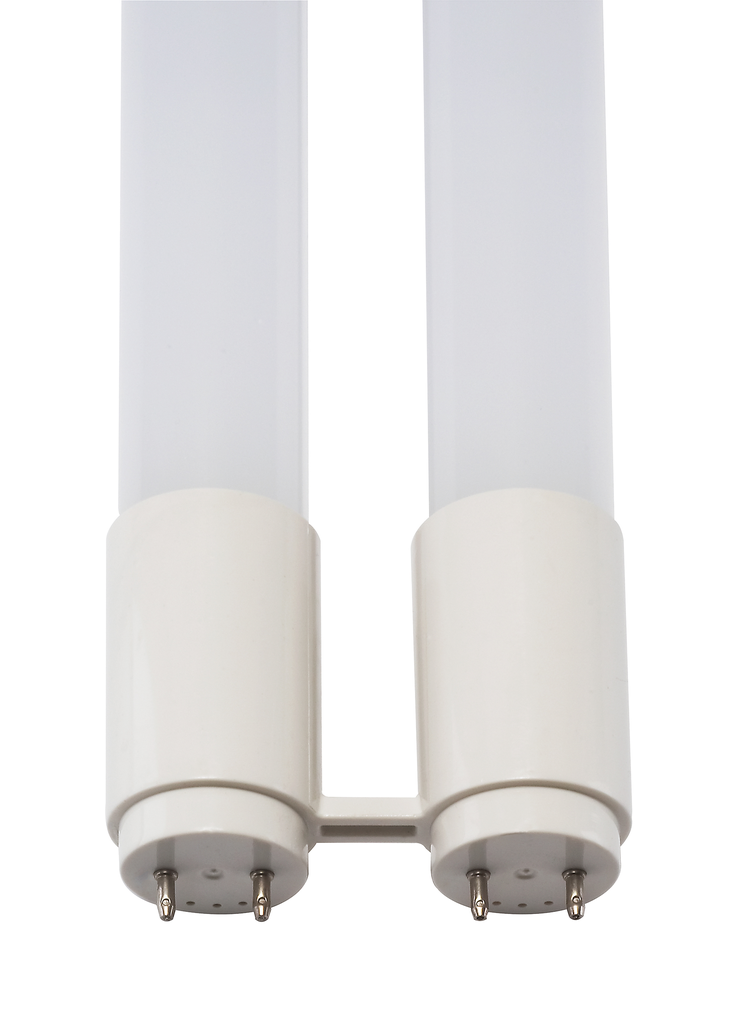

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1900 Lumens; 4000K; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring

13 Watt T8 U-Bend LED Tube Light – Lighting Solutions for Electrical Distributors

This 13 Watt T8 U-Bend LED tube light by Satco delivers efficient lighting with a 50,000-hour rated life. Designed for use in commercial and industrial applications, it supports both Type A (ballast dependent) and Type B (ballast bypass) wiring configurations, making it suitable for various retrofit and new installation projects. The medium bi-pin base and 22.5-inch length provide compatibility with standard T8 fixtures. Its cool white 4000K color temperature and 1900 lumens output ensure bright, consistent illumination. This product is ideal for electrical distributors and lighting solution providers focusing on wire and cable, and switchgear supply chains.

Specifications

• Manufacturer: Satco
• Manufacturer Part #: S18452
• Wattage: 13W
• Fluorescent Equivalent: 31W
• Voltage Range: 120V-277V
• Base Type: Medium Bi-Pin (G13)
• Shape: T8 U-Bend
• Length: 22.5 in.
• Finish: Frosted
• Lens Material: Plastic (PS)
• Housing Color: White
• Color Temperature: 4000K (Cool White)
• Lumens: 1900
• Beam Spread: 160°
• CRI: 80
• Dimmable: No
• Average Rated Life: 50,000 hours
• Operating Temperature: -13°F to +113°F (-25°C to +45°C)
• Power Factor: 0.9
• Operating Frequency: 50/60 Hz
• Ballast Requirements: Ballast required (Type A) or Ballast Bypass (Type B)
• Product Weight: 0.55 lbs
• Country of Origin: China
• Safety Listing: cULus Listed for Type A; cULus Classified for Type B
• Location Rating: Damp
• RoHS Compliant: Yes
• FCC Compliant: Yes
• DLC Approved: Yes

Features

• High-efficiency LED technology reduces energy consumption compared to traditional fluorescent tubes.
• Dual wiring capability supports both ballast dependent and ballast bypass installations.
• Frosted plastic lens provides uniform light diffusion and reduces glare.
• Long rated life minimizes maintenance and replacement costs.
• Compatible with standard T8 fixtures using medium bi-pin base.
• Suitable for damp locations, expanding application versatility.
• Non-dimmable design ensures stable performance in standard lighting controls.
• 5-year limited warranty based on 3 hours per day usage.

Downloads & Links

• Spec Sheet
