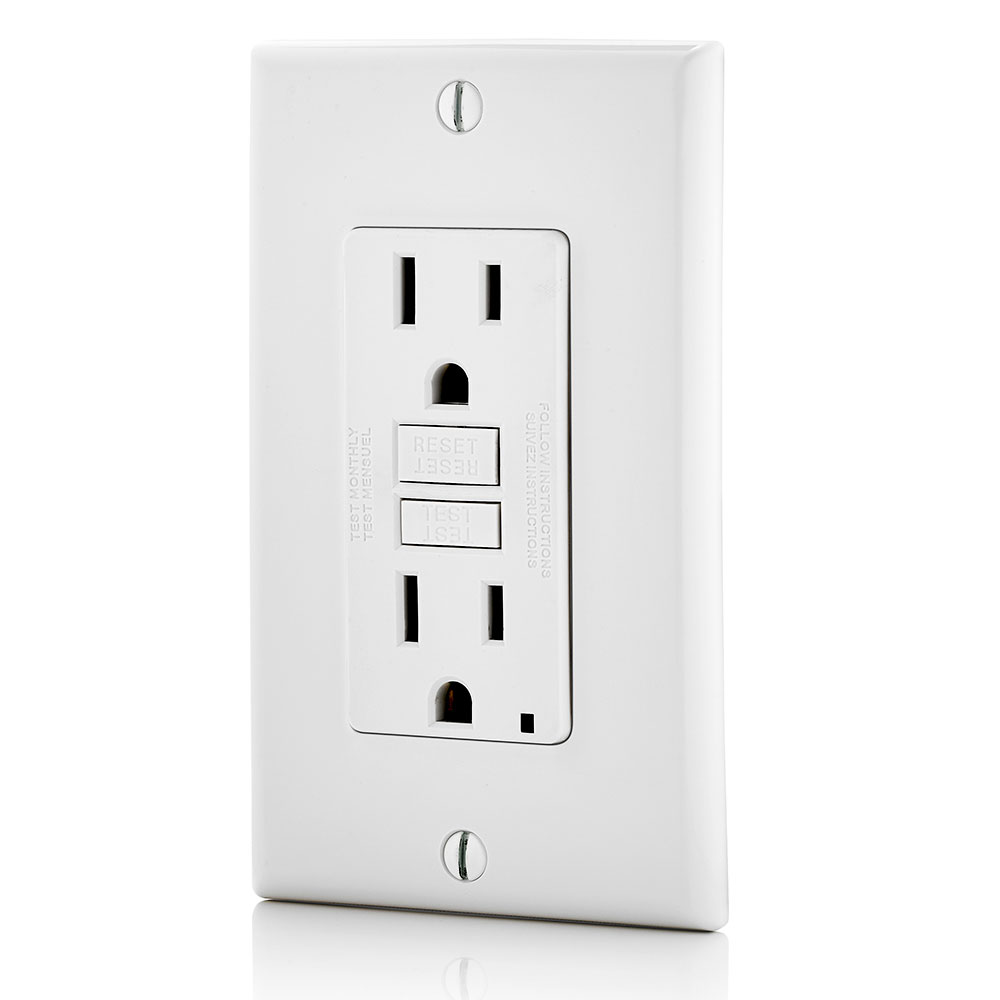

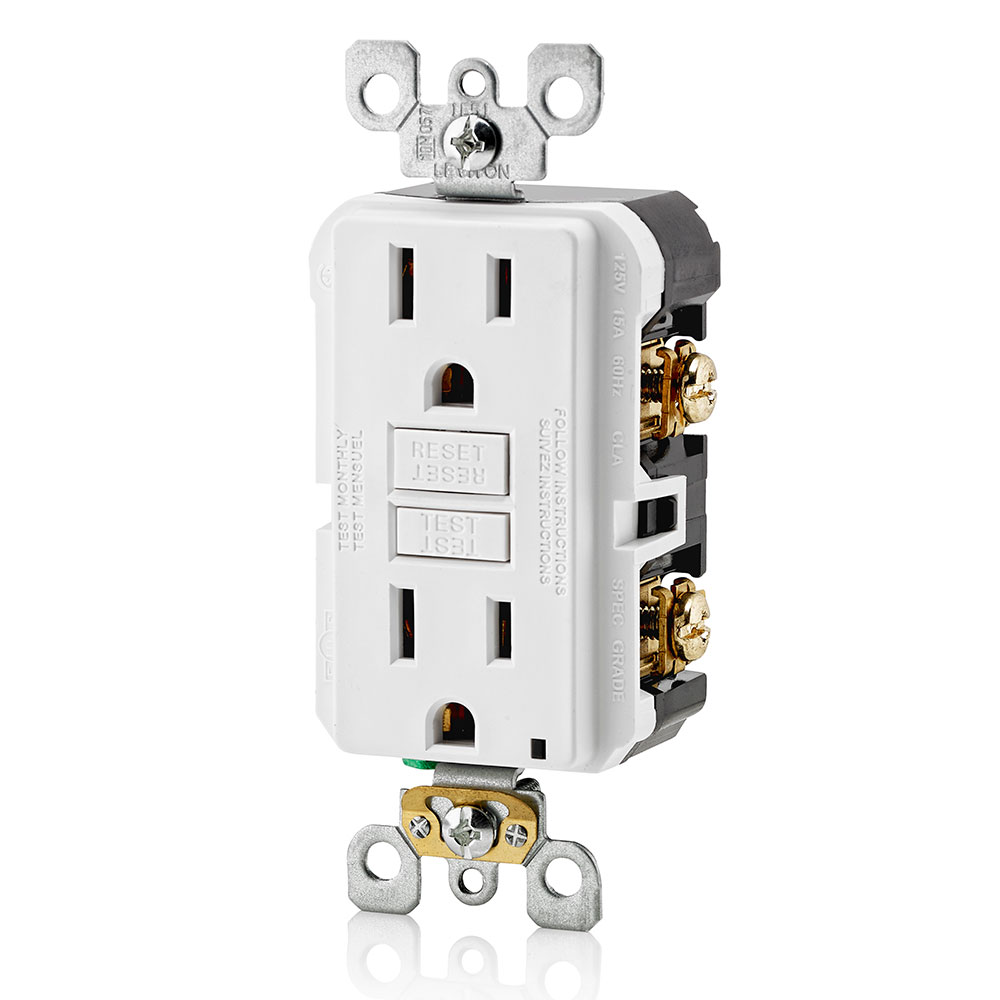

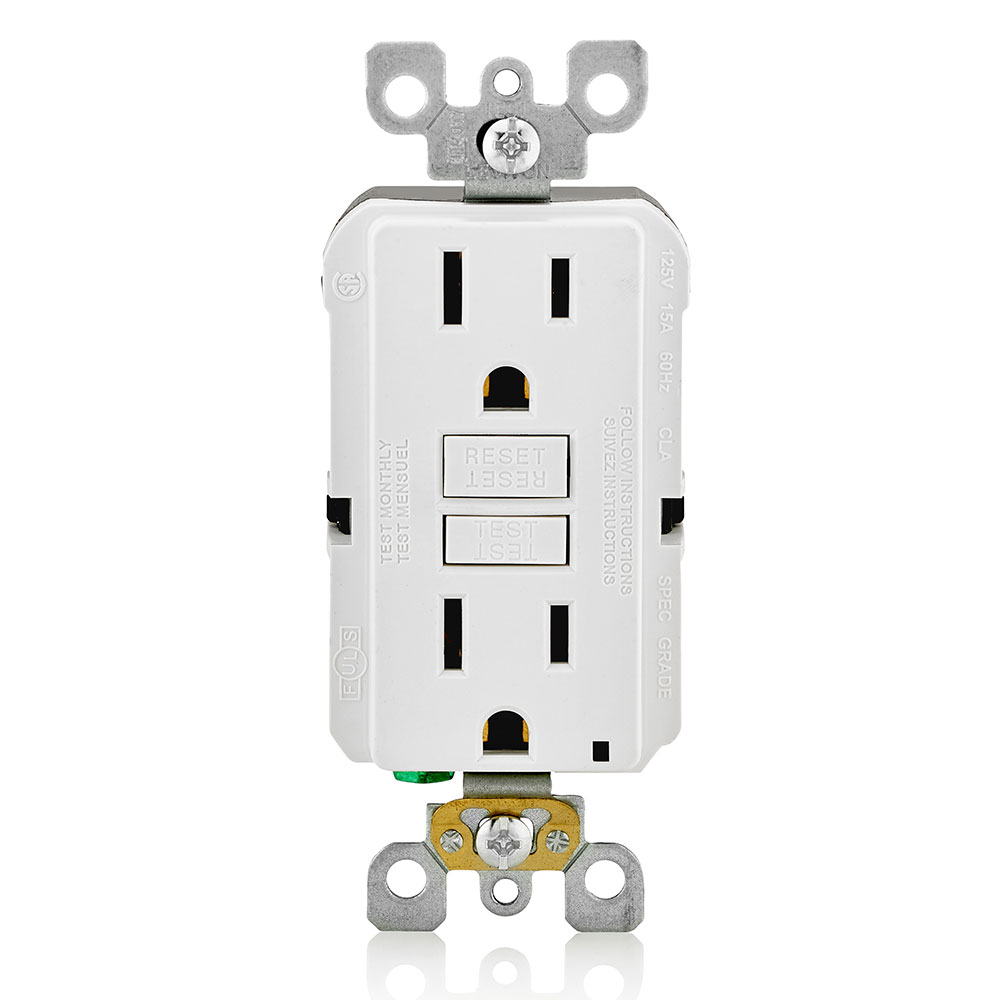

15 Amp, Self Test, Non Tamper-Resistant GFCI Outlet with LED Indicator Light

15 Amp, Self Test, Non Tamper-Resistant GFCI Outlet with LED Indicator Light

This commercial-grade 15 Amp, 125 Volt SmartlockPro Slim GFCI receptacle by Leviton provides advanced ground-fault circuit interruption with self-test functionality for continuous protection. Designed for use in residential, commercial, and public settings, it is suitable for installation in kitchens, bathrooms, garages, and other wet or damp locations. The device features a slim profile that occupies up to 25% less space in electrical boxes, facilitating easier installation by electrical distributors and contractors specializing in lighting solutions, wire and cable, and switchgear supply.

Specifications

• Amperage: 15 amperes
• Voltage: 125 Volts
• NEMA Configuration: 5-15R
• Grade: Commercial
• Body Material: Polycarbonate
• Face Material: Thermoplastic
• Color: White
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Self-Grounding
• Dielectric Voltage: 1250 volts
• Operating Temperature: -35 degrees Celsius to 66 degrees Celsius
• Manufacturer: Leviton
• Manufacturer Part Number: GFNT1-W
• Country of Origin: China
• Product Weight: 0.36 lbs

Features

• Self-Test functionality automatically monitors GFCI operation and performs internal tests to ensure continuous protection and compliance with the latest UL and CSA standards.
• LED indicator light provides intuitive visual status: green for normal operation, red for alert or testing, and no light indicating tripped state.
• Patented Reset Lockout prevents resetting if the device is damaged and unable to respond to ground faults.
• Slim profile with only 1.026 inches depth protrusion, saving up to 25% space in the wallbox for easier installation.
• Back and side wiring options with external back wire clamps for secure and visible wire connections.
• Brass self-grounding clips ensure reliable grounding in metal boxes.
• Non tamper-resistant design compliant with NEC standards for general commercial applications.
• Durable construction with impact-resistant thermoplastic face and polycarbonate body for long-lasting performance.
• Compatible with Decora-style wallplates and devices.
• Meets UL 943 Class A and UL 498 outlet standards, CSA C22.2-144.1 and 42 certifications, and Federal Specifications W-C-596G (except blank face models).
• Two-year limited product warranty by Leviton.

Downloads & Links

• CATSTD-GFNT1-000-D01
• G-8347B FR W
• SmartlockPro Self-Test Brochure
• Straight Blade Receptacle Catalog Q-1101H
• GFNT1 Instruction Sheet English
• SmartlockPro Self-Test Brochure Spanish
• product-cleaning-instructions
• GFCI-Product-Bulletin
• Leviton GFCI Trip Application Note
• GFNT1 Instruction Sheet Spanish
• GFCI-application-note-march-2024
• GFNT1 Instruction Sheet French
• CATSTD-GFNT1-000-D01
