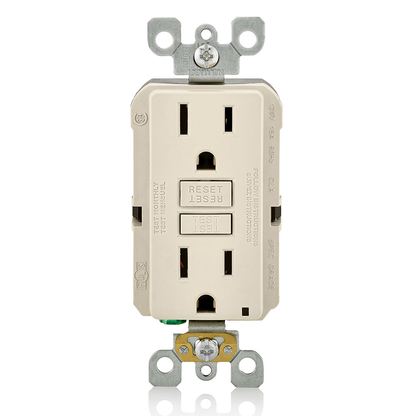

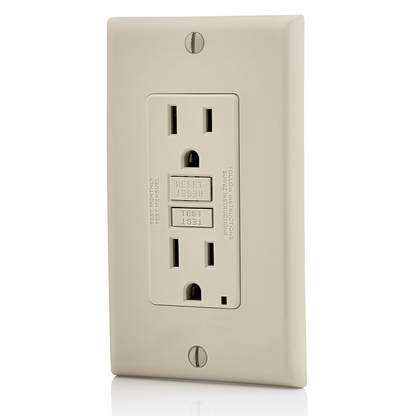

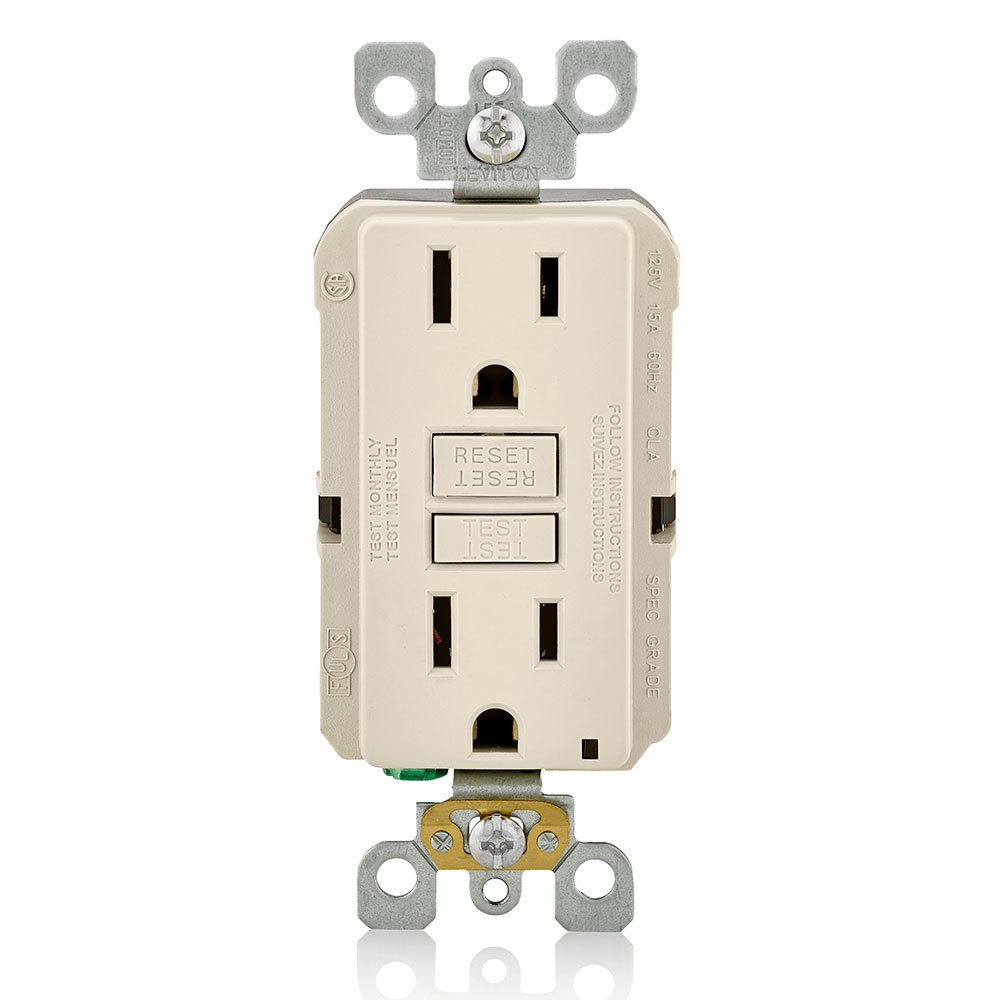

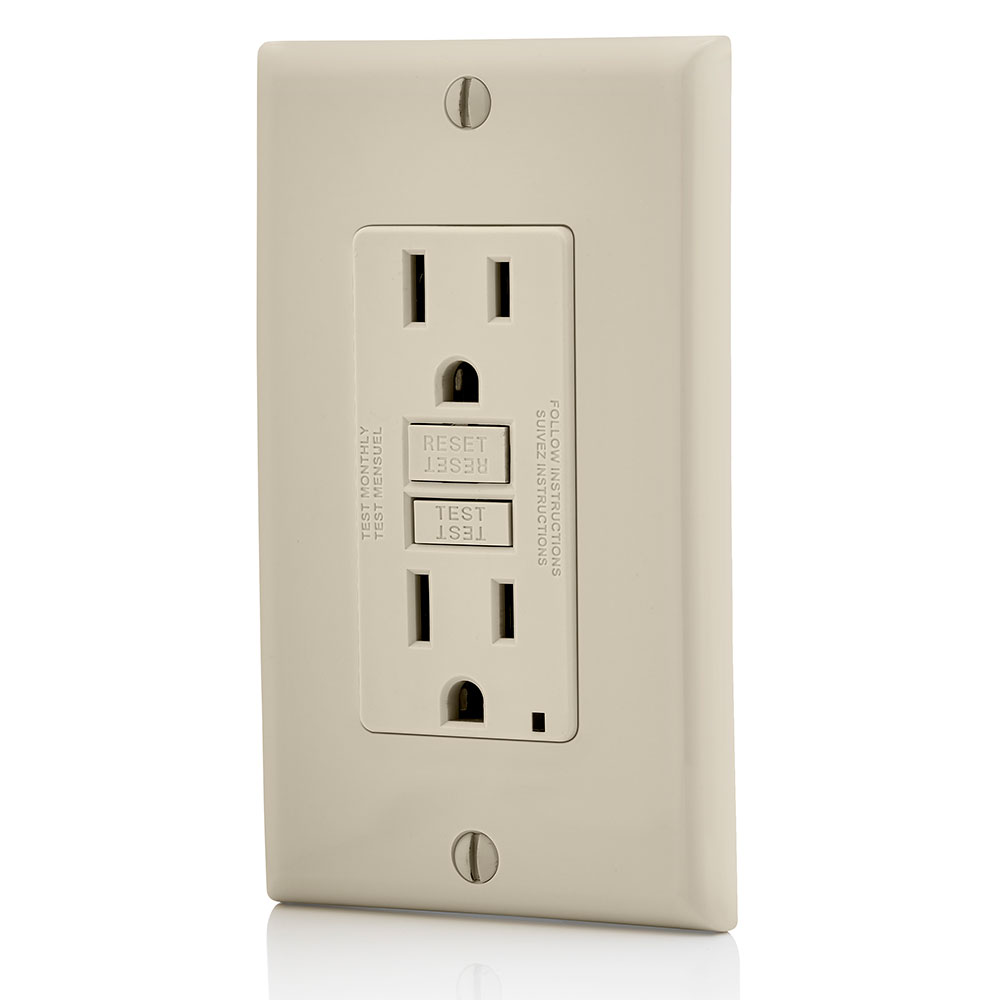

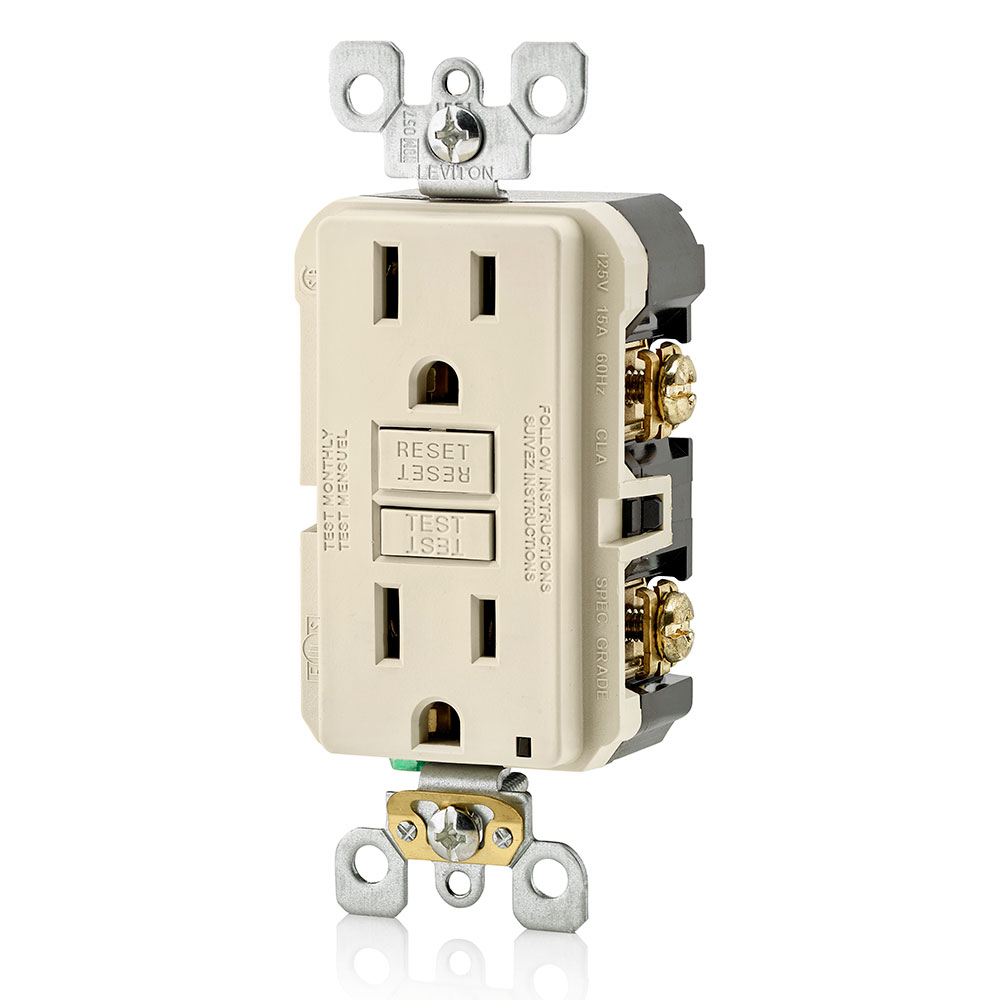

15 Amp, Self Test, Non Tamper-Resistant GFCI Outlet with LED Indicator Light

15 Amp Self Test Non Tamper-Resistant GFCI Outlet - Ground Fault Circuit Interrupter

This Leviton 15 Amp Self Test Non Tamper-Resistant GFCI Outlet with LED Indicator Light is designed for ground-fault protection in commercial and residential electrical applications. It offers reliable protection by automatically detecting ground faults and interrupting power to prevent electrical shock. Ideal for use in wet or damp locations such as kitchens, bathrooms, garages, and basements, this device supports both back and side wiring for flexible installation. As a product from a trusted electrical distributor and switchgear supplier, it integrates seamlessly into lighting solutions, wire and cable systems, and electrical infrastructure.

Specifications

• Name: 15 Amp, Self Test, Non Tamper-Resistant GFCI Outlet with LED Indicator Light
• Amperage: 15 amperes
• Voltage Rating: 125 Volt
• NEMA Configuration: 5-15R
• Grade: Commercial
• Color: Almond
• Body Material: Polycarbonate
• Face Material: Thermoplastic
• Number of Poles: 2
• Number of Wires: 3
• Dielectric Withstand Voltage: 1250 volts
• Grounding: Self-Grounding
• Operating Temperature: -35 degrees Celsius
• Product Weight: 3.63 lbs
• Country of Origin: China
• Manufacturer Part Number: GFNT1-T

Features

• Self-test functionality automatically monitors ground-fault protection and tests within 3 seconds of power-up
• Red and green LED indicator lights provide clear status feedback for power and protection
• Leviton patented reset lockout prevents reset if GFCI is damaged and cannot respond to a ground fault
• Tamper-resistant shutters meet NEC® 406.12 requirements by blocking access unless a proper plug is inserted
• Standard self-ground clip for grounding in metal box installations
• Compact design protrudes only 1.026 inches into wallbox, saving up to 25% space for easier installation
• Terminals withstand high torque to prevent wire pullout during installation
• Back and side wiring options with external clamp provide visual indication of proper wire seating
• Impact-resistant thermoplastic cover and polycarbonate body ensure durability
• Patented bridge contact design prevents power delivery if wired improperly (line-load reversed)
• Improved immunity to high-frequency noise reduces nuisance tripping
• Compatible with Decora® devices and wallplates
• Meets UL and CSA standards including UL Standard 943 Class A and CSA Standard C22.2
• Limited two-year product warranty
