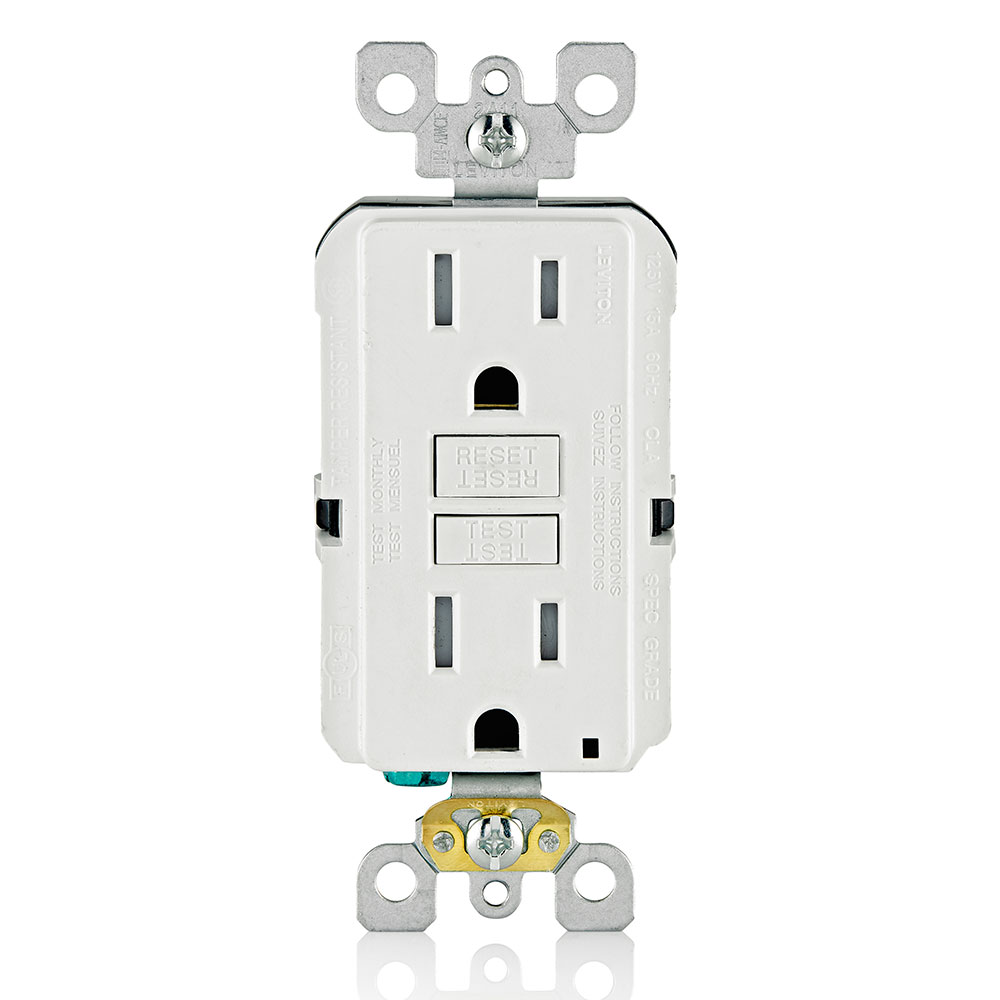

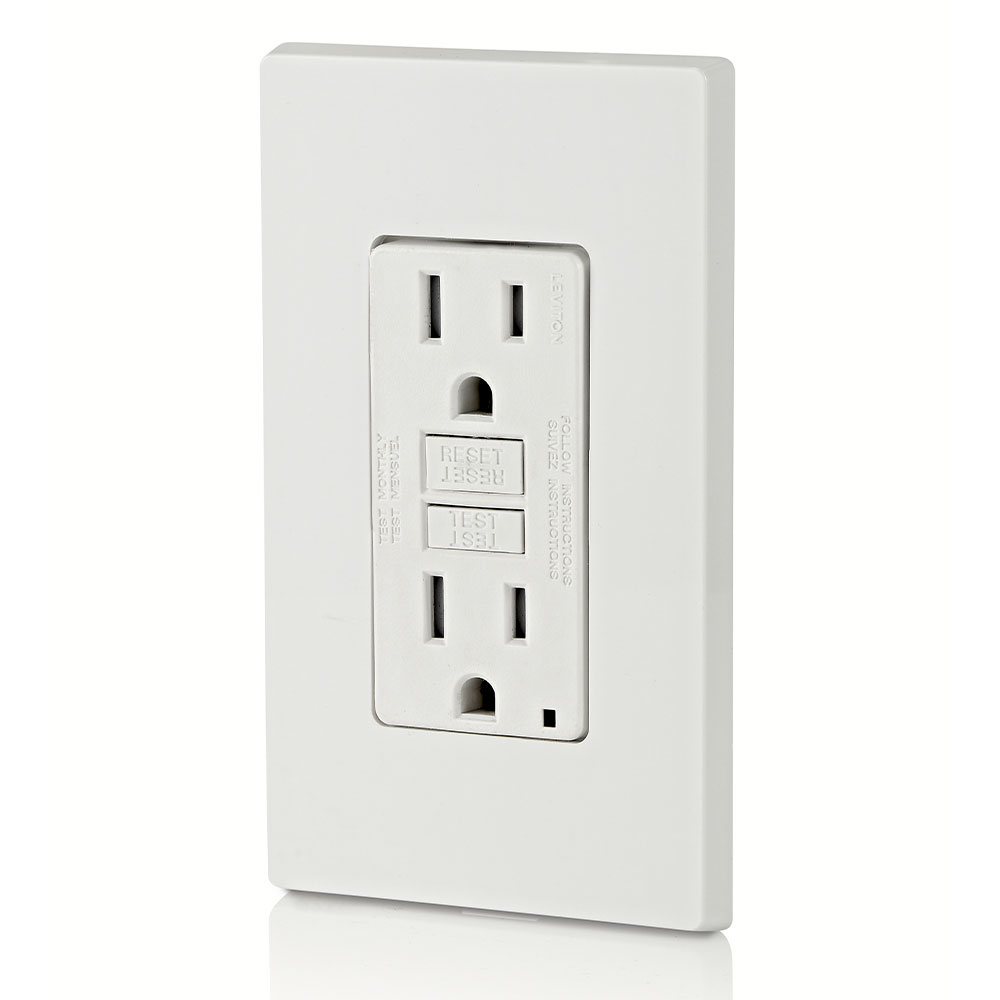

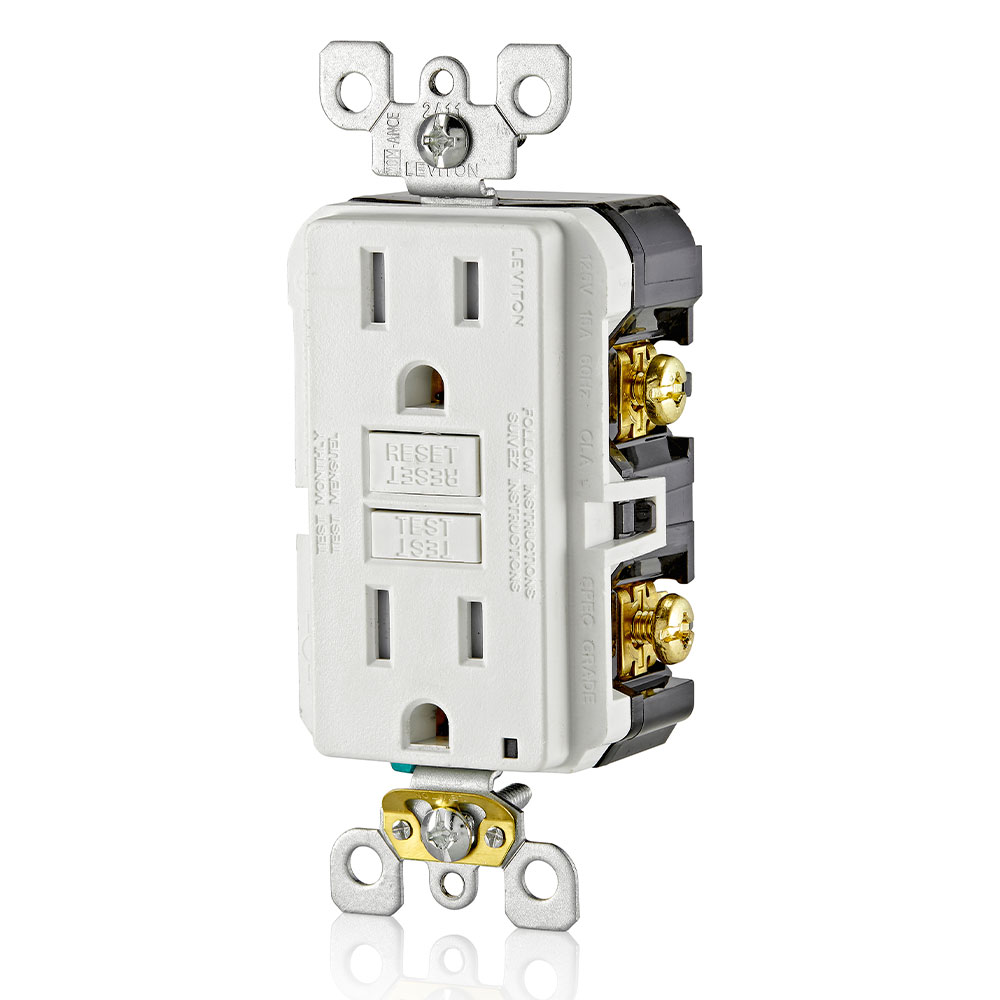

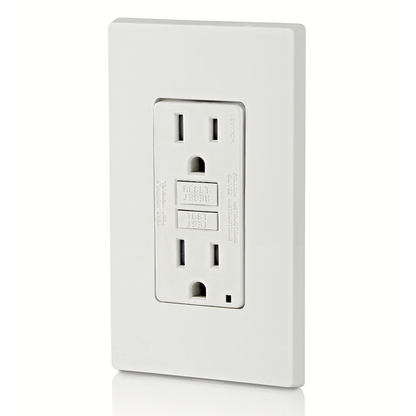

15 Amp, Self Test, Tamper-Resistant GFCI Outlet with LED Indicator Light

15 Amp Self Test Tamper-Resistant GFCI Outlet - SmartlockPro Electrical Distributor Solution

This 15 Amp, 125 Volt Self Test Tamper-Resistant GFCI Outlet with LED Indicator Light is designed for commercial-grade electrical applications including residential, educational facilities, airports, restaurants, lodging and retail malls, commercial offices, and public areas. It provides ground fault circuit interruption protection with SmartlockPro self-test technology, ensuring continuous safety by automatically testing the device and alerting users via LED indicators. The outlet supports both back and side wiring and includes a nylon wallplate, screws, and a self-grounding clip for easy installation. It is suitable for use by electrical distributors and switchgear suppliers seeking reliable, tamper-resistant wiring solutions.

Specifications

• Amperage: 15 amperes
• Voltage: 125 Volts
• NEMA Configuration: 5-15R
• Grade: Commercial
• Dimensions (HxWxD): 106.9 mm x 42.7 mm x 33.6 mm
• Material: Thermoplastic face, polycarbonate body, galvanized steel strap, plated steel grounding screw
• Mounting: Claw & Screw
• Connection Type: Screw
• Grounding: Self-Grounding
• Number of Poles: 2
• Number of Wires: 3
• Dielectric Strength: 1250 volts
• Operating Temperature: -35 degrees Celsius
• Flammability Class: Rated V-2 per UL 94
• Color: White
• Weight: 0.3600 lbs
• Manufacturer: Leviton
• Manufacturer Part Number: GFTR1-W
• Country of Origin: China

Features

• SmartlockPro self-test technology performs periodic automatic tests to verify GFCI functionality
• Tamper-resistant design compliant with NEC Article 406.12 for enhanced safety
• LED indicator light provides intuitive visual status of power, protection, and wiring
• Back and side wiring options for installation flexibility
• Self-grounding clip enhances grounding reliability in metal boxes
• Commercial-grade construction with durable thermoplastic and polycarbonate materials
• Includes nylon wallplate, screws, and self-grounding clip for complete installation
• Reset lockout feature prevents re-energizing if device is damaged or miswired
• Designed for use with copper or copper-clad wiring only
• Meets UL 943, CSA C22.2 standards, and Federal Specifications
