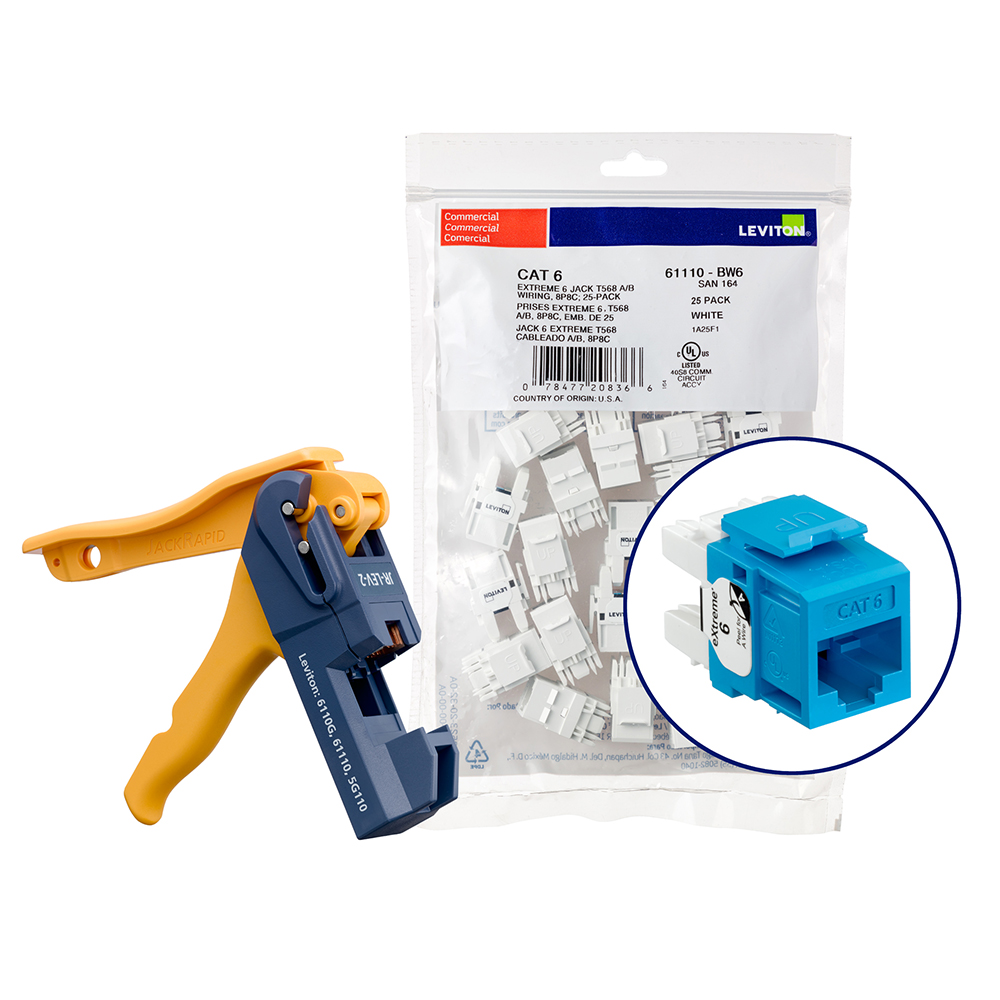

150 EXTREME™ Cat 6 QUICKPORT™ Jacks, Bulk QUICKPACK™, Blue, Kitted with JackRapid™ Tool

150 EXTREME™ Cat 6 QUICKPORT™ Jacks – Leviton Electrical Distributor

The 150 EXTREME™ Category 6 QUICKPORT™ Jack by Leviton is engineered for reliable voice, data, and internet connectivity within QUICKPORT compatible systems. Designed for electrical distributors and switchgear suppliers, this jack supports high-performance Category 6 UTP wiring applications and integrates seamlessly into structured cabling environments. It features patented Retention Force Technology™ for consistent performance and durability, making it suitable for commercial and enterprise network installations.

Specifications

• Product Weight: 3.6250 lbs
• Color: Blue
• Country of Origin: United States
• Compliance: ANSI/TIA-568.2-D (Cat 6), ISO/IEC 11801-1 (Class E), EN 50173-1 (Class E)
• UL Flammability Rating: 94V-0 fire-retardant plastic
• Termination: 110-type insulation displacement connectors (IDC)
• Configuration: 180-degree rear punch-down termination
• Operating Temperature: -10 ºC to +60 ºC (+14 ºF to +140 ºF)
• Storage Temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Humidity: 95% relative humidity, non-condensing
• Power over Ethernet Support: IEEE 802.3bt PoE Type 1, 2, 3, 4 (up to 100 watts)
• Certifications: c(UL)us Listed (UL 1863), UL 2043 Plenum Certified, ETL Verified

Features

• Patented Retention Force Technology™ protects contact tines from damage and ensures long system life
• Unique pair separation towers enable quicker and easier wire terminations with minimal untwisting
• Dual-layer T568B/T568A wiring label simplifies installation and supports universal wiring schemes
• Gas-tight IDC jacks prevent corrosion for reliable electrical transmission
• Capable of terminating 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
• Supports multiple re-terminations without performance degradation
• Snap-in style jack fits a variety of wallplates, outlets, and patch panels
• Available in bulk packages including a 150-pack with JACKRAPID™ Punchdown Tool for efficient installations
• Available in 13 ANSI/TIA-606-C compatible colors for easy color coding and organization
• Constructed with high-quality, copper-based alloy contacts plated with gold and nickel for low resistance and durability
