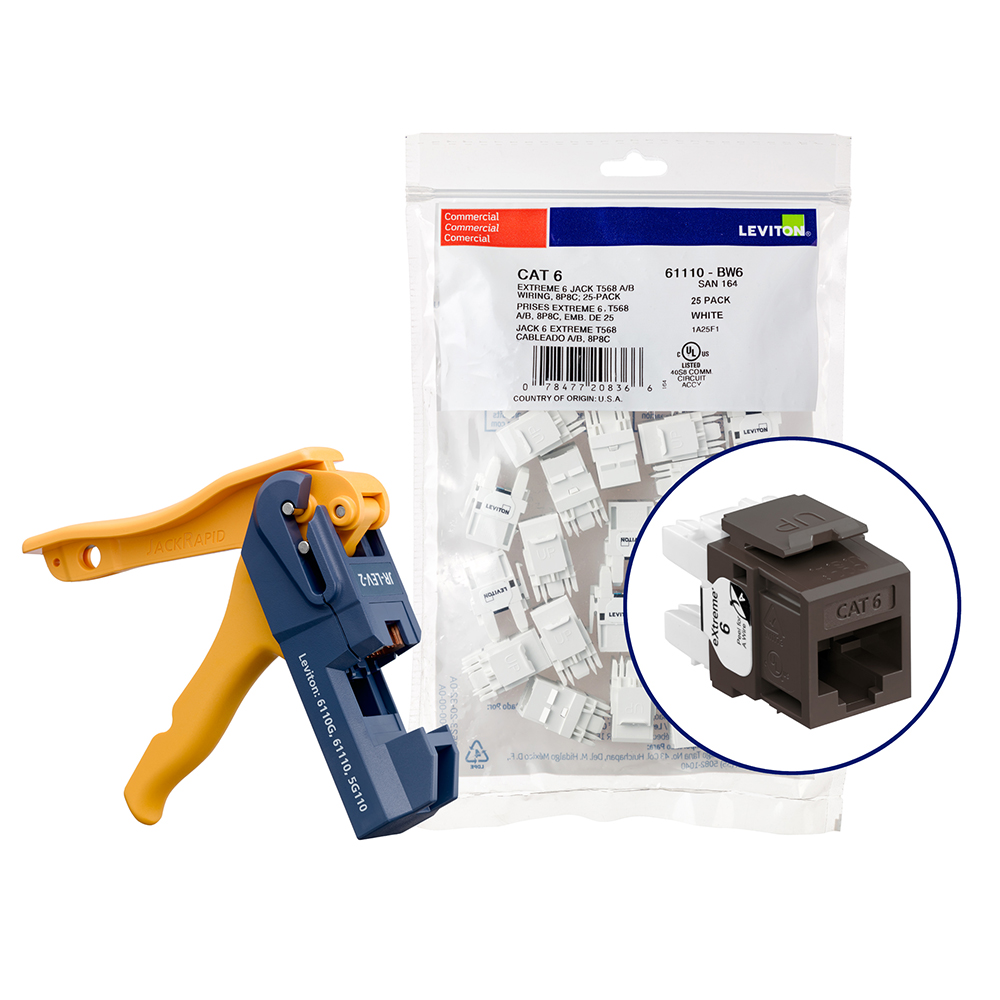

150 EXTREME™ Cat 6 QUICKPORT™ Jacks, Bulk QUICKPACK™, Brown, Kitted with JackRapid™ Tool

150 EXTREME™ Cat 6 QUICKPORT™ Jacks, Bulk QUICKPACK™, Brown, Kitted with JackRapid™ Tool - Category 6 Network Connectivity

The 150 EXTREME™ Cat 6 QUICKPORT™ Jacks are designed for use with all QUICKPORT compatible products, providing reliable Category 6 UTP connectivity for voice, data, and internet applications. Engineered with patented Retention Force Technology™, these jacks ensure consistent performance and durability over the life of the system. Their 180-degree rear termination configuration and unique pair separation towers facilitate quicker, easier, and more precise wiring terminations. Ideal for electrical distributors and switchgear suppliers, these jacks support high-performance networking installations with robust construction and compliance to industry standards.

Specifications

• Manufacturer Part #: 61110-JB6
• Color: Brown
• Product Weight: 3.6875 lbs
• Country of Origin: United States
• Made in USA: Yes
• Compliance: ANSI/TIA-568.2-D (Cat 6), ISO/IEC 11801-1 (Class E), EN 50173-1 (Class E), ANSI/TIA-1096-A, c(UL)us Listed (UL 1863), UL 2043 Plenum Certified
• Power over Ethernet Support: IEEE 802.3bt PoE Type 1, 2, 3, 4 (up to 100 watts max), Cisco UPOE, UPOE+ (90 watts max), Power over HDBaseT™ PoH (95 watts max)
• Material: High-impact, fire-retardant plastic rated UL 94V-0; copper-based alloy spring-wire contacts plated with gold and nickel
• Dimensions: 30.6 mm (1.21 in) length, 22.5 mm (0.88 in) height, 22.4 mm (0.88 in) width
• Operating Temperature: -10 °C to +60 °C (14 °F to 140 °F)
• Storage Temperature: -40 °C to +70 °C (-40 °F to 158 °F)
• Maximum Humidity: 95% relative humidity, non-condensing

Features

• Patented Retention Force Technology™ protects contact tines from damage and ensures system longevity
• Unique pair separation towers minimize untwisting and facilitate faster, easier terminations
• 180-degree rear punch-down termination for improved accessibility
• Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors, including 26 AWG stranded up to 5 times
• Capable of multiple re-terminations with gas-tight IDC jacks to prevent corrosion
• Dual-layer universal wiring label supports both T568A and T568B wiring schemes
• Snap-in style jack with high pullout force dust cap for secure connections
• Available in 13 ANSI/TIA-606-C compatible colors for organized color coding
• Packaged individually, in bulk packs of 25, or in bulk packs of 150 with JACKRAPID™ Punchdown Tool
• Select colors available in Sustainably Smart Packaging, eliminating single-use plastics and fully recyclable
• Compatible with any QUICKPORT housing, including surface-mount, flush-mount, modular furniture outlets, and field-configurable panels
• Supports voice, data, and video applications over UTP, coax, and fiber when used with other QUICKPORT modules
