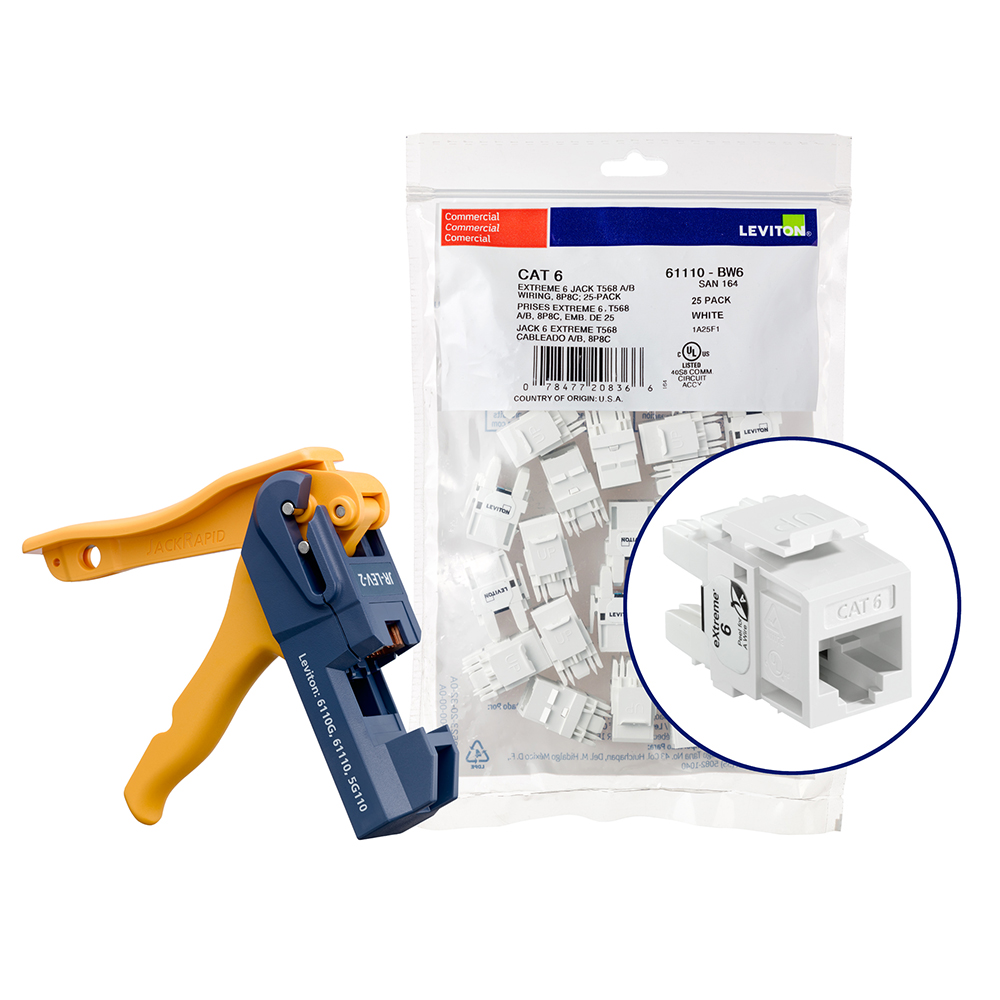

150 EXTREME™ Cat 6 QUICKPORT™ Jacks, Bulk QUICKPACK™, White, Kitted with JackRapid™ Tool

150 EXTREME™ Cat 6 QUICKPORT™ Jacks – Category 6 Connectivity

The 150 EXTREME™ Cat 6 QUICKPORT™ Jacks, white, kitted with JackRapid™ Tool, are designed for high-performance voice, data, fax, and internet applications. These jacks are compatible with all QUICKPORT products and provide reliable Category 6 UTP connectivity suitable for electrical distributors and switchgear suppliers requiring robust wiring and cabling solutions. Featuring patented Retention Force Technology™, they ensure consistent performance and durability throughout the system's lifespan. The rear-termination design with a 180-degree punch field configuration facilitates quick and efficient installations.

Specifications

• Product Weight: 3.62 lbs
• Color: White
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Leviton
• Manufacturer Part #: 61110-JW6
• Standards Compliance: ANSI/TIA-568.2-D (Cat 6), ISO/IEC 11801-1 (Class E), EN 50173-1 (Class E), ANSI/TIA-1096-A, c(UL)us Listed (UL 1863), UL 2043 Plenum Certified, IEEE 802.3bt PoE Type 1-4 (100 watts max)
• Materials: High-impact, fire-retardant plastic rated UL 94V-0; copper-based alloy spring-wire contacts plated with 50 microinches of gold over 100 microinches of nickel
• Dimensions: 30.6 mm (1.21 in) length x 22.5 mm (0.88 in) width x 22.4 mm (0.88 in) height
• Operating Temperature Range: -10 ºC to +60 ºC (+14 ºF to +140 ºF)
• Storage Temperature Range: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Humidity: 95% relative humidity, non-condensing

Features

• Patented Retention Force Technology™ protects tines from damage and enhances system longevity
• Unique pair separation towers enable quicker and easier terminations with minimal untwisting
• 180-degree rear termination configuration with punch field at the back
• Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors, including 26 AWG stranded up to 5 times
• Capable of multiple re-terminations
• Gas-tight IDC jacks prevent corrosion for reliable electrical transmission
• Dual-layer T568B/T568A wiring labels simplify punchdown and support universal wiring schemes
• Snap-on dust cap with high pullout force for secure protection
• Compatible with a variety of telecommunications wallplates, outlets, and field-configurable patch panels and patch blocks
• Supports IEEE 802.3 PoE Type 1-4 (up to 100 watts), Cisco UPOE/UPOE+, and Power over HDBaseT™ PoH
• Available in bulk QUICKPACK™ packaging of 150 jacks with JACKRAPID™ Punchdown Tool included
• Constructed from fire-retardant plastics meeting UL 94V-0 flammability rating

Downloads & Links

• 61110-RW6
• 61110-Rx6
• Leviton IST 5G110 61110 eXtreme Cat5e Cat6 Jacks
• Leviton 61110-xx6 eXtreme Cat 6 UTP Jack
