16 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 1850 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

16 Watt T5 LED Tube Light – Lighting Solutions for Electrical Distributors

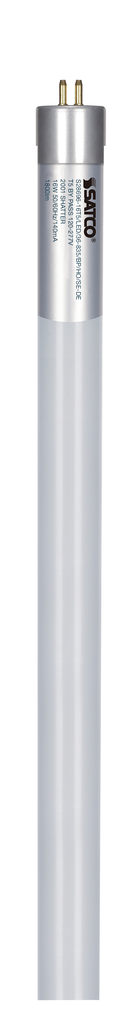

This 16 Watt T5 LED tube light by Satco is designed for efficient lighting applications requiring ballast bypass (Type B) wiring. Featuring a miniature bi-pin base and a frosted glass lens, it operates at 120-277 volts and delivers 1850 lumens of cool white light at 4000K color temperature. Suitable for use in commercial and industrial lighting systems, this LED tube supports single or double-ended wiring configurations and meets the needs of electrical distributors and switchgear suppliers looking for reliable wire and cable compatible lighting solutions.

Specifications

• Manufacturer: Satco
• Manufacturer Part #: S28697
• Wattage: 16W
• Voltage: 120-277V
• Base Type: Miniature Bi-Pin (G5 ANSI Base)
• Length: 36 in.
• Lumens: 1850 lumens
• Color Temperature: 4000 kelvins (Cool White)
• Beam Spread: 240¬∞
• Finish: Frosted glass lens
• Material: Glass
• Operating Temperature: -13¬∞F to +113¬∞F (-25¬∞C to +45¬∞C)
• Average Rated Life: 50,000 hours
• Amperage: 0.133-0.058 amperes
• IP Rating: IP20
• Housing Color: White
• Weight: 0.3 lb.
• Dimmable: No
• Ballast Type: Type B (Ballast Bypass)
• Safety Listing: cULus Classified
• Location Rating: Damp
• RoHS Compliant: Yes
• FCC Compliant: Yes
• NSF Approved: Yes

Features

• Linear LED technology providing energy-efficient lighting
• Compatible with ballast bypass wiring for retrofit applications
• Frosted glass lens reduces glare and softens light output
• Shatter-proof PET coating for enhanced durability and safety
• Non-dimmable design optimized for stable performance
• Wide beam spread of 240¬∞ for broad illumination coverage
• Long lifespan of 50,000 hours reduces maintenance and replacement costs
• Suitable for damp locations, expanding installation possibilities
• Meets multiple compliance standards ensuring quality and safety

Downloads & Links

• Spec Sheet
