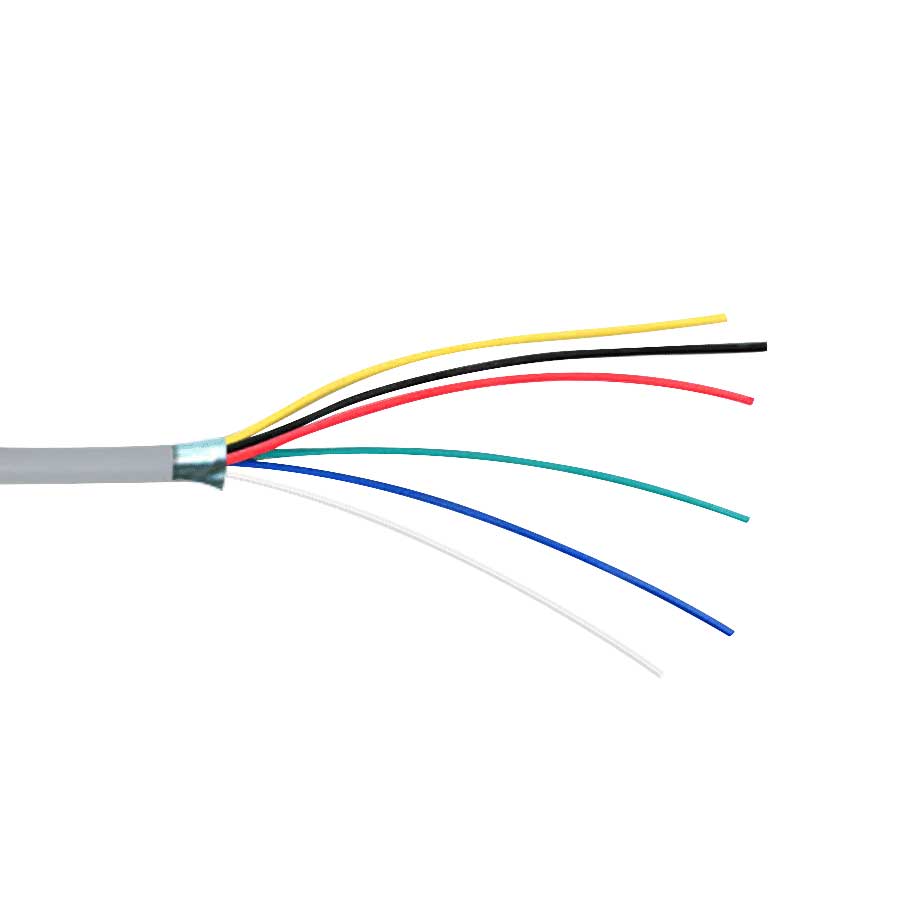

18/6SHP 6 Cond/7 Str BC, LS-PVC, AL Mylar, Drain

18/6SHP 6 Cond/7 Str BC Wire - Shielded Plenum Cable

This 18/6SHP cable is a shielded, plenum-rated wire designed for use in electrical distribution and lighting solutions requiring reliable signal integrity and fire safety compliance. It features six 18 AWG stranded copper conductors with a foil shield and drain wire, suitable for installation in plenum spaces where low smoke and fire resistance are critical. The cable is UL CMP certified, making it appropriate for commercial and industrial wiring applications where compliance with stringent fire codes is required.

Specifications

• Manufacturer Part #: 18/6SHP
• Conductor Material: Copper
• Number of Conductors: 6
• Conductor Size: 18 AWG stranded (7 strands of 0.0152 inches)
• Insulation Material: PVC
• Shield: Foil Shield 0.75 mil
• Drain Wire: 24 AWG 7 Strand STC Conductor
• Outer Jacket Material: PVC
• Cable Color: LS-PVC/White
• Installation Rating: UL CMP (Plenum)
• Flame Rating: Plenum (FT6)
• Maximum Voltage: 300V
• DC Resistance (25¬∞C): 6.9 Ohms per 1000 ft
• Impedance: 50 Ohms
• Mutual Capacitance: 49.5 pF/ft
• Conductor to Shield Capacitance: 91 pF/ft
• Velocity of Propagation: 60%
• Inductance: 1.5 mH/km
• Cabled Outer Diameter: 0.216 inches (5.486 mm)
• Insulation Thickness: 0.008 inches
• Jacket Thickness: 0.015 inches
• Product Weight: 0.0490 lbs/ft
• Country of Origin: Various

Features

• Shielded design reduces electromagnetic interference for improved signal quality.
• Plenum-rated cable suitable for use in air-handling spaces according to UL CMP standards.
• Foil shield with drain wire facilitates easy grounding and EMI protection.
• White LS-PVC jacket provides durability and complies with fire safety requirements.
• Stranded copper conductors ensure flexibility and reliable electrical conductivity.
• Sequential footage marking for easy measurement and installation.
