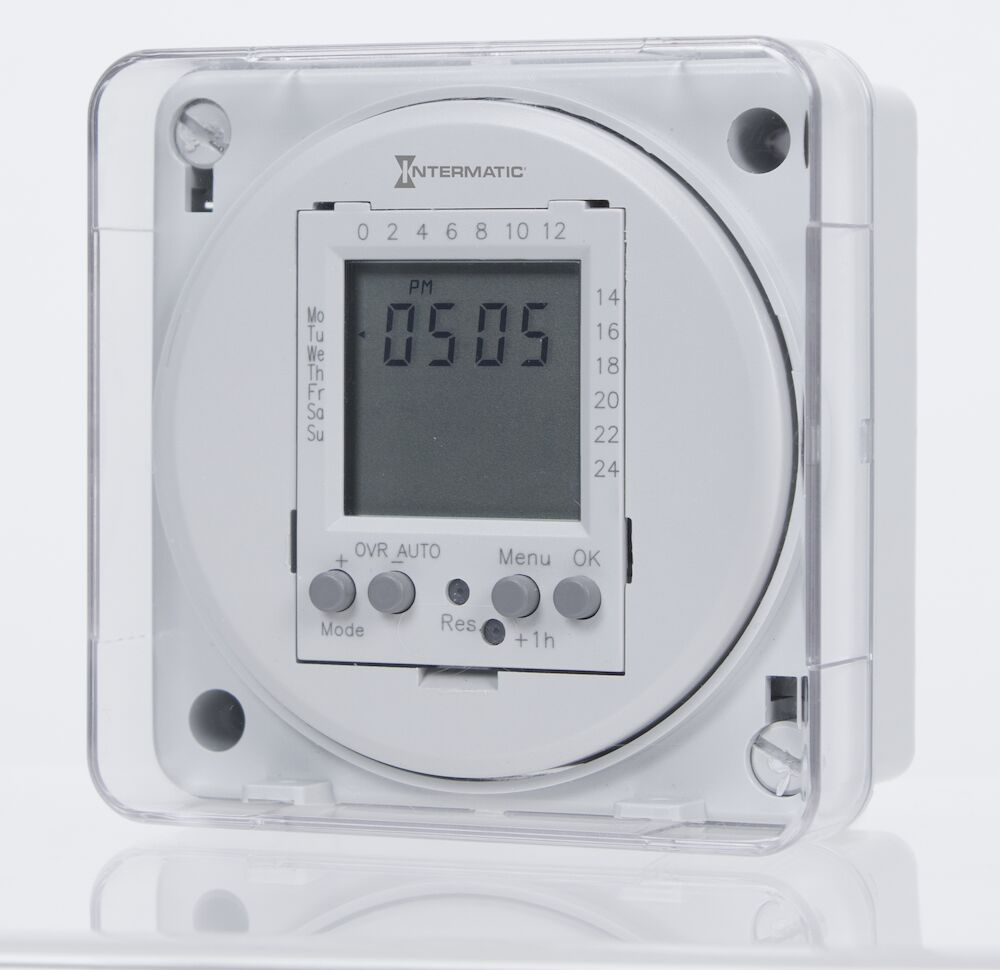

The FM1D20 Series Electronic Time Controls are designed for ventilating, heating, cooling, lighting, and other electrical loads in commercial and industrial applications. These programmable one-channel time switches support 24-hour or 7-day schedules and are suitable for panel, surface, flush, or DIN rail mounting. Their enclosed plastic housing with terminal and dust covers facilitates installation and hard wiring. Ideal for electrical distributors and lighting solutions providers, this device ensures precise control of electrical loads with reliability and flexibility.

Specifications

• Manufacturer: Intermatic
• Manufacturer Part #: FM1D20E-24
• Number of Circuits: 1
• Switch Rating: SPDT relay
• Contact Rating (N.O.): 16A Resistive, 277 VAC; 1/2 HP, 120 VAC; 1 HP, 240 VAC; 12A Ballast 120 VAC; 8A Ballast 240 VAC; 720 VA, 240 VAC Pilot Duty; 360 VA, 120 VAC Pilot Duty; 600W Tungsten 120 VAC; 1000W Tungsten 240 VAC
• Contact Rating (N.C.): 16A, 277 VAC Resistive; 8A, 24 VDC Pilot Duty; 360 VA, 120 VAC Pilot Duty
• Operating Temperature Range: -13°F to 131°F (-25°C to 55°C) with limited display function at -13°F
• Power Consumption: 4 VA
• Dimensions: Height 2.83 in, Depth 2.06 in
• Product Weight: 0.5290 lbs
• Country of Origin: China
• Supply Voltage: 24 VDC (operates on AC or DC)
• Programming: 20 setpoint programs with 10 ON and 10 OFF setpoints; 3 preset adjustable block programs
• Display: Large LCD with AM/PM or 24-hour format and load status indication
• Battery Backup: Reserve carryover of 7 years (non-replaceable, non-rechargeable battery)
• Wiring Connections: 1/4" quick connect terminals

Features

• Programmable for 24-hour or 7-day schedules
• 20 setpoint programs and 3 preset adjustable block programs for flexible scheduling
• Easy-to-follow menu-driven programming with manual override and status indication
• Flush and surface/DIN rail mounting options with enclosed plastic housing including terminal and dust covers
• Battery backup ensures program retention for up to 7 years
• Daylight Saving Time adjustment with dedicated button
• Suitable for controlling pumps, fans, heaters, HVAC circuits, lighting, and machinery in commercial, industrial, and agricultural environments
