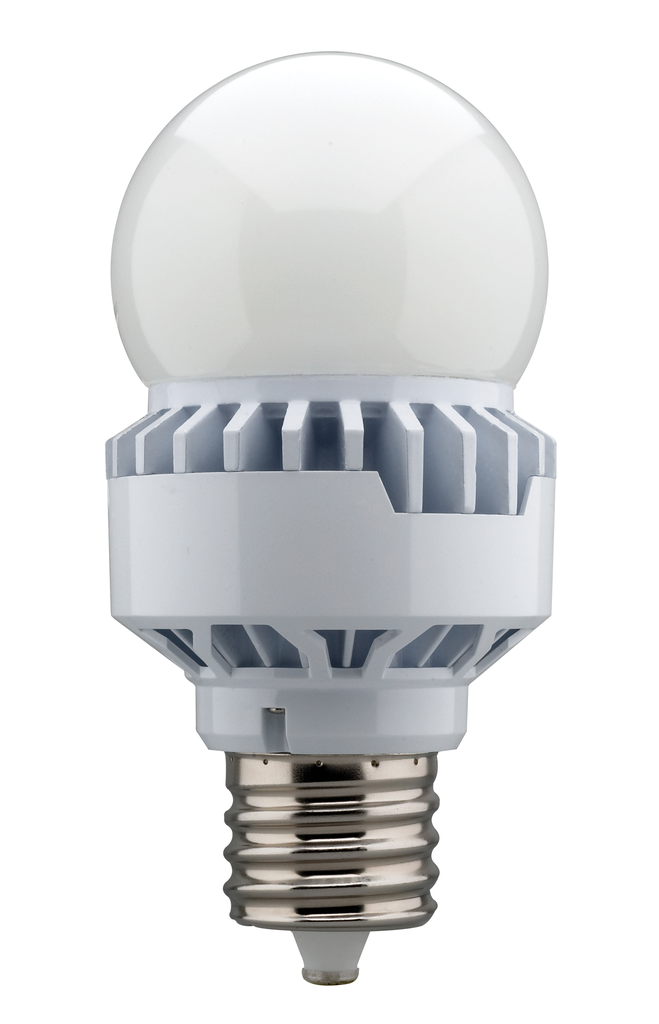

25 Watt LED A23 Hi-Pro HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt

25 Watt LED A23 Hi-Pro HID Replacement Lighting Solutions

This 25 Watt LED A23 lamp by Satco is designed as a high-performance HID replacement with a mogul extended base, suitable for use in various lighting applications requiring efficient, long-lasting illumination. It operates on 120-277 volts and provides natural light with a correlated color temperature of 5000 kelvins. Ideal for electrical distributors and lighting solution providers, this lamp delivers 3525 lumens output and is rated for enclosed fixtures, supporting reliable performance in damp locations.

Specifications

• Manufacturer Part #: S13106
• Watts: 25W
• Incandescent Equivalent: 200 watts
• HID Equivalent: 100 watts
• Voltage: 120-277 Volt
• Base: Mogul Extended (EX39)
• Shape: A23
• Finish: Frosted
• Lumens: 3525 lumens
• Beam Spread: 280°
• Color Temperature: 5000 kelvins (Natural Light)
• CRI: 80
• Average Rated Life: 50,000 hours
• Dimmable: No
• Operating Temperature: -13°F to +113°F
• Material: Plastic housing and lens
• Housing Color: White
• Lens Color: Frost
• Lens Material: Plastic
• Power Factor: >0.9
• Operating Frequency: 50/60 Hz
• Minimum Compartment Size: Diameter 6 in., Height 8.5 in.
• Weight: 1.1 lb
• Rated for Enclosed Fixture: Yes
• Safety Listing: cULus
• Location Rating: Damp
• DLC Approved: Yes (DLC ID: PL1UH5GUNR0A)
• RoHS Compliant: Yes
• FCC Compliant: Yes

Features

• High lumen output for efficient lighting replacement of HID and incandescent lamps
• Long rated life of 50,000 hours reduces maintenance and replacement frequency
• Frosted finish and lens provide diffused natural light suitable for various applications
• Compatible with enclosed fixtures and rated for damp locations
• Wide operating voltage range (120-277V) supports flexible installation
• Non-dimmable design ensures stable performance under standard electrical conditions
• Power factor greater than 0.9 improves energy efficiency
• White housing with plastic construction for durability and heat dissipation
• 5 Year Limited Warranty – Hi-Pro

Downloads & Links

• Spec Sheet
