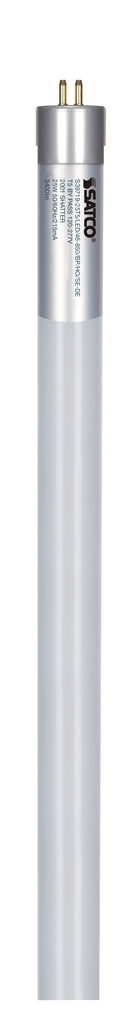

25 Watt T5 LED; Miniature bi-pin base; 5000K; 50000 Average rated hours; 3400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

25 Watt T5 LED Tube Light – Energy Efficient Lighting Solutions

This 25 Watt T5 LED tube light by Satco is designed for use in commercial and industrial lighting applications. It features a miniature bi-pin base and operates on 120-277 volts with Type B ballast bypass wiring, suitable for single or double-ended wiring configurations. This LED tube provides a natural light color temperature of 5000K and delivers 3400 lumens, making it an efficient alternative to traditional fluorescent tubes. Its robust glass construction and frosted finish ensure durability and quality light diffusion. Ideal for electrical distributors and lighting solutions providers seeking reliable wire and cable compatible LED lighting products.

Specifications

• Manufacturer Part #: S39719
• Wattage: 25W
• Voltage: 120-277V
• Base: Miniature Bi-Pin (G5)
• Nominal Length: 48 In.
• Lumens: 3400 lumens
• Color Temperature: 5000 kelvins (Natural Light)
• Beam Spread: 240¬∞
• Finish: Frosted
• Material: Glass
• Lens Material: Glass
• Housing Color: White
• Average Rated Life: 50,000 hours
• Operating Temperature: -13¬∞F to +113¬∞F (-25¬∞C to +45¬∞C)
• Amperage: 0.208-0.090 amperes
• IP Rating: IP20
• Weight: 0.4 lb
• Dimmable: No
• Safety Listing: cULus Classified
• Location Rating: Damp
• DLC Approved: Yes (DLC ID: PLYF62HN8A9I)
• RoHS Compliant: Yes
• FCC Compliant: Yes
• NSF Approved: Yes

Features

• Ballast Bypass design for direct wiring, compatible with single or double-ended wiring
• High lumen output of 3400 lumens for bright, efficient illumination
• Long lifespan rated at 50,000 hours reduces maintenance and replacement costs
• Frosted glass lens ensures even light distribution and reduces glare
• PET coated shatter-proof design enhances safety during handling and installation
• Wide operating temperature range suitable for various commercial environments
• Energy-efficient LED technology with power factor of 0.9 and 20% THD
• Compliant with multiple safety and environmental standards for professional use

Downloads & Links

• Spec Sheet
