25DTC Series Blank Steel Poles

25DTC Series Blank Steel Poles – Vertical Wire and Cable Management Solution

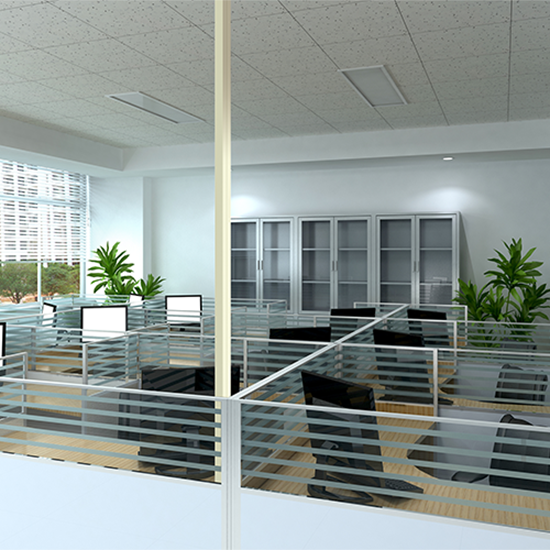

The 25DTC Series Blank Steel Poles from Wiremold provide a versatile and efficient solution for routing power, data, and A/V wiring in open commercial office spaces, schools, labs, and retail environments. Designed for away-from-the-wall applications, these vertical drop poles enable clean and organized delivery of electrical services to desks, workstations, or modular furniture. As a trusted product in the electrical distributor and wire and cable management market, these poles offer dual-channel flexibility to separate or combine service feeds, supporting both single and dual service configurations. Manufactured in the USA by Wiremold, a recognized switchgear supplier, the poles are available in multiple colors and lengths to suit diverse lighting and electrical needs.

Specifications

• Product Name: 25DTC Series Blank Steel Poles
• Manufacturer: Wiremold
• Manufacturer Part #: 25DTC-4
• Material: Steel with enamel finish
• Height: 125.98 in (10' 5")
• Width: 2.312 in
• Country of Origin: United States
• Made in USA: Yes
• Weight: 19.5 lbs
• Color Options: Ivory, White (WH), Designer Gray (DG), Black (BK)
• Nominal Material Thickness: 0.040" (1.0mm)
• UL Compliance: cULus Listed, Multioutlet Assemblies (File E15191, E178348)
• NEC Compliance: Meets Articles 380 & 386

Features

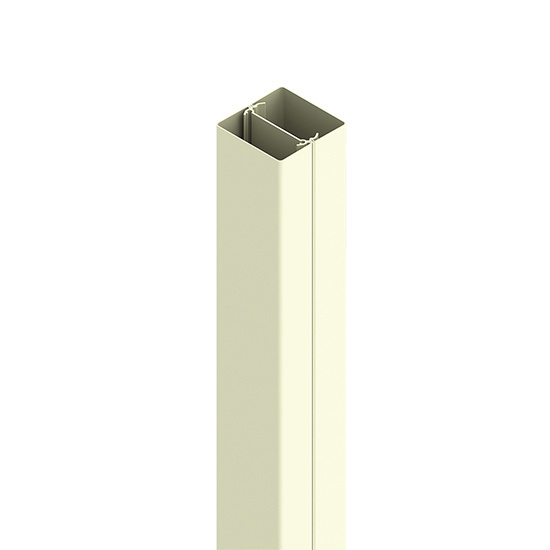

• Dual-channel design allows for single or dual service feeds on opposite sides of the pole.
• Blank poles furnished unwired without outlets, ideal for feeding modular furniture or custom wiring needs.

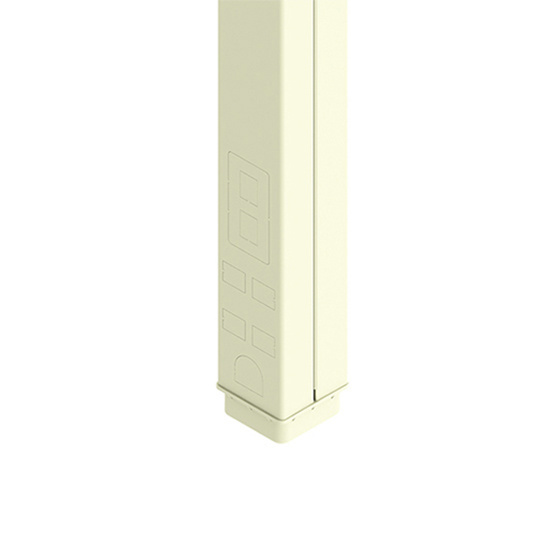

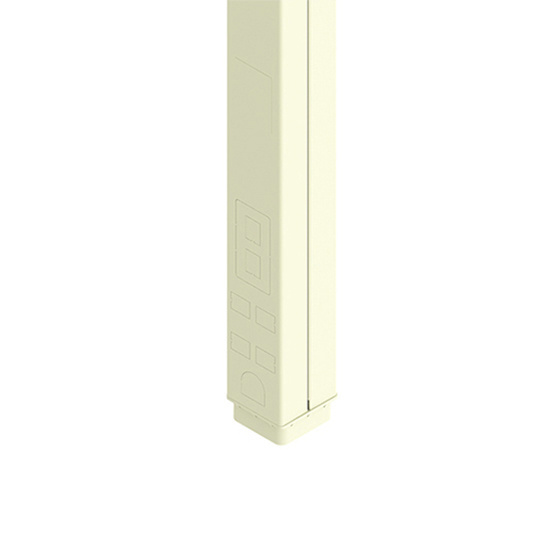

• Removable 8" (203mm) cover at the top for easy power wiring connections with knockouts for RJ11/RJ45 and modular furniture communication connectors.
• Mounting hardware, entrance end plate, and ceiling trim plates included for complete installation.
• Field modifiable and customizable for color, height, and device configurations.
• Supports specialized electrical circuits such as dedicated/isolated ground.
• Compatible with a wide range of commercially available devices for power and communications.
• Available in standard lengths of 10' 5" (3.175m), 12' 5" (3.78m), and 15' 5" (4.7m), with extender options for additional height.
• Promotes sustainable design by enabling open space wiring, increasing natural daylight use and reducing energy consumption.

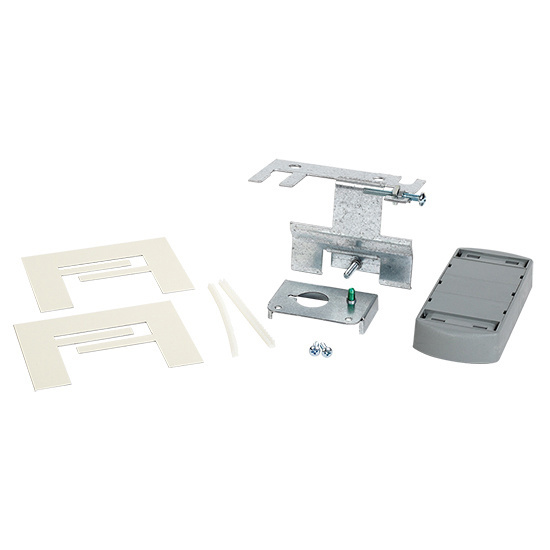

• Accessory packs included: feed fittings, ceiling trim plates, T-Bar mounting hardware, and carpet/floor grippers.

Downloads & Links

• Spec Sheet
• Tele-Power Poles Cutsheet
• Unequipped Tele-Power Poles PEP
• Tele-Power Poles Installation Instructions
• Tele-Power Poles Brochure
• Tele-Power Poles
• 25DTC-4 CAD
