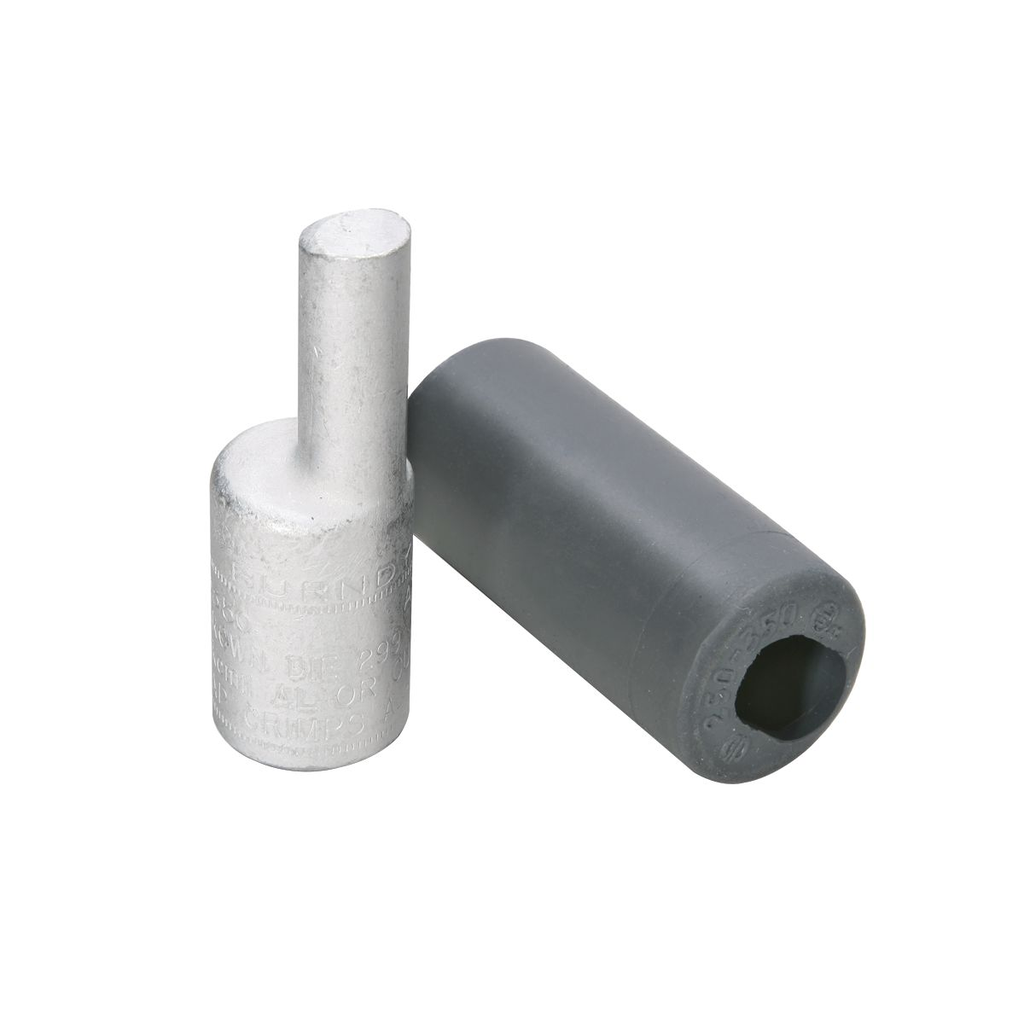

3/0 AWG, Aluminum, Termination, 0.37 Inch Pin Dia, 1.22 Inch Pin Length, AL9CU

3/0 AWG Aluminum Termination Pin Adapter for Electrical Wire Termination

This aluminum compression pin adapter is designed for wire termination applications, providing reliable connections for electrical distributors and lighting solutions. It supports both aluminum and copper conductors, facilitating efficient connectivity in wire and cable installations. The product features an offset pin design and is suitable for use in switchgear and other electrical equipment requiring compact and corrosion-resistant connectors.

Specifications

• Product Name: 3/0 AWG, Aluminum, Termination, 0.37 Inch Pin Dia, 1.22 Inch Pin Length, AL9CU
• Application: Wire Termination
• Material: Aluminum
• Conductor Material: Aluminum / Copper
• Conductor Type: CODE/FLEX
• Connection Type: Offset Pin
• Color: White
• Finish: Tin-Plated
• Insulation: Yes
• Insulation Type: Rubber
• Width: 0.85 in
• Pin Diameter: 0.37 in
• Pin Length: 1.22 in
• Overall Length: 2.80 in (71 mm)
• Voltage Rating: 35 kV (35,000 V)
• Product Weight: 0.1200 lb
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Burndy
• Manufacturer Part #: AYPO3/0
• Certification: CSA Approved, UL Listed

Features

• All-aluminum electro-tin plated design eliminates possible bi-metallic corrosion
• Shortest connector length design permits installation in equipment with limited working space
• Solid electro-tin plated aluminum plug ensures reliable electrical connection
• Equivalent cross-sectional area as current-carrying copper wire allows use of larger aluminum wire
• Offset pin design maximizes space and eliminates interference between conductors and equipment
• Electro-tin plating resists corrosion
• Factory pre-filled with PENETROX oxide inhibiting compound for air-tight connection
• EPDM rubber covers supplied, rated for 600V, eliminating need for taping
• Only 5 die sets required to install the complete line from #6 to 750 kcmil, reducing inventory needs
• Supplied in plastic convenience pack to keep connector and cover free of foreign material until use
• Connectors clearly marked with catalog number, wire size, and color-coded die index for easy identification
