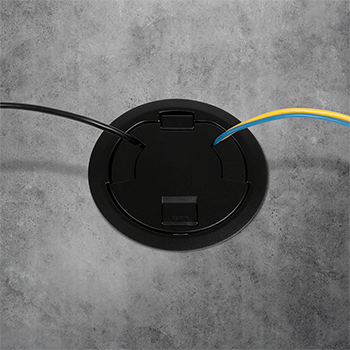

3-Hour Fire Classified 6" Recessed Prewired A/V Surface Style Poke-Thru Assembly

3-Hour Fire Classified 6" Recessed Prewired A/V Surface Style Poke-Thru Assembly - Electrical Distributor Solutions

The Wiremold 3-Hour Fire Classified Evolution Series 6" Recessed Prewired A/V Surface Style Poke-Thru Assembly is designed for retrofit and new construction applications requiring a 3-hour fire-rated floor. This device provides recessed access to power, communications, and audio/video services below floor level, offering maximum device protection and longevity. Ideal for kiosks, meeting rooms, training rooms, classrooms, healthcare facilities, and commercial buildings with open-space architecture, it accommodates carpet, tile, wood, laminate, and concrete floor coverings.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 6ATC2PAVBK3H
• Color: Black
• Country of Origin: United States
• Made in USA: Yes
• Order Minimum: 1
• Product Weight: 10.25 lbs
• Fire Rating: UL Classified for up to 3-hour rated floors
• Recess Depth: 5" (127mm) below floor surface level
• Diameter Hole: 6" (152mm) to 6 1/8" (155mm)

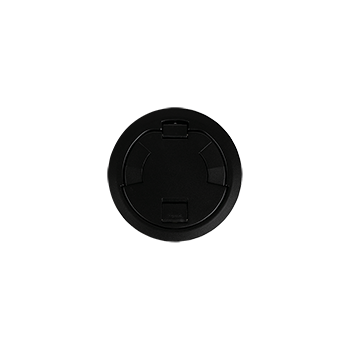

• Cover Style: Surface style aluminum cover designed to sit on top of finished floor surfaces
• Cover Finishes: Available in six finishes including powder coat black, gray, bronze, brushed aluminum, satin brass plated, and satin nickel plated
• Included Devices: One (1) prewired duplex receptacle, various low voltage and AV device plates
• Dimensions: Height 17 1/4" (432mm), Width 7 1/4" (184mm), Recess Depth 4 7/8" (124mm)
• UPC: 786564103660

Features

• 3-hour fire classified for U.S. and Canadian safety standards, maintaining fire classification of the floor

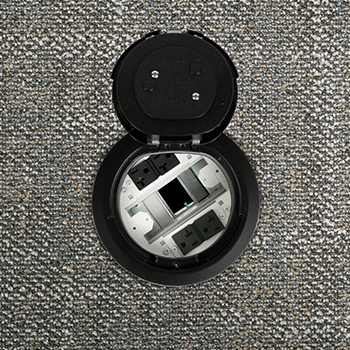

• Recessed compartments for power, communications, and A/V devices recessed 5" (127mm) below floor level for maximum protection
• Die-cast aluminum cover assemblies for durability and aesthetic versatility
• Compatible with Legrand AVIP devices and most A/V manufacturer 1-gang decorator style devices
• Surface style cover designed for finished floor surfaces including carpet, tile, wood, polished concrete, and terrazzo
• Auto-close egress doors that lock open and close tightly around cables to minimize opening size and reduce tripping hazards
• ‚ÄúStep-on-it‚Äù installation for quick, easy mounting without additional fasteners or second installer
• Pre-pour sleeve option to create cast-in-place core hole for positioning before concrete pour, reducing labor and cost
• TopGuard‚Ñ¢ protection meets or exceeds UL scrub water exclusion requirements for tile, carpet, and wood floors
• Meets ADA Accessibility Guidelines with beveled trim flange slope not exceeding 1:2 ratio
• Suitable for use in air handling spaces per NEC Sec 300-22(C)
