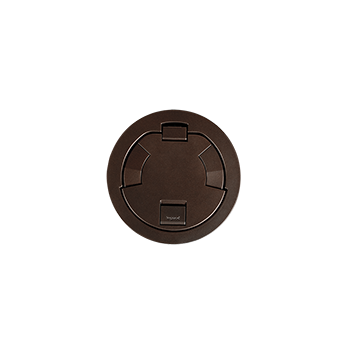

3-Hour Fire Classified 6" Recessed Prewired Flush Style Poke-Thru Assembly

3-Hour Fire Classified 6" Recessed Prewired Flush Style Poke-Thru Assembly - Electrical Distributor Solutions

The 3-Hour Fire Classified 6" Recessed Prewired Flush Style Poke-Thru Assembly by Wiremold is designed for retrofit and new construction applications in 3-hour fire rated floors. It provides convenient, recessed access to power, communications, and audio/video services below floor level, ensuring maximum device protection. This poke-thru device is suitable for commercial buildings, healthcare facilities, classrooms, meeting and training rooms, and other open-space architectures requiring fire-rated floors. It is an ideal solution for electrical distributors and lighting solutions providers looking to offer reliable wire and cable access with integrated safety and compliance features.

Specifications

• Product Name: 3-Hour Fire Classified 6" Recessed Prewired Flush Style Poke-Thru Assembly
• Manufacturer: Wiremold
• Manufacturer Part #: 6AT2PBZ3H
• Color: Bronze
• Country of Origin: United States
• Made in USA: Yes
• Order Minimum: 1 unit
• Product Weight: 10.28 lbs
• UPC: 786564103608
• Core Hole Size: 6" (152mm) to 6 1/8" (155mm) diameter hole
• Device Recess Depth: 5" (127mm) below floor surface
• Dimensions: 17 1/4" (432mm) height, 7 1/4" (184mm) diameter cover
• UL Listed and UL Fire Classified for up to 3-hour rated floors (U.S. and Canadian standards)
• cULus Listed Metallic Outlet Box File Number E2961, Guide QCIT
• cULus Listed Nonmetallic Outlet Boxes & Fittings Classified for Fire Resistance: File R8209, Guide CEYY

Features

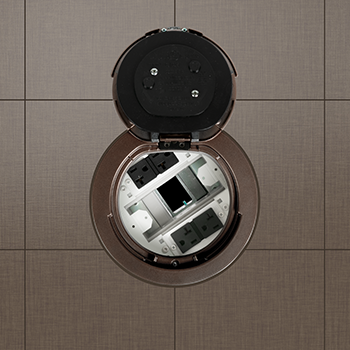

• Durable recessed design with three compartments for power, communications, and A/V devices recessed 5" below floor level for maximum protection and longevity
• Flush style die-cast aluminum cover designed to sit flush with finished floor coverings such as carpet, tile, or wood
• Available in six finishes including bronze powder coat and metal finishes such as brushed aluminum, satin brass plated, and satin nickel plated
• Two prewired 20A duplex receptacles installed in side compartments
• Includes device mounting plates for center and bottom feed compartments
• Auto-close sliding egress doors lock open and close around cables to reduce trip hazards
• ‚ÄúStep-on-it‚Äù installation enables quick, easy mounting without additional fasteners or second installer
• Pre-pour sleeve available to create cast-in-place core hole for installation before concrete pour, saving labor and cost
• TopGuard‚Ñ¢ protection exceeds UL scrub water exclusion requirements for tile, carpet, and wood covered floors
• Meets ADA Accessibility Guidelines with beveled trim flange slope no greater than 1:2 ratio
• Suitable for use in air handling spaces per NEC Sec 300-22(C)
