3M 200 Amp Industrial Loadbreak Elbow5810-A-3, 15 kV

3M 200 Amp Industrial Loadbreak Elbow5810-A-3, 15 kV Power Cable Connectors

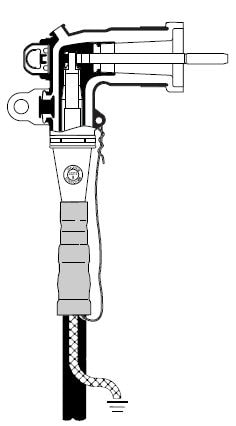

The 3M 200 Amp Industrial Loadbreak Elbow 5810 Series is a fully shielded and insulated plug-in separable connector designed for connecting underground power cables to transformers, switchgear, and junctions equipped with loadbreak bushings. It is suitable for use on tape shield, wire shield, UniShield®, and jacketed concentric neutral cable types. Molded with high-quality peroxide-cured EPDM insulation, this elbow connector provides reliable electrical distribution and safe loadmake/break operations, making it an essential component for electrical distributors and switchgear suppliers handling medium voltage wire and cable installations.

Specifications

• Voltage Rating: 15 kV
• Current Rating: 200 Ampere
• Insulation Material: Peroxide-cured EPDM rubber
• Compatible Cable Types: Tape shield, wire shield, UniShield¬Æ, jacketed concentric neutral (JCN)
• Agency Approval: ANSI/IEEE Standard 386
• Country of Origin: United States
• Product Weight: 3.0640 lbs
• Manufacturer: 3M
• Manufacturer Part Number: 7000132807

Features

• Fully shielded and insulated dead front termination for safe energized operation
• Copper-top compression connector with inertia-welded aluminum barrel and copper lug for reliable, tight, and cool electrical connections
• Tin-plated copper loadbreak probe with ablative arc-follower tip for dependable loadbreak switching
• Stainless steel reinforced pulling eye for secure handling during installation and switching
• Capacitive test point for safe voltage testing without disturbing the connection
• Wide cable range acceptance for cables insulated at 100% or 133% insulation levels
• Designed for use with 5, 8, and 15 kV class cables
• Compatible with cable types requiring electrical distributors and lighting solutions in medium voltage applications
