3M™ Fire Barrier CP 25WB+ , 10.1 fl oz Cartridge, 12 per case, Restricted to Home Depot

3M™ Fire Barrier CP 25WB+ Sealant – Firestop Sealant

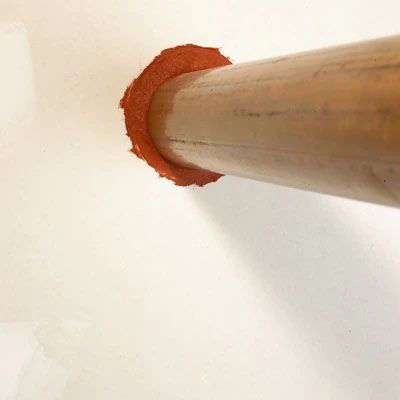

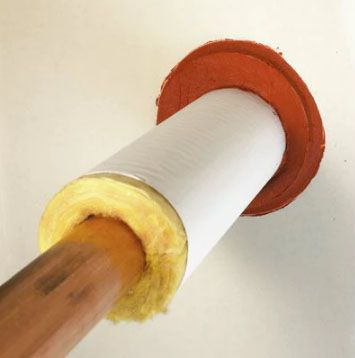

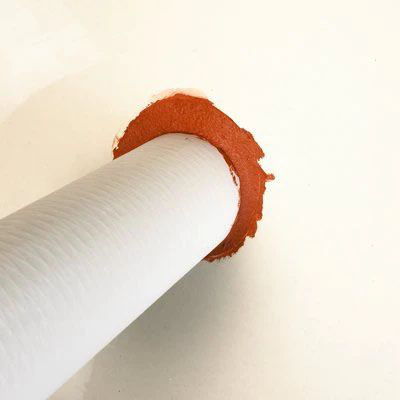

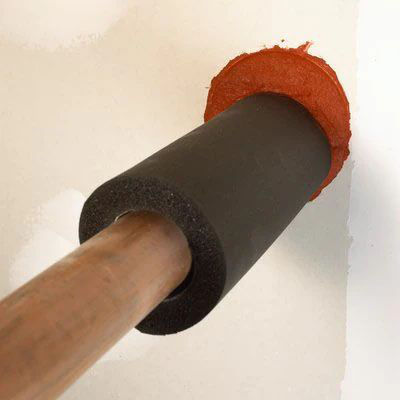

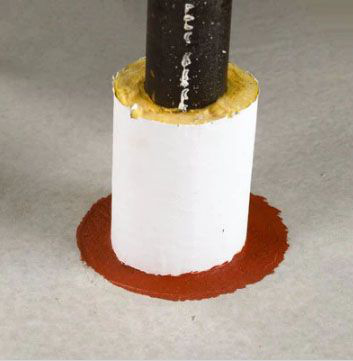

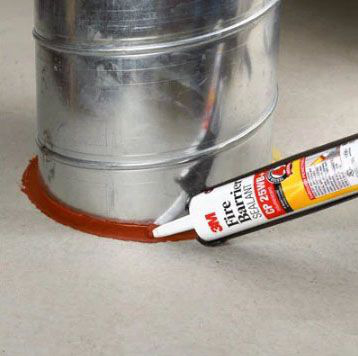

3M™ Fire Barrier CP 25WB+ is a high-performance, intumescent, latex-based firestop sealant designed for use in fire-rated construction. It provides a monolithic seal that controls the spread of fire, smoke, and noxious gases through penetrations in floors, walls, and ceilings. This sealant also acts as an acoustic barrier, minimizing sound transmission, making it suitable for applications in electrical distribution, mechanical, plumbing, and fire protection systems. It is ideal for sealing metallic and plastic pipes (excluding CPVC), conduit, cables, cable trays, busways, insulated pipes, and HVAC duct penetrations.

Specifications

• Product Color: Red
• Package Size: 10.1 fl oz cartridge (also available in 20 oz sausage, 27 oz cartridge, 2 gal and 5 gal pails)
• Fire Resistance: Up to 4 hours per ASTM E 814 (UL 1479) and ASTM E 1966 (UL 2079)
• STC Rating: 54 in STC 54-rated wall assembly
• Application Temperature Range: 40° to 122°F (4° to 50°C)
• Service Temperature Range: -20° to 180°F (-28° to 82°C)
• Hardness (ASTM D 2240 Shore A): 45
• Tensile Strength: 85 psi (0.59 MPa)
• Volume Shrinkage (ASTM C 1241): 28%
• VOC Content (Less H₂O and Exempt Solvents): <1 g/L
• Dry Time: Tack-free in approximately 10–15 minutes; paintable after 72 hours
• Unit Weight: 13.3 lbs (product weight)

Features

• One-component, ready-to-use, gun-grade, latex-based sealant
• Intumescent formula expands up to three times its dried volume at temperatures above 1000°F (538°C)
• Firestop tested and listed by UL, Intertek, and FM
• Re-enterable and repairable for maintenance
• Halogen-free and no-sag formulation
• Water-based for easy cleanup and routine disposal without special handling
• Excellent adhesion to a wide range of construction substrates and penetrants
• Minimizes noise transfer with an STC rating of 54

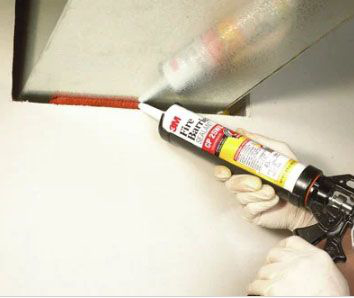

• Applied with standard caulking equipment, exhibiting a high caulk rate
• Paintable for aesthetic finishing
• Meets UL 1479 aging requirements and various building codes including IBC, IRC, IFC, IPC, IMC, NFPA 5000, NEC, and NFPA 101
