3M Scotchcast Re-Enterable Electrical Insulating Resin 2123, 1 GALLON, 1/Case

3M Scotchcast Re-Enterable Electrical Insulating Resin 2123 – Electrical Resin for Splice Protection

3M Scotchcast Re-Enterable Electrical Insulating Resin 2123 is a two-part polybutadiene resin encapsulant designed for re-enterable splice protection in electrical applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable, moisture-sealing insulation for cable splices operating up to 1000 volts. The resin offers excellent handling and performance, bonding to nearly all cable jackets and providing flexible, low-viscosity insulation with room temperature cure.

Specifications

• Manufacturer: 3M
• Manufacturer Part #: 7100165378
• Color: Translucent Amber
• Hardness: 0 Shore A (ASTM D2240)
• Density: 0.53 oz/in³ (0.91 g/cm³) (ASTM D792)
• Tensile Strength: 10.7 psi (0.75 kg/cm²) (ASTM D412)
• Elongation: 300% (ASTM D412)
• Tear Strength: 1.6 lb/in @ 75ºF (585 N/m @ 24ºC) (ASTM D624)
• Glass Transition Temperature: -108ºF (-78ºC) (DSC)
• Maximum Exotherm: 37ºF (3ºC) (ASTM D2471-99)
• Gel Time: 62 minutes (ASTM D2471-99)
• Viscosity (cP) @ 77°F (25°C): Part A 350-750, Part B 700-1400 (3M Method TM-173)
• Specific Gravity: Part A 0.89, Part B 0.94 (ASTM D891)
• Moisture Absorption: 0.2% (ASTM D-570)
• Adhesion to Metals (lb/in²): Copper 8.3, Brass 9.5, Steel 10.2, Aluminum 9.5 (3M TM-456)
• Adhesion to Cable Jackets (lb/in²): Vinyl 11.8, Neoprene 18.5, Nylon 4.9, XLPE 15.8 (3M TM-457)
• Insulation Resistance: >4 x 10¹¹ ohms (MS 17000, Section 1182)
• Dielectric Strength: >240 V/mil (9.5 kV/mm) (ASTM D149)
• Dielectric Constant @ 60Hz: 3.4 pf @ 73ºF (23ºC), 3.3 pf @ 194ºF (90ºC) (ASTM D150)
• Dissipation Factor @ 60Hz: 3.5% @ 73ºF (23ºC), 114.5% @ 194ºF (90ºC) (ASTM D150)
• Product Weight: 16.05 lbs
• Made in USA (Country of Origin: United States)

Features

• Soft, flexible resin formulated for re-enterable splice protection
• Excellent moisture sealing properties for reliable insulation
• Bonds to nearly all cable jackets and existing Scotchcast Resin 2112
• Low viscosity resin that flows well at low temperatures, minimizing voids

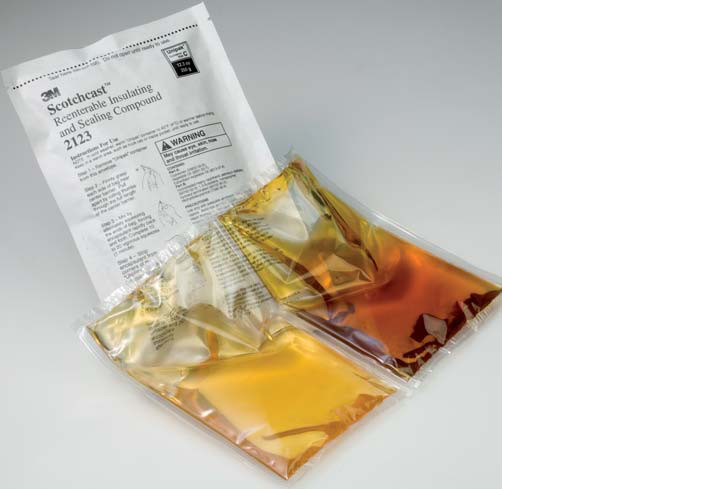

• Available in two-part closed mixing pouch for easy mixing and pouring
• Room temperature cure with typical cure time of 24 hours at 70ºF (21ºC)
• Rated for continuous use at 194ºF (90ºC) with overload rating at 266ºF (130ºC)
• Multi-purpose resin suitable for potting cable fittings, splices, junction boxes, motor controls, power supplies, and ballasts
