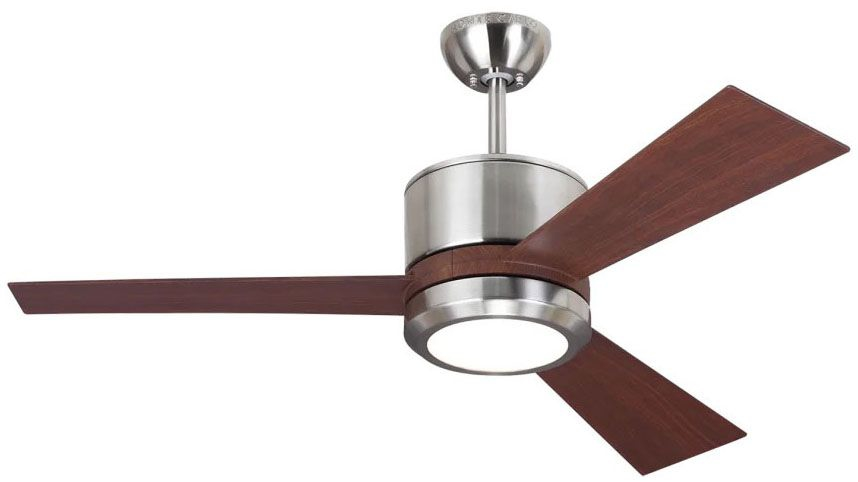

3VNR42BSD-V1, Ceiling Fan

3VNR42BSD-V1 Ceiling Fan – Modern Ceiling Fan Lighting Solutions

The 3VNR42BSD-V1 ceiling fan by Monte Carlo is designed with a clean, modern aesthetic suitable for residential and commercial environments. Featuring a 42-inch blade sweep with teak ABS blades and brushed steel housing, this fan integrates a 20W LED downlight delivering 900 lumens with a 2700K color temperature and a CRI of 90+. It includes a combo hand-held and wall-mount remote control offering three speeds, reverse function, downlight control, and dimming capabilities, making it a versatile lighting and air circulation solution for electrical distributors and lighting solutions providers.

Specifications

• Manufacturer: Monte Carlo
• Model Number: 3VNR42BSD-V1
• Blade Sweep: 42 Inch
• Blade Material: ABS (Teak finish)
• Housing Finish: Brushed Steel
• Integrated Light: 20W LED Downlight
• Light Output: 900 Lumens (Net)
• Color Temperature (CCT): 2700K
• Color Rendering Index (CRI): 90+
• Blade Pitch: 12°
• Fixture Drop: 14.6 Inch
• Blade Drop: 13 Inch
• Housing Width: 8.3 Inch
• Downrod Length: 6 Inch (included)
• Motor Size: 153 mm x 12 mm
• Maximum Ceiling Slope: 30° with included hardware
• Power Consumption: 40 Watts (High Speed)
• Airflow: 2190 CFM (High Speed)
• Weight: 17.2 lbs

Features

• Combo hand-held and wall-mount remote control with three-speed settings, reverse, downlight, and dimming functions
• Integrated LED downlight with frosted acrylic lens for uniform illumination
• Durable ABS blades with teak finish for longevity and aesthetic appeal
• Motor with permanently lubricated bearings requiring no oiling
• Suitable for ceilings with up to 30° slope using included mounting hardware
• Energy-efficient operation with 55+ CRI LED lighting
• Designed for easy maintenance with sealed lacquer coating to minimize discoloration or tarnishing
