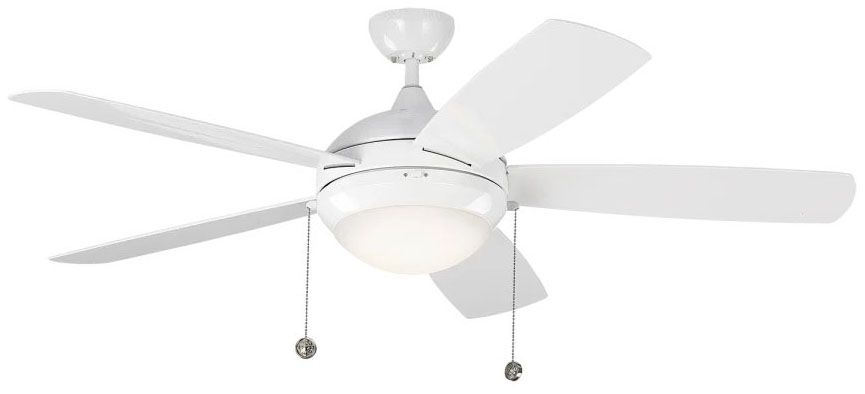

5DIW52WHD, Ceiling Fan

5DIW52WHD Ceiling Fan - Outdoor LED Ceiling Fan

The 5DIW52WHD Ceiling Fan by Monte Carlo is designed for outdoor use, providing efficient air circulation with an integrated LED light. This 52-inch ceiling fan features a premium 153 x 18 mm AC motor with torque-induction for quiet operation, making it suitable for residential and commercial outdoor lighting solutions. Its durable construction with white ABS blades and a matte opal glass diffuser ensures reliable performance in wet locations. The fan is ideal for electrical distributors and switchgear suppliers looking to offer quality wire and cable compatible lighting and ventilation solutions.

Specifications

• Blade Sweep: 52 inches
• Number of Blades: 5
• Blade Material: ABS
• Blade Pitch: 12°
• Motor Size: 153 mm x 18 mm
• Housing Width: 11.1 inches
• Fixture Drop (Overall Height): 15.1 inches
• Blade Drop: 10.6 inches
• Downrod Length (Included): 4.5 inches
• Lead Wire Length: 78 inches
• Weight: 20.5 lbs
• Light Kit: Integrated 20W LED array, 715 lumens, 2700K color temperature, CRI 90+
• Number of Speeds: 3
• Reverse Switch: Manual, located on top of housing
• Mounting: Suitable for ceilings with up to 30° slope
• Finish: White housing with white ABS blades and matte opal glass diffuser
• Safety Listing: Wet location rated
• Energy Efficiency: 73 CFM/Watt at standard speed

Features

• Quiet torque-induction motor designed for smooth, wobble-free operation
• Triple capacitor for enhanced motor performance
• Precision balanced motor and blades for stable airflow
• Integrated dimmable LED light fixture meeting California Energy Commission Title 24 standards
• Pull chain operation with 3-speed manual control and reversible airflow
• Durable construction for outdoor wet location use
• Extra-long 6.5-foot lead wire for flexible installation with long downrods
