8AT Unwired Evolution™ Poke Thru Device

8AT Unwired Evolution™ Poke Thru Device – Electrical Distributor Solutions

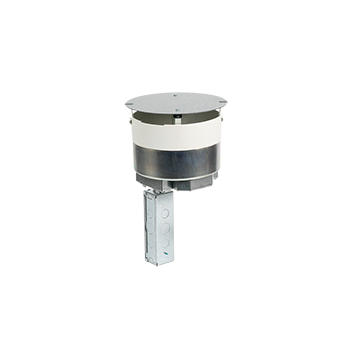

The 8AT Unwired Evolution‚Ñ¢ Poke Thru Device by Wiremold is designed for retrofit and new construction applications, providing recessed access to power, communications, and audio/video services below floor level. This device is ideal for commercial buildings with open-space architecture, meeting rooms, training rooms, classrooms, kiosks, and healthcare facilities. It offers a robust solution for electrical distributors and lighting solutions providers seeking versatile wire and cable management and switchgear supplier options.

Specifications

• Product Weight: 10.86 lbs
• Color: Silver
• Dimensions: 9.0 in (W) x 9.0 in (H) x 16.25 in (Depth)
• Cable Entry: Knockouts & Pass Through
• Core Hole Size: 8 in
• Cubic Capacity: 24.5 in¬≥
• Made in USA: Yes
• Country of Origin: United States
• Manufacturer: Wiremold
• Manufacturer Part #: 8STC

Features

• Five (5) gang capacity providing maximum configurability for power, communications, and A/V services recessed 4" below floor level for device protection and longevity.
• All-metal die-cast aluminum cover assemblies available in a durable silver finish, designed to complement various floor coverings including carpet, tile, wood, and laminate concrete.
• Spring-loaded sliding egress doors that automatically close around cables, reducing trip hazards and protecting connections.
• Compatible with Legrand AVIP Series, Extron¬Æ Electronics MAAP, AAP Series devices, and modular inserts from Ortronics¬Æ TracJack¬Æ and Series II.
• Pre-pour sleeve option for easier installation prior to concrete pouring, eliminating the need for coring.
• UL Listed and UL Fire Classified for up to 2-hour rated floors, maintaining fire rating of concrete floor assemblies.
• Wide trim flange designed to meet ADA Accessibility Guidelines, with a beveled edge for smooth floor transitions.
• Suitable for use in air handling spaces per National Electrical Code Section 300-22(C).
