8AT Unwired Evolution™ Poke Thru Device, Surface Style Cover, Black

8AT Unwired Evolution‚Ñ¢ Poke Thru Device, Surface Style Cover, Black - Electrical Distributor Solutions

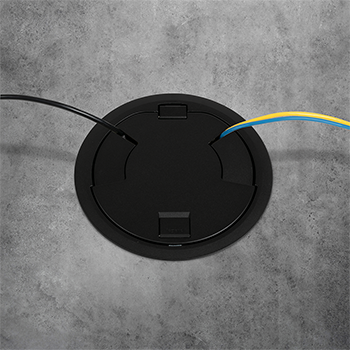

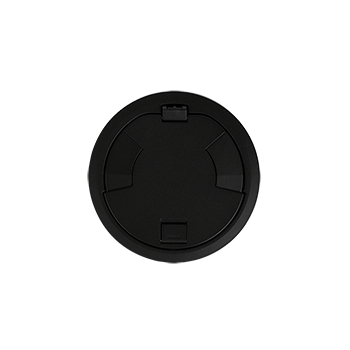

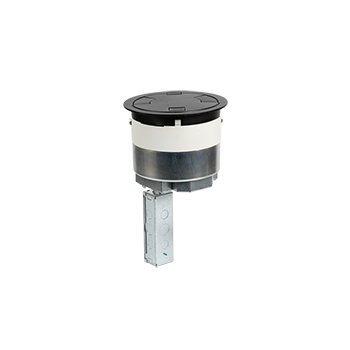

The 8AT Unwired Evolution‚Ñ¢ Poke Thru Device is a recessed floor access solution designed for retrofit and new construction. It provides convenient access to power, communications, and audio/video services recessed below floor level, ensuring maximum device protection. Ideal for electrical distributors and lighting solutions providers, this device suits commercial buildings, healthcare facilities, classrooms, meeting rooms, and kiosks. It supports wire and cable management with 5 gangs of capacity, allowing tailored service configurations. The device features a surface style black cover with knockouts and pass-through cable entry, compatible with carpet, tile, wood, and laminate concrete floor coverings.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 8ATC2BK
• Color: Black
• Dimensions: 9.25 in (Width) x 9.25 in (Height) x 16.25 in (Depth)
• Core Hole Size: 8 in
• Cubic Capacity: 24.5 in¬≥
• Cable Entry: Knockouts & Pass Through
• Product Weight: 11.81 lbs
• Country of Origin: United States
• Made in USA: Yes
• Order Minimum: 1 unit
• UPC: 786564089674

Features

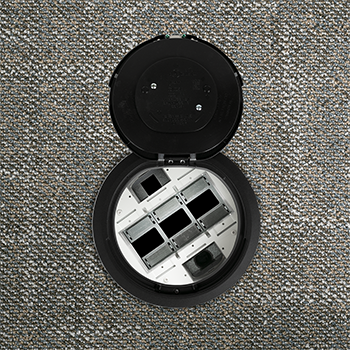

• Recessed design with 5 gangs of capacity for power, communications, and A/V services
• Compatible with Legrand AVIP Series, Extron Electronics MAAP, and AAP Series devices
• Accepts Wiremold open system adapters and Ortronics TracJack and Series II modular inserts
• All-metal surface style cover with spring-loaded sliding egress doors for cable management
• Finished interior to protect wiring and simplify moves, adds, and changes
• Designed for use in carpet, tile, wood, and laminate concrete floors
• Supports separate circuit wiring for each receptacle, including standard or isolated ground options
• UL Listed for fire resistance (refer to UL certification CEYY.R8209 for compliance with fire-rated concrete floor assemblies)

Downloads & Links

• Poke-Thru Flip Covers Brochure
• cULus Fire Classification
• Evolution Series Sell Sheet
• Evolution Series Poke-Thru Div 16
• BIM Models Evolution Series 8 Poke-Thru Devices
• Evolution Series Poke-Thru Devices Brochure
• Evolution Series Poke-Thru - 6AT, 8AT, 10AT | Div 26"
• Evolution Series 8"" Poke-Thru Devices"
• Evolution Series 8" Poke-Thru Devices BIM Device Plate
• ULC Fire Classification
• Evolution Series Poke-Thru Part List - COO
• Spec Sheet
• Evolution Series Poke-Thru Devices Pre-Pour Sleeve
• Open Spaces Brochure
• Evolution Series 8"" Poke-Thru Devices"
