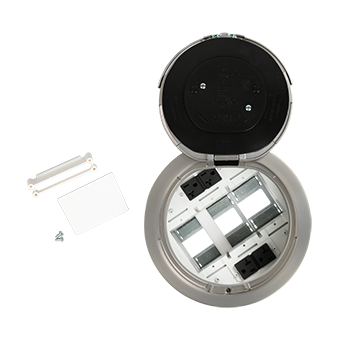

8IN PREWIRED FLUSH STYLE ASSEM SN SATIN NICKEL

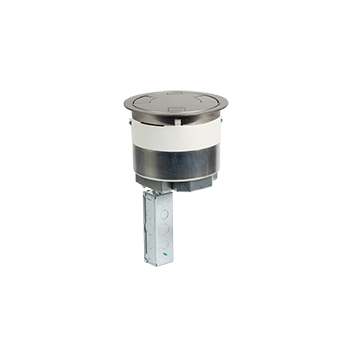

8IN PREWIRED FLUSH STYLE ASSEM SN SATIN NICKEL Poke-Thru Device

The Wiremold Evolution Series 8” Poke-Thru Device provides recessed access to power, communications, and A/V services below floor level, ensuring maximum device protection. Designed for retrofit and new construction, this device is ideal for commercial buildings, healthcare facilities, classrooms, and meeting rooms with open-space architecture. The flush style cover allows the device to sit flush with finished floor coverings such as carpet, tile, or wood, maintaining a low profile and reducing tripping hazards. This product is suitable for electrical distributors and switchgear suppliers seeking reliable wire and cable management solutions integrated into lighting and electrical systems.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 8AT2PSN
• Country of Origin: United States
• Made in USA: Yes
• Dimensions (L x W x H): 9.25 in x 9.25 in x 16.25 in
• Cubic Capacity: 2578.88 in¬≥
• Construction: Assembled
• Cable Entry: Knockouts
• Product Weight: 12.1 lbs
• UPC: 786564096818
• Order Minimum: 1 unit

Features

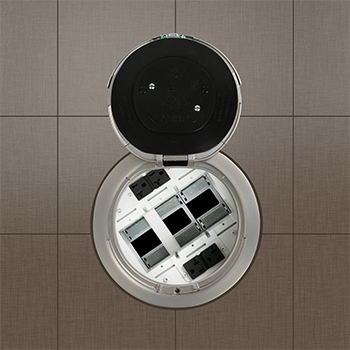

• Flush style aluminum cover designed to sit flush with finished floor coverings such as carpet, tile, or wood
• Five recessed compartments 4" (102mm) below floor level for power, communications, and A/V devices
• Two pre-wired, pre-installed tamper-resistant 20A duplex receptacles included in side compartments
• Three open compartments for additional power, data, or A/V devices
• Available in six finishes including satin nickel plated
• Durable die-cast aluminum cover with no bevel for seamless floor integration

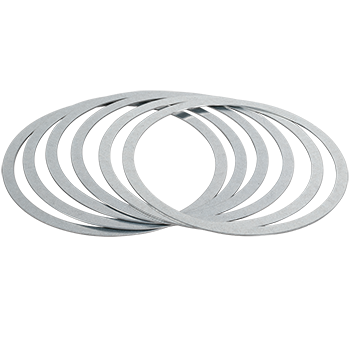

• Includes one (1) 6TS tile shim for floor coverings greater than 3/16" (4.8mm) to ensure flush installation
• Meets ADA Accessibility Guidelines with beveled trim flange slope no greater than 1:2 ratio
• UL Listed and UL Fire Classified for up to 2-hour rated floors, suitable for use in air handling spaces per NEC Sec 300-22(C)
• TopGuard‚Ñ¢ Protection exceeds UL scrub water exclusion requirements for tile, carpet, and wood floors
• ‚ÄúStep-on-it‚Äù installation for quick, single-person mounting without additional fasteners
• Pre-pour sleeve available (sold separately) for cast-in-place core hole to eliminate coring labor and cost
