8IN SURFACE STYLE CVR ASSEMBLY AA BRUSHED ALUMINUM

8IN SURFACE STYLE CVR ASSEMBLY AA BRUSHED ALUMINUM - Evolution Series Poke-Thru Device

Designed for retrofit and new construction, the Evolution Series 8” Poke-Thru device provides convenient recessed access to power, communications, and A/V services below floor level, offering maximum device protection. Ideal for electrical distributors and lighting solutions providers, this poke-thru device supports flexible configurations with five gangs of capacity, allowing services to be placed anywhere within the unit. The low-profile metal cover in brushed aluminum finish features sliding doors for neat cable egress, protecting cables and reducing tripping hazards. Suitable for meeting rooms, classrooms, healthcare facilities, and commercial buildings with open-space architecture.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 8CTC2AA
• Country of Origin: Mexico
• Construction: Assembled
• Cubic Capacity: 264.5 in¬≥
• Width: 9.25 in
• Length: 9-1/4 in
• Cable Entry: Knockouts
• Product Weight: 11.7 lbs
• Order Minimum: 1 unit
• UPC: 786564096436

Features

• Five recessed compartments 4" (102mm) below floor level for power, communications, and A/V devices
• Durable die-cast aluminum cover assembly in brushed aluminum finish

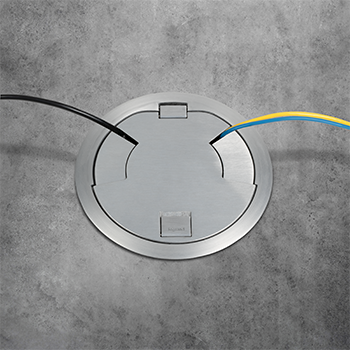

• Sliding auto-close egress doors that lock open and close around cables to reduce opening size and tripping hazards
• Low-profile cover designed to sit on finished floor surfaces including carpet, tile, wood, polished concrete, or terrazzo
• 8¬∞ beveled edge trim flange meets ADA Accessibility Guidelines for floor and ground surface level changes
• Compatible with Legrand AVIP devices and most A/V manufacturer decorator style devices
• ‚ÄúStep-on-it‚Äù installation for quick, easy setup without additional fasteners
• Pre-pour sleeve available to create cast-in-place core hole, reducing labor and cost
• UL Listed and UL Fire Classified for up to 2-hour rated floors, meeting U.S. and Canadian safety standards
• Meets UL scrub water exclusion requirements for tile, carpet, and wood floors
• Suitable for use in air handling spaces per NEC Sec 300-22(C)
