9 Watt LED PL 4-Pin; 3500K; 1050 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle; Type A; Ballast dependent

9 Watt LED PL 4-Pin Lamp with G24q Base

This 9 Watt LED PL lamp is designed for use in lighting solutions requiring ballast-dependent operation. It features a G24q 4-pin base and provides 1050 lumens of neutral white light at 3500K color temperature. Suitable for vertical operation, it offers a 120-degree beam spread and is intended for damp locations, making it appropriate for various commercial and industrial applications. Electrical distributors and switchgear suppliers can rely on this lamp for efficient wire and cable lighting retrofits and replacements.

Specifications

• Manufacturer: Satco
• Manufacturer Part #: S29859
• Wattage: 9W
• Base: G24q 4-Pin
• Color Temperature: 3500 kelvins (Neutral White)
• Lumens: 1050 lumens
• Beam Spread: 120 degrees
• Finish: Frosted
• Lens Color: Frost
• Housing Color: White
• Average Rated Life: 50,000 hours
• Operating Temperature: -20¬∞C to +45¬∞C
• Technology: LED
• Ballast Type: Type A (Ballast dependent)
• Power Factor: 0.9
• THD: 25% (+/-5%)

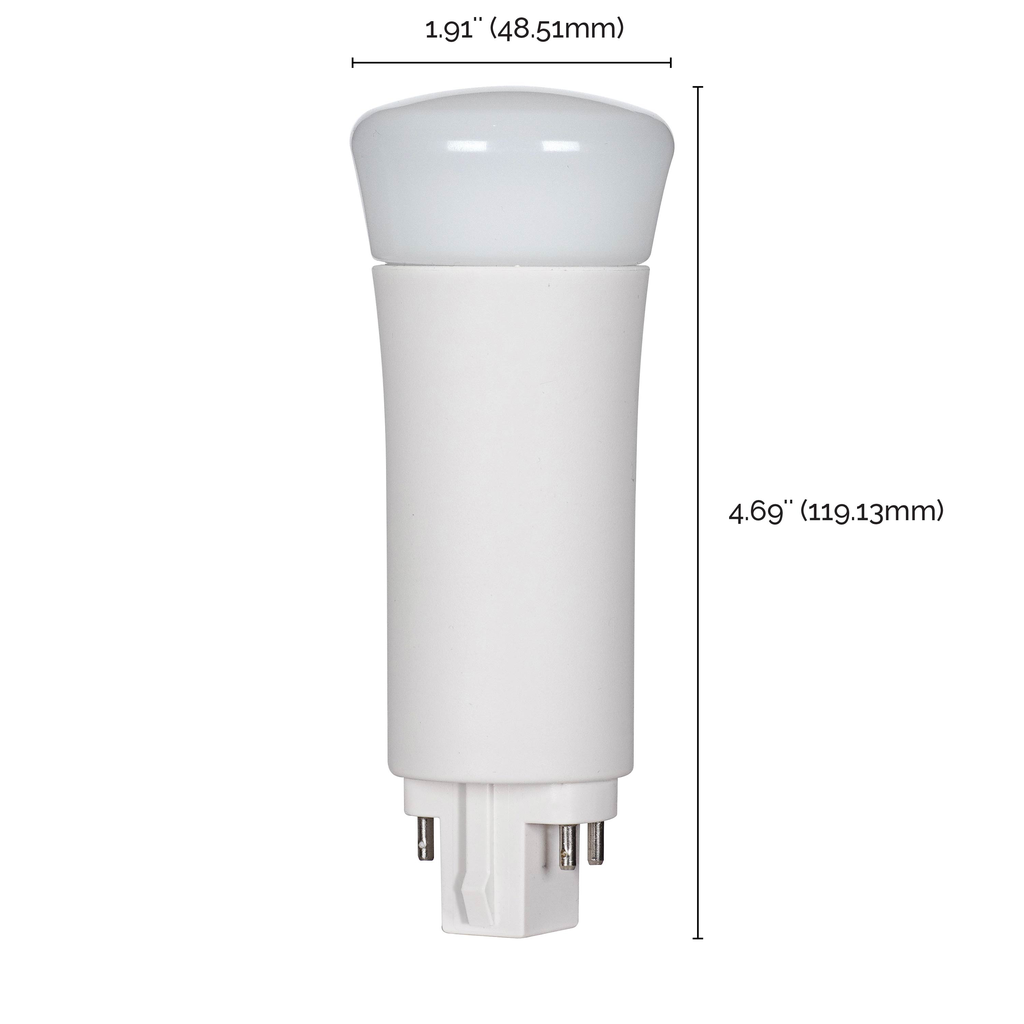

• Dimensions: 4.69" length x 1.91" diameter
• Safety Listing: cULus
• Location Rating: Damp
• Dimmable: No
• RoHS Compliant: Yes
• DLC Approved: Yes
• Country of Origin: China
• Product Weight: 15.3 oz

Features

• Ballast dependent LED lamp compatible with existing Type A ballasts
• High color rendering index (CRI 82) for accurate color appearance
• Long service life rated at 50,000 hours reduces maintenance and replacement costs
• Frosted finish provides uniform light distribution and reduces glare
• Energy-efficient LED technology equivalent to 18W/26W/32W/42W fluorescent lamps
• Designed for vertical burning position to ensure optimal performance
• Meets safety and environmental standards with cULus listing and RoHS compliance
• Suitable for damp locations, expanding installation versatility
• Five-year limited warranty based on 10 hours per day usage

Downloads & Links

• Spec Sheet
