9 Watt T8 LED; 2Ft; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1150 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring

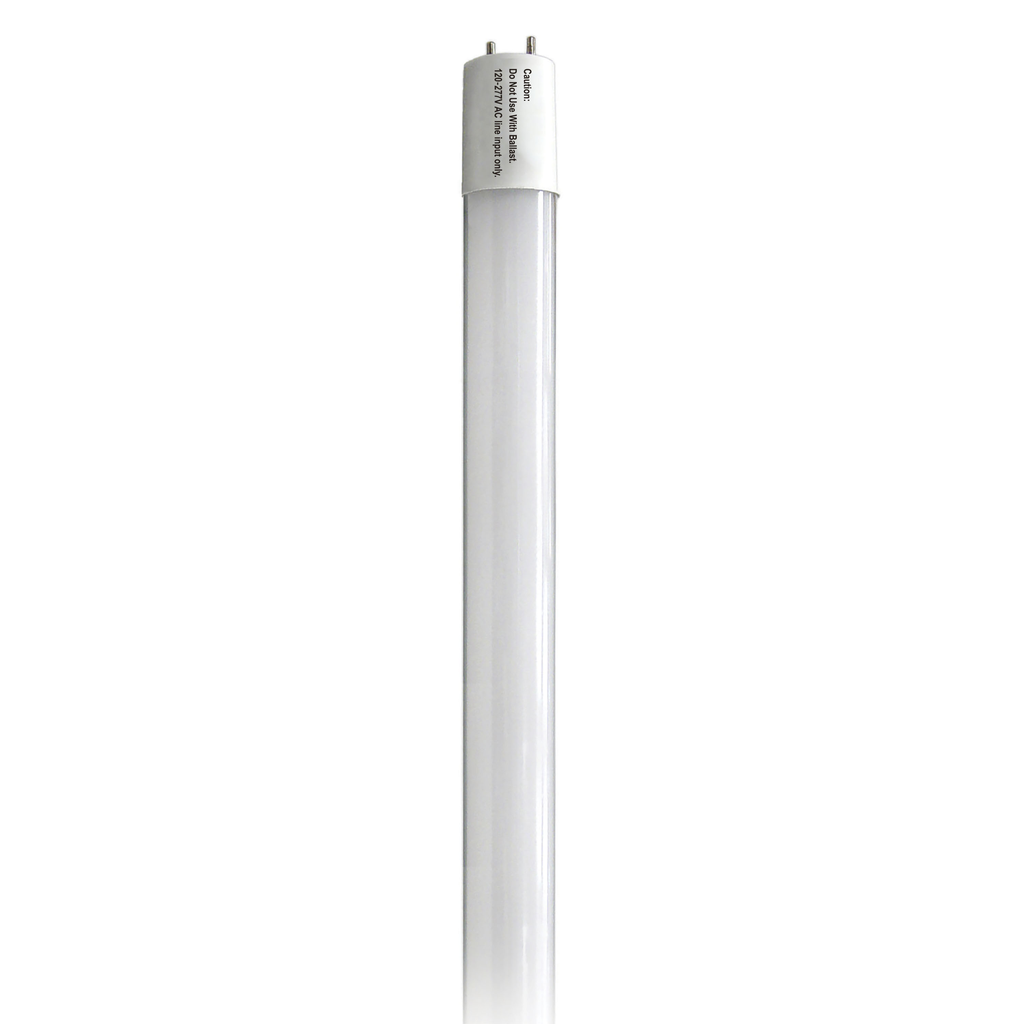

9 Watt T8 LED Tube Light – Energy Efficient Lighting Solution

This 9 Watt T8 LED tube light is designed for indoor lighting applications, offering a reliable and efficient alternative to traditional fluorescent tubes. Suitable for electrical distributors and lighting solutions providers, this lamp features a medium bi-pin base and operates with ballast bypass (Type B), making it compatible with single or double-ended wiring setups. It delivers consistent illumination with a cool white color temperature, ideal for commercial and institutional environments requiring durable and long-lasting wire and cable lighting components.

Specifications

• Manufacturer Part #: S39902
• Wattage: 9W
• Voltage: 120V-277V
• Base: Medium Bi Pin (ANSI Base G13)

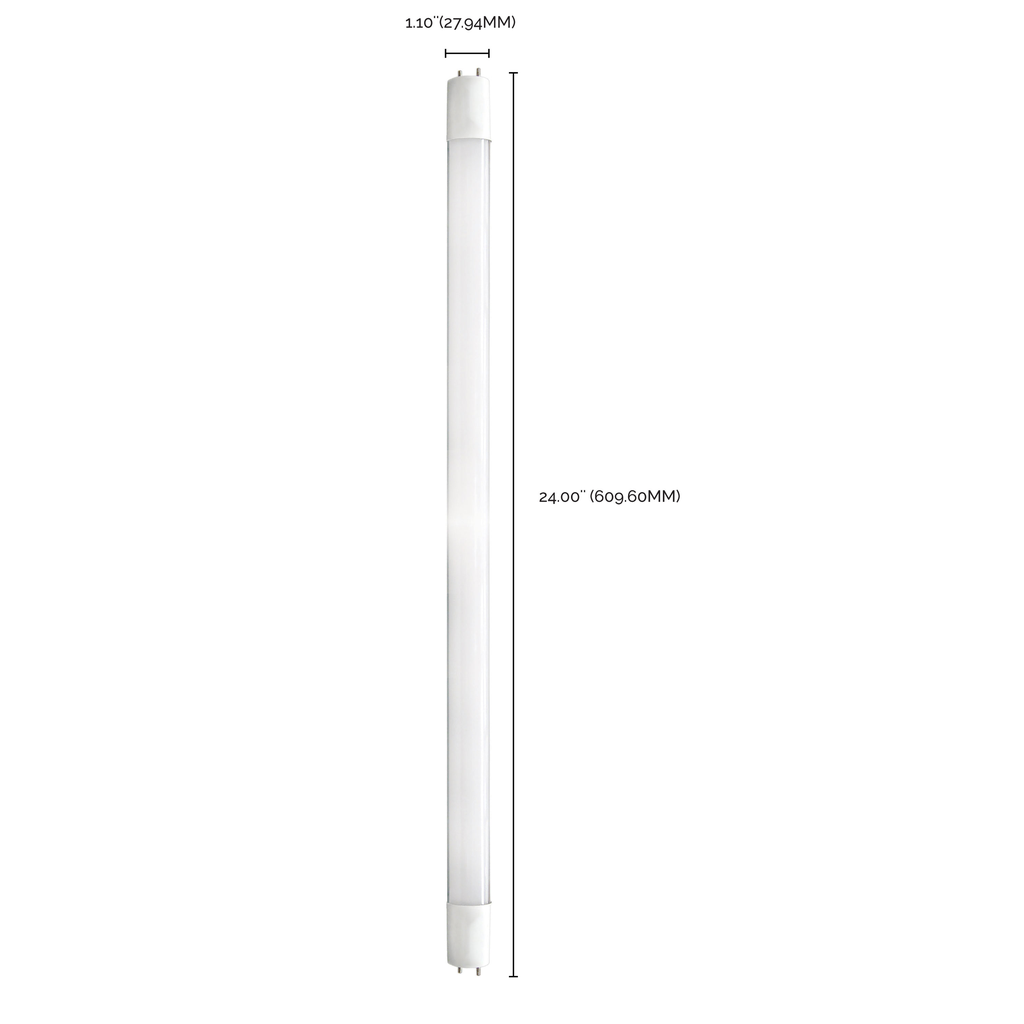

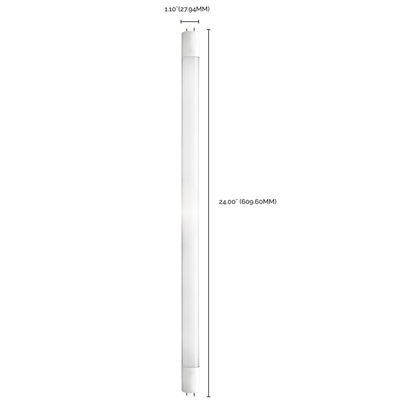

• Length: 24 in.
• Lumens: 1150 lumens
• Color Temperature: 4000K (Cool White)
• CRI: 82
• Beam Spread: 210°
• Rated Life: 50,000 hours
• Dimmable: No
• Operating Temperature: -20°C to +45°C (-4°F to +113°F)
• Material: Glass
• Lens Finish: Gloss White
• Housing Color: White
• Ballast Type: Type B (Ballast Bypass)
• Power Factor: 0.9
• THD: 0.2
• Weight: 0.24 lb.
• Location Rating: Damp
• Safety Listing: cULus Classified
• DLC Approved: Yes
• RoHS Compliant: Yes
• FCC Compliant: Yes
• NSF Approved: Yes
• Country of Origin: China

Features

• High efficiency LED technology providing 1150 lumens at only 9 watts
• Long lifespan of up to 50,000 hours reduces maintenance and replacement costs
• Ballast bypass design allows for direct wiring to line voltage, simplifying installation
• Non-dimmable tube suitable for consistent lighting applications
• Durable glass construction with gloss white finish for aesthetic and functional performance
• Wide beam spread of 210° for uniform light distribution

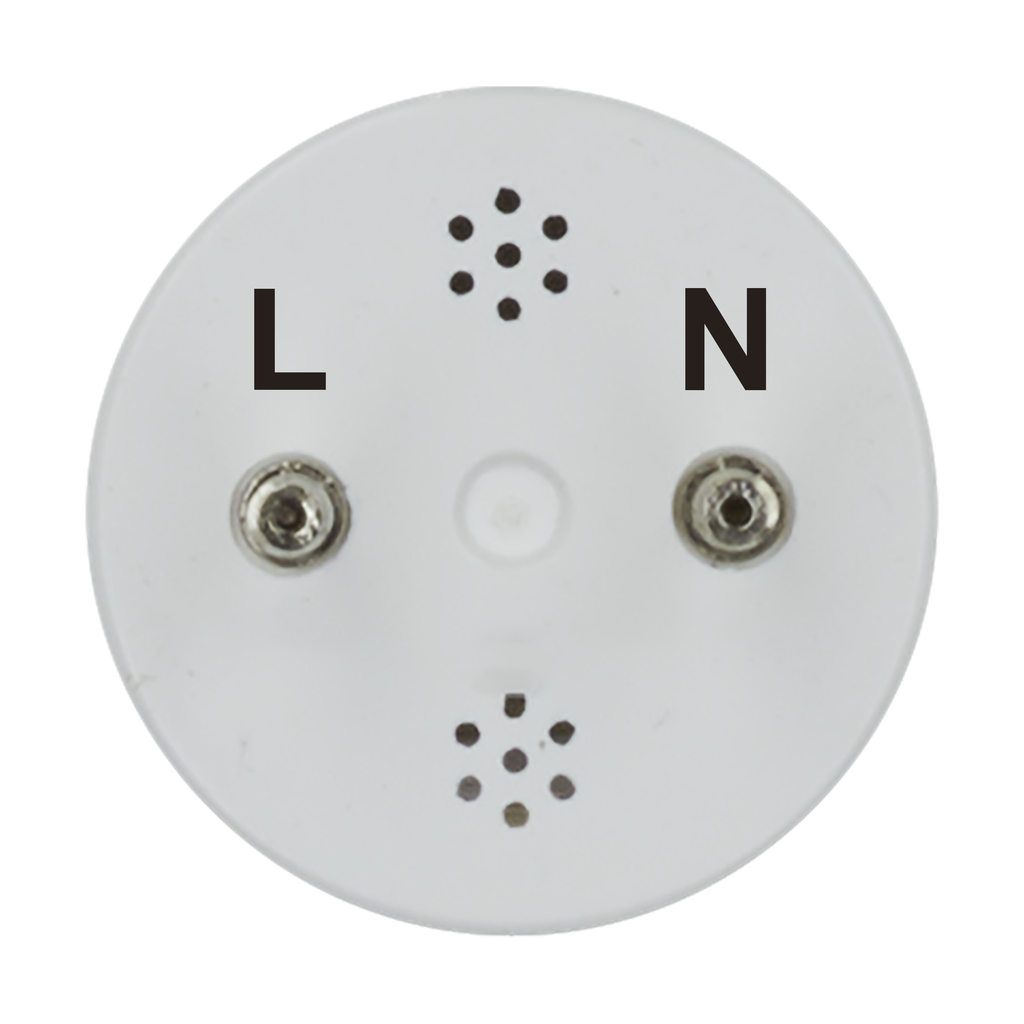

• Compatible with single or double-ended wiring configurations
• Designed for indoor use in damp locations
• Meets multiple regulatory and safety standards including cULus, DLC, RoHS, FCC, and NSF
• Operates efficiently across a broad voltage range (120V-277V)

Downloads & Links

• Spec Sheet
