A17-3T150N

A17-3T150N LED Area Light by RAB - High-Efficacy Lighting Solutions

The A17-3T150N is a high-performance LED area light designed for outdoor pole and arm-mounted applications such as roadways, general parking, and large area lighting. Engineered by RAB, this luminaire offers efficient and reliable lighting solutions suitable for electrical distributors and lighting solution providers seeking durable, energy-saving fixtures with excellent photometric performance. Its Type III distribution allows for effective light projection outward from the side of the area to maximize coverage.

Specifications

• Manufacturer: RAB
• Model Number: A17-3T150N
• Input Wattage: 149 watts
• Lumens: 21,318 lumens
• Efficacy: 143 lumens per watt
• Color Temperature: 4000 kelvins (Neutral)
• Color Accuracy: 70 CRI
• Lens Material: Polycarbonate
• Housing Material: Die-cast aluminum housing, lens frame, and mounting arm
• Weight: 13.2 lbs
• Ambient Temperature Rating: Suitable for use up to 104¬∞F (40¬∞C)
• Minimum Starting Temperature: -40¬∞C (-40¬∞F)
• IP Rating: IP65 for dust and water ingress protection
• Vibration Rating: 3G per ANSI C136.31
• Mounting: Universal mounting arm compatible with hole spacing from 1" to 5 1/2" center to center; includes round pole adaptor plate
• Driver Type: Constant Current, Class 2, 120-277V, 50/60Hz with 0-10V dimming capability
• Power Factor: 99.8% at 120V, 95.6% at 277V
• Surge Protection: 10kV
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Compliance: UL Listed for wet locations, DLC Premium Listed (DLC 5.1 compliant)

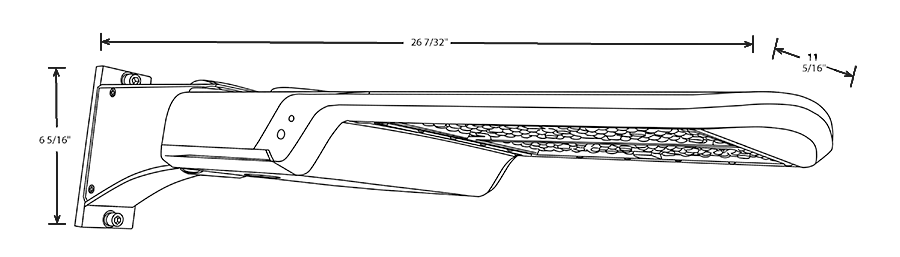

• Dimensions: Length 26 7/32", Height 6 5/16", Mounting Arm Depth 11 5/16"

Features

• Type III light distribution ideal for roadway and area lighting requiring broad lateral coverage
• High efficacy of 143 lumens per watt for energy-efficient operation
• 0-10V dimming standard, allowing dimming down to 10%
• Polycarbonate lens for durability and weather resistance
• Die-cast aluminum construction for long-lasting performance and corrosion resistance
• Suitable for extreme ambient temperatures from -40¬∞C to 40¬∞C (104¬∞F)
• 5-year limited warranty covering light output, driver performance, and finish
• Mercury and UV free with RoHS-compliant components supporting green technology initiatives
• Universal mounting arm with included round pole adaptor plate for flexible installation

Downloads & Links

• Spec Sheet
• LM79
• Instructions
