Above Ground Insulation Piercing Connectors Main 1/0-8 Tap 1/0-8

Above Ground Insulation Piercing Connectors Main 1/0-8 Tap 1/0-8 – Insulation Piercing Connector

The Above Ground Insulation Piercing Connector, model 96110 by Morris Products, is designed for efficient electrical connections in low voltage power distribution systems up to 600V. This connector is suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring reliable and easy-to-install feed/tap configurations. It enables quick, insulated tapping into main conductors without the need to strip insulation, ensuring a secure and watertight connection above ground.

Specifications

• Manufacturer: Morris Products
• Manufacturer Part #: 96110
• Connector Type: Insulation Piercing - Above Ground
• Material: Copper
• Dimensions: 3.7 in (Height) x 2 in (Width) x 3 in (Length)
• Product Weight: 0.45 lbs
• Voltage Rating: 600V
• Temperature Rating: 90¬∞C
• Wire Range: Main conductor 1/0 AWG to 8 AWG, Tap conductor 1/0 AWG to 8 AWG
• Bolt Head Size: 1/2 inch
• Torque: 125 inch lbs
• Insulation: Fiber reinforced thermoplastic (from related product info)
• UPC: 601986961103

Features

• Insulated touch-proof insulation piercing design for safe and efficient installation
• Double head shear nut ensures proper torque and secure connection during installation
• Feed/tap configuration suitable for low voltage power distribution through 600V
• Sealant tank provides a watertight seal to protect the connection from environmental exposure
• Turco spacer maintains jaw opening for ease of installation and proper conductor positioning
• Jacket insert accommodates non-insulated cable constructions

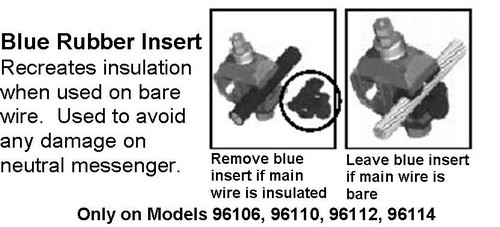

• Includes a blue rubber insert to recreate insulation when used on bare wire, preventing damage to neutral messenger (applicable to certain models)

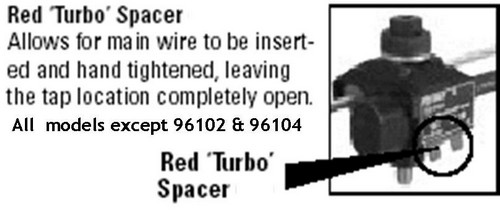

• Red ‚ÄúTurbo‚Äù spacer allows for hand-tightening and keeps tap location open for ease of conductor insertion

Downloads & Links

• Spec Sheet
