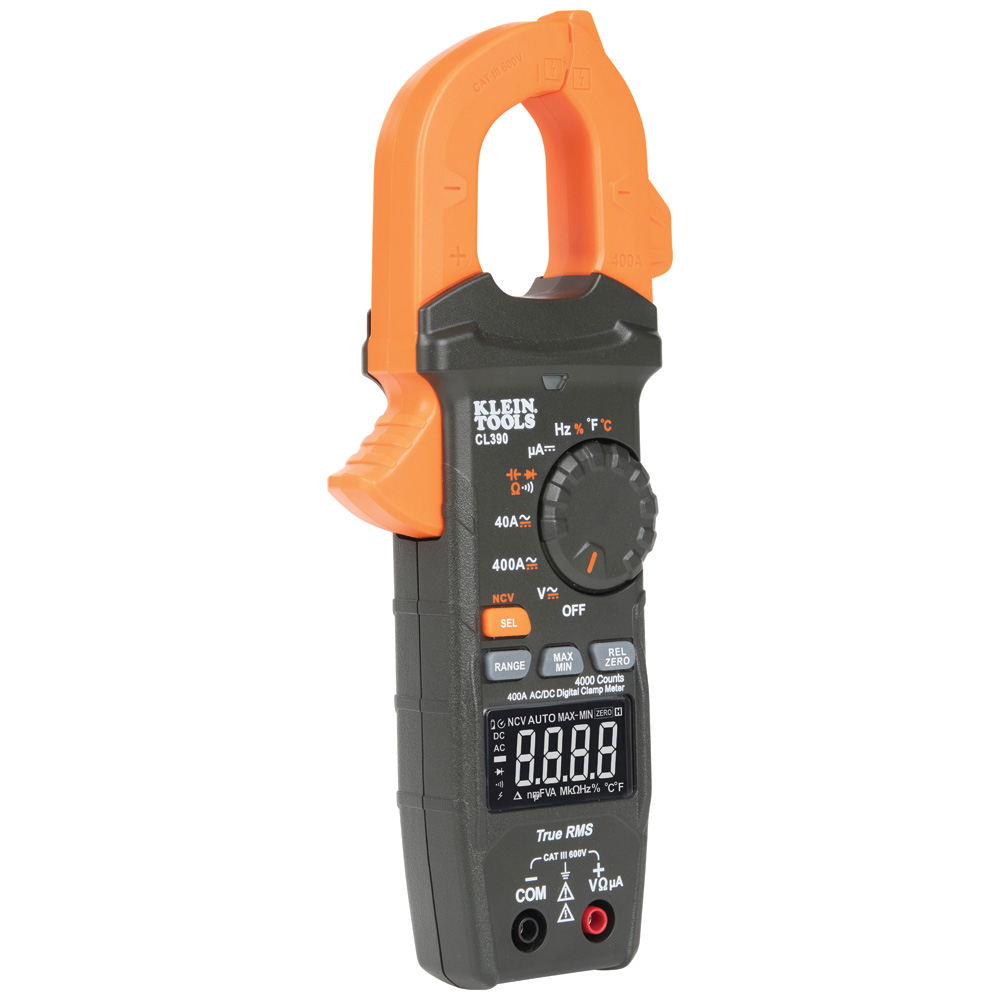

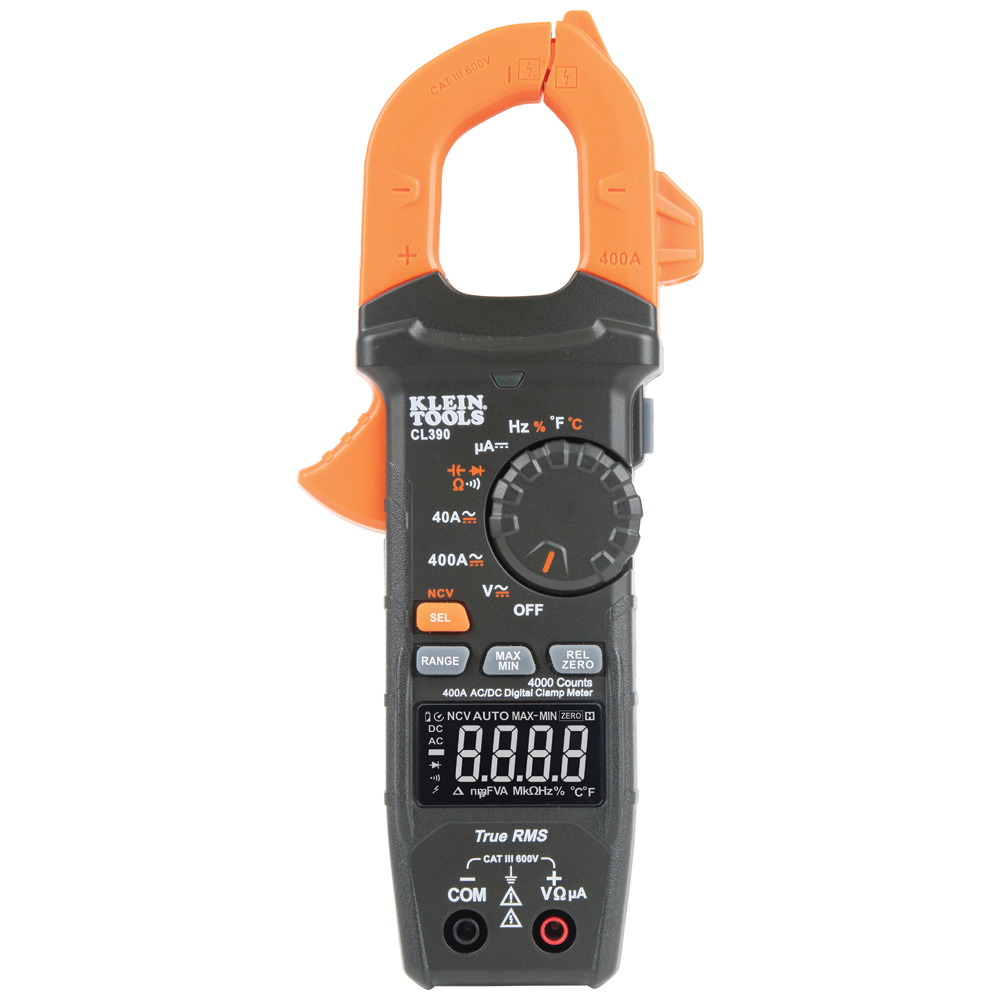

AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp

AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp – True RMS Electrical Tester

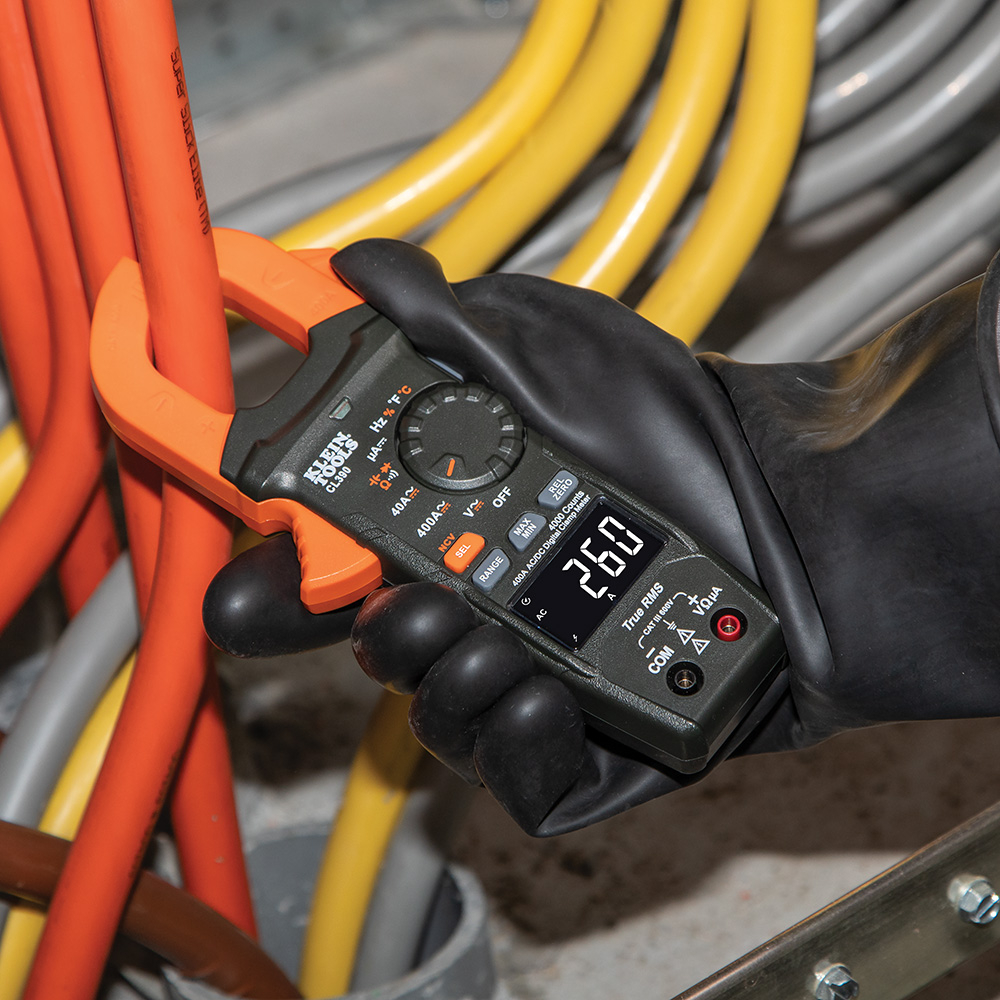

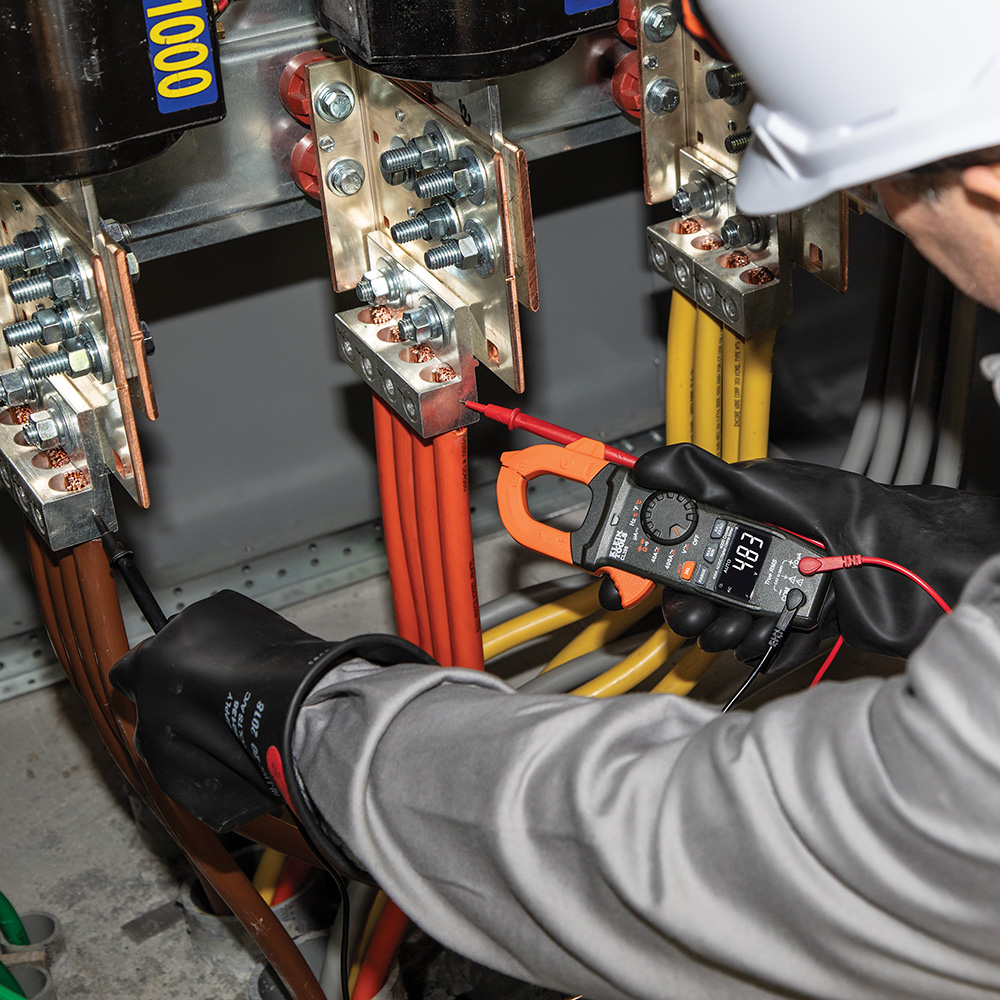

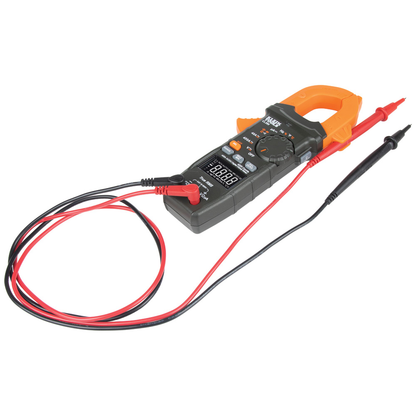

The Klein Tools CL390 is a professional-grade, auto-ranging digital clamp meter designed for precise electrical measurements in residential, commercial, and light-industrial environments. It provides true root mean square (TRMS) measurement technology, enabling accurate AC/DC current readings up to 400 amps via the clamp. This versatile meter also measures AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, diode testing, and temperature with a thermocouple probe. Its reverse contrast LCD display ensures optimal visibility in both bright and low-light conditions, making it suitable for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring reliable diagnostics and testing tools.

Specifications

• Manufacturer: Klein Tools
• Model Number: CL390
• Measurement Type: True RMS
• AC/DC Current Range: Up to 400A
• Voltage Range: Up to 600V AC/DC
• Resistance Range: Up to 40MŒ©
• Frequency Range: 10 Hz to 60 kHz
• Capacitance Range: Up to 4000 ¬µF
• Temperature Range: -40¬∞F to 1832¬∞F (-40¬∞C to 1000¬∞C)
• Display Type: Reverse Contrast LCD
• Dimensions (W x H): 3.512 in x 1.506 in
• Material: ABS
• Product Weight: 0.516 lbs
• Safety Rating: CAT III 600V, Class 2, Double Insulation
• Drop Protection: 6.6 ft (2 m)
• Auto Power-Off: After 5 minutes of inactivity

Features

• Auto-ranging capability for voltage, current, resistance, capacitance, and frequency
• Non-contact voltage testing (NCV) for safe voltage detection without direct contact
• High visibility reverse contrast LCD enhances readability in various lighting conditions

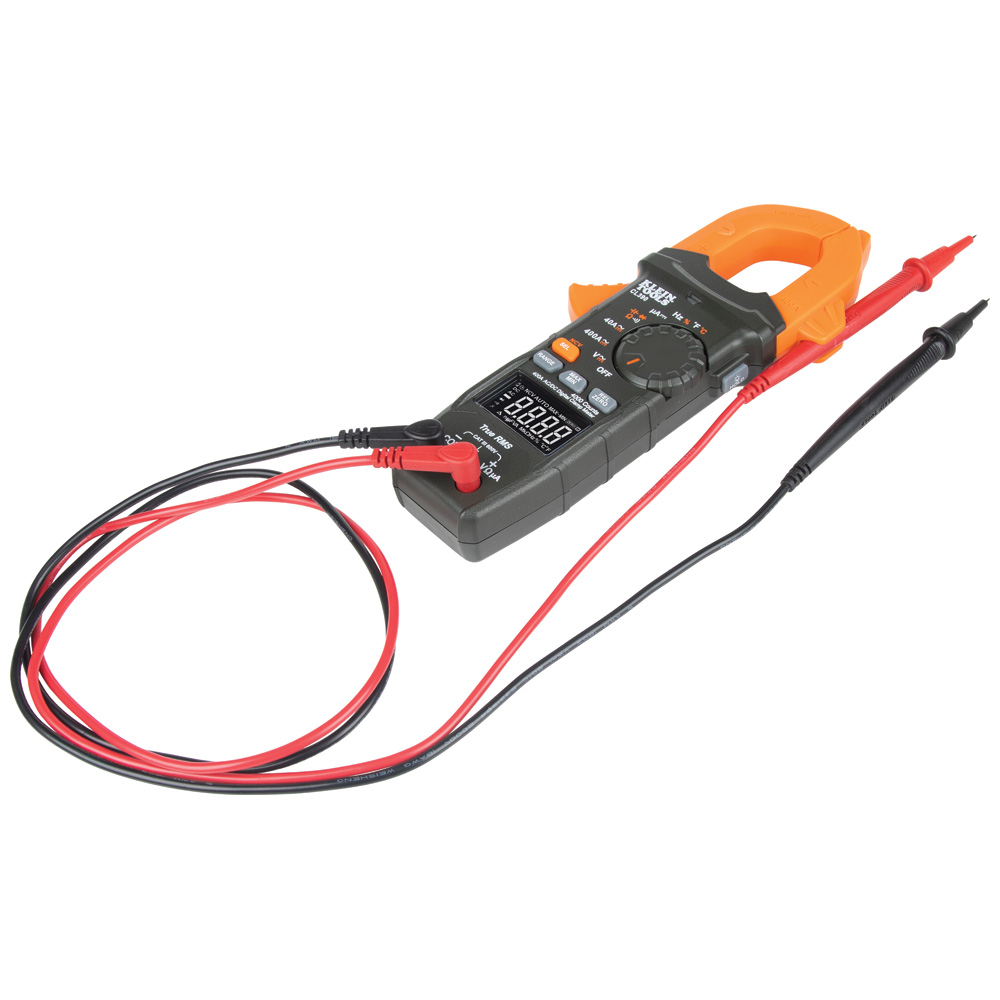

• Measures DC microamps and tests diodes with included test leads
• Temperature measurement via K-type thermocouple probe
• Data and range hold functions for convenient measurement recording
• MAX/MIN and relative measurement modes for detailed analysis
• Compliant with IEC EN and UL/CSA safety standards for electrical testing equipment

Downloads & Links

• Instructions
• Spec Sheet
• Brochure 1
• MSDS
