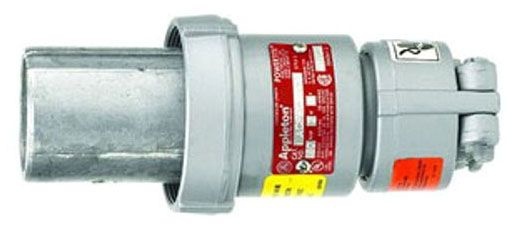

ACP6033BC, Pin and Sleeve Plug

ACP6033BC Pin and Sleeve Plug - Electrical Connector

The ACP6033BC Pin and Sleeve Plug from Appleton is a 60 ampere rated electrical connector designed for supplying power to portable or fixed heavy-duty equipment. It is part of the Powertite‚Ñ¢ Series, featuring a pin and sleeve design that ensures safe, reliable power distribution for applications such as motor generator units, welders, pumps, compressors, and cellular relay stations. This plug is suitable for use in demanding environments requiring weatherproof enclosures and rough usage construction, making it an ideal choice for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers.

Specifications

• Current: 60 amperes
• Number of Poles: 3
• Number of Wires: 3
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Product Weight: 2.28 lbs
• Manufacturer: Appleton
• Manufacturer Part #: ACP6033BC
• UPC: 781381440219

Features

• Pin and sleeve design with solid brass pressure wire terminal contacts and beryllium copper springs for reliable electrical continuity and reduced risk of accidental contact.
• Neoprene sealing bushing compressed by cable collar prevents water ingress, highly resistant to hydrocarbon deterioration, and is self-extinguishing.
• Locking screw and slot secure the plug cable collar to prevent loosening.
• Contacts exert constant pressure along the entire contact surface to maintain electrical continuity.
• Positive polarization ensures compatibility only with plugs and receptacles of the same style, number of poles, and ampere rating.
• Arc snuffing chamber safely confines any arcing during disconnection, allowing emergency withdrawal under full load without separate disconnect switches.
• Available in grounding Style 1 (shell only) and Style 2 (shell plus extra pole) for enhanced safety with controlled length contacts that ensure ground makes first and breaks last.
• Ambient temperature range from -25¬∞C to +40¬∞C (-13¬∞F to +104¬∞F).
• Suitable for use with explosionproof interlocking receptacles for classified locations when paired with Appleton EBR, EBRH, JBR, MD2SR, or DBR series.
• Epoxy powder coated copper-free aluminum housing provides corrosion resistance and durability.
