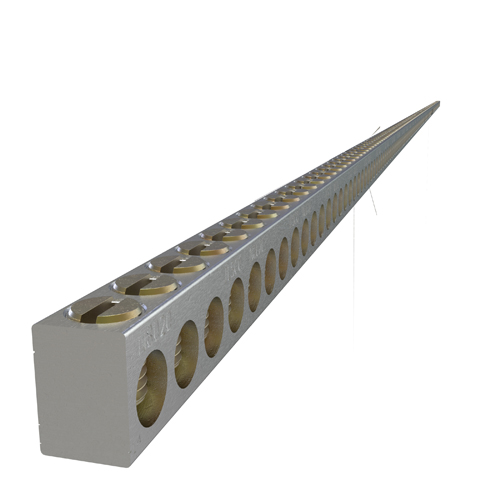

Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 192 Ports, 1 Hole, #10 Bolt, Headless Slot Drive, UL, CSA

Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 192 Ports, 1 Hole, #10 Bolt, Headless Slot Drive – Electrical Distributor

This aluminum neutral bar is designed for use in electrical distribution systems, providing a reliable and dual-rated solution for managing neutral conductors. It supports a conductor range of 4-14 AWG, accommodating solid aluminum and stranded copper conductors. The product is suitable for applications requiring multiple connection points with 192 ports and a single mounting hole, making it ideal for wire and cable management in switchgear and lighting solutions.

Specifications

• Manufacturer: ILSCO
• Manufacturer Part #: NBAS-192-0-B
• Material: Aluminum
• Color: Silver
• Conductor Material: Aluminum
• Conductor Type: Stranded
• Number of Conductors: 192
• Connection Type: Mechanical
• Conductor Range AL Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Range AL Stranded (Primary, run, main, line): 4 Str - 14 Str
• Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Range CU Stranded (Primary, run, main, line): 4 Str - 14 Str
• Voltage Rating: 35 kV
• Length: 60 in
• Width: 0.312 in
• Height: 0.437 in
• Mounting Bolt/Stud Size: #10
• Drive Type: Slotted
• Product Weight: 1.77 lb
• Dual Rated: Yes
• UL Specification: UL 486A/B Recognized
• CSA Standard: C22.2 No. 65-03
• UL File Number: E6207
• CSA File Number: LR-29601
• Carton Quantity: 15

Features

• Dual-rated for aluminum and copper conductors
• 192 ports providing extensive conductor connection points
• Mechanical connection ensuring secure and reliable termination
• Headless slot drive for ease of installation
• Compliant with UL and CSA standards for safety and performance
• Silver finish for corrosion resistance and durability
• Suitable for use by electrical distributors and switchgear suppliers
