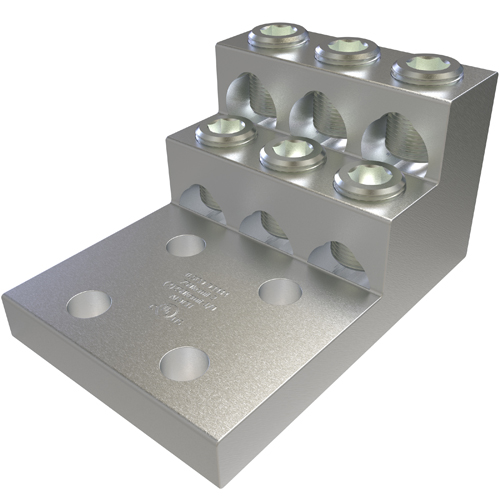

Aluminum Panelboard Lug, Multi Wire, Dual Rated, Conductor Range 750-2, 6 Ports, 4 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA

Aluminum Panelboard Lug Multi Wire Dual Rated Conductor Lug

This aluminum panelboard lug is designed for multi-wire electrical connections in panelboards and switchgear applications. It supports stranded conductors with a dual rating for conductor sizes ranging from 750 kcmil to 2 AWG. Suitable for use by electrical distributors and wire and cable suppliers, this lug provides a reliable mechanical connection with tin-plated aluminum hardware, ensuring corrosion resistance and compliance with UL and CSA standards.

Specifications

• Manufacturer: ILSCO
• Material: Aluminum
• Color: Silver
• Connection Type: Mechanical
• Conductor Type: Stranded
• Conductor Material: Copper
• Number of Conductors: 12
• Number of Ports / Wireways: 6
• Number of Mounting Holes: 4
• Mounting Hole Size: 0.562 inches
• Mounting Bolt/Stud Size: 1/2 inch
• Mounting Hole Spacing: 1.75 inches
• Dimensions (L x W x H): 5.687 in x 3.93 in x 3 in
• Weight: 2.463 lbs
• Voltage Rating: 35 kV
• Temperature Rating: 90¬∞C
• UL / CULUS Specification: UL/cUL 486A/B Listed (UL File Number E6207)
• Dual Rated: Yes
• Direct Burial: No
• Connector Finish: Tin Plated
• Wire Binding Torque: 500 inch-pounds
• Wire Binding Screw Size: 15/16 inch
• Wire Binding Hardware Material: Aluminum
• Wire Binding Hardware Finish: Tin
• UPC: 783669184389
• Manufacturer Part #: PBMW-6-750-12
• Carton Quantity: 10

Features

• Multi-wire lug accommodating up to 12 conductors with 6 ports for efficient wiring
• Tin-plated aluminum construction for corrosion resistance and durability
• Mechanical connection type ensuring secure and reliable electrical contact
• Complies with UL and CSA safety and performance standards
• Dual rated for both copper and aluminum stranded conductors
• Designed with 4 mounting holes and 1/2 inch bolt size for secure installation
• Suitable for panelboard and switchgear applications requiring high voltage and temperature ratings
