AP20044E, Pin and Sleeve Plug

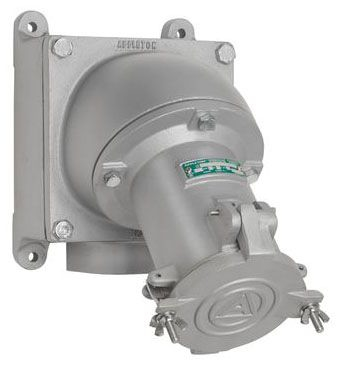

AP20044E, Pin and Sleeve Plug - Powertite 200 Amp Electrical Connector

The AP20044E Pin and Sleeve Plug from Appleton is a heavy-duty 200 ampere electrical connector designed for safe and reliable power distribution in industrial and jobsite applications. It is part of the Powertite‚Ñ¢ Series, featuring a versatile pin and sleeve design that ensures secure connections for both fixed and portable equipment such as motor generators, welders, pumps, and compressors. This plug is suitable for use in harsh environments requiring robust lighting solutions, wire and cable connections, or switchgear supplier applications. Constructed from epoxy powder coated copper-free aluminum, it provides durable environmental protection and complies with UL and CSA standards.

Specifications

• Current: 200 amperes
• Number of Poles: 4
• Number of Wires: 4
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Voltage Rating: 600 Volt AC, 250 Volt DC
• Wire Recess Diameter: 0.687 inches
• Wire Size Range: 250 MCM - 4/0 and 3/0 - #4 copper conductors
• Certifications: UL Standards 1682, CSA Specifications C22.2 No 42
• Environmental Rating: NEMA 3, 3R, 4, 4X (plug is NEMA 4X when clamp is fully tightened)
• Product Weight: 8.6 lbs

Features

• Widely spaced contacts recessed within an internal arc snuffing chamber for enhanced safety
• Durable neoprene sealing bushing for superior environmental protection
• Shell only or shell plus extra pole grounding options for safe "make first, break last" grounding
• Enhanced one-piece terminal block allows faster, easier wire termination and maintenance
• Lockout provision on plug for OSHA-compliant lockout/tagout safety during maintenance
• Reversible cable clamp accommodates cable diameters from 0.875 to 2.5 inches with labeled CD and E size grommets
• Can be field converted between standard and reverse service for generator applications
• Plug shell alignment key simplifies terminal block installation and ensures correct polarization
• Optional NEMA 4X plug dust cap protects insulation and contacts from dust, moisture, and corrosion when not in use
