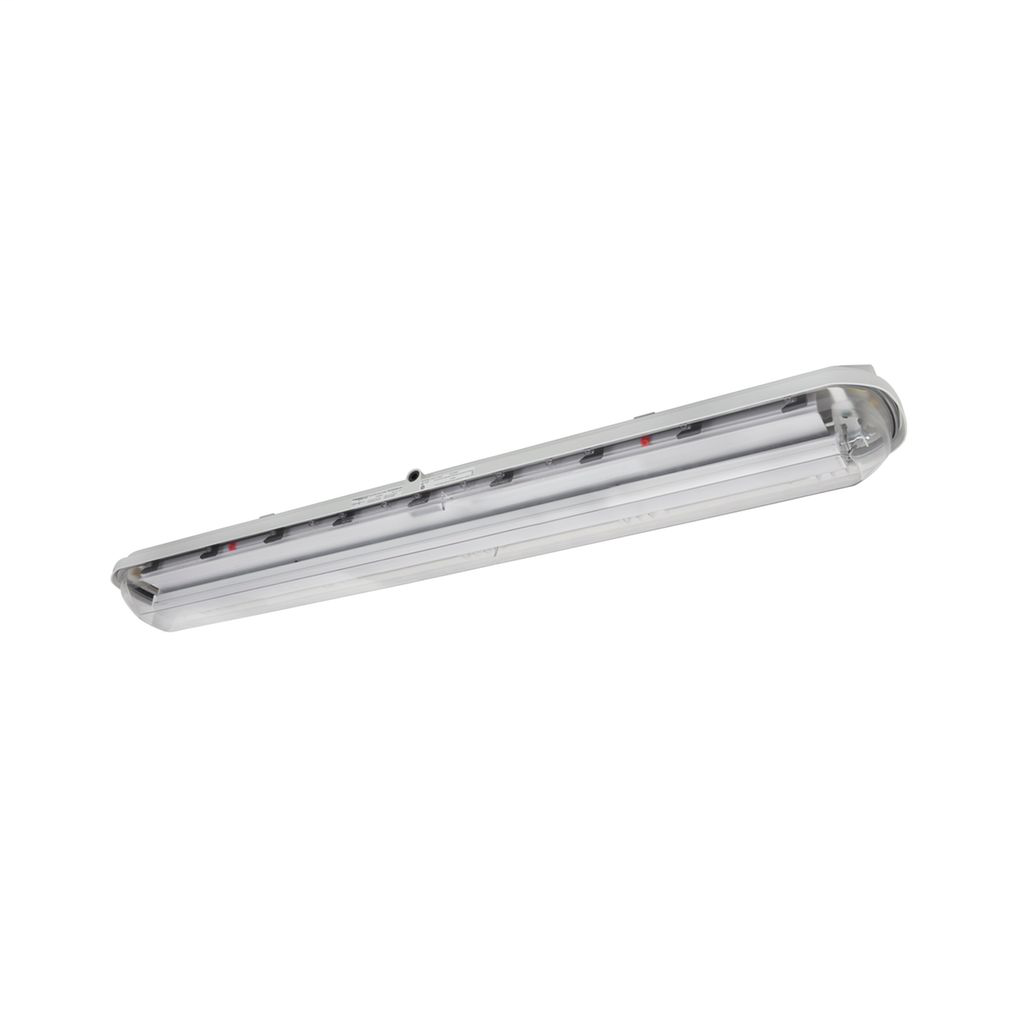

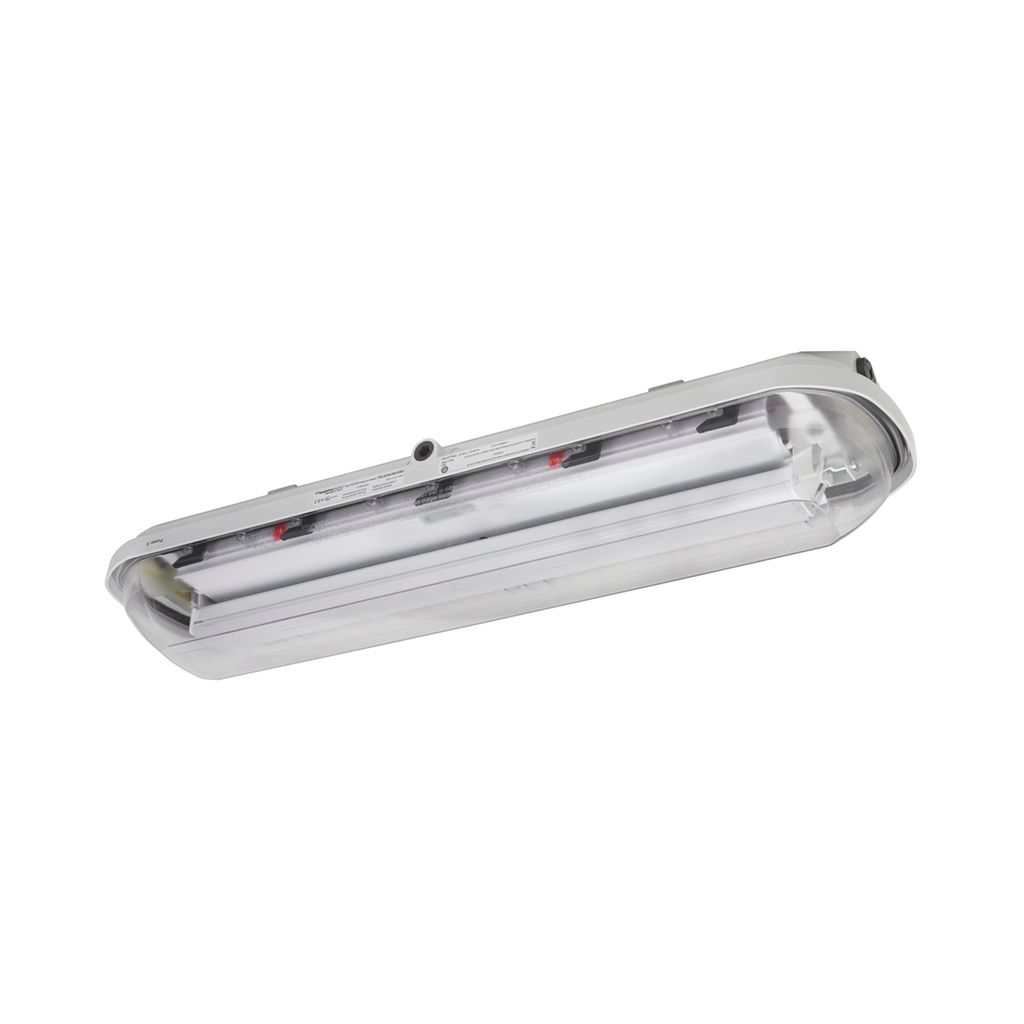

Appleton™ ATX™ FELED Series Nonmetallic LED Luminaires - PN FVWFM

Appleton‚Ñ¢ ATX‚Ñ¢ FELED Series Nonmetallic LED Luminaires - Nonmetallic LED Lighting Solutions

The Appleton‚Ñ¢ ATX‚Ñ¢ FELED Series Nonmetallic LED Luminaires provide reliable, corrosion-resistant lighting designed for hazardous locations classified as Zone 1 and Zone 21. Ideal for electrical distributors and switchgear suppliers serving petrochemical, oil refinery, food processing, and water treatment industries, these fixtures deliver between 2,500 to 7,200 lumens and offer both standard and emergency battery back-up versions. The luminaires feature easy installation and maintenance, with compatibility for retrofitting existing fluorescent fixtures, maintaining the same footprint and mounting accessories to reduce labor and costs.

Specifications

• Manufacturer: Appleton
• Model Number: FVWFM
• Ambient Temperature Range: -20¬∞C to +55¬∞C
• Product Weight: 1.3 kg
• Certification: ATEX/IECEx certified for Zone 1 and 21 hazardous locations (II 2 GD)
• Ingress Protection: IP66
• Impact Resistance: IK10 (20 Joules)
• Lumen Output Range: 2,500 to 7,200 lumens
• Color Temperature Options: 4000K or 5000K
• Voltage Range: 120-277Vac, 170-300Vdc, 50/60 Hz ¬±10%
• Power Factor: >0.95
• Surge Protection: 6KV standard
• Mounting Options: Surface/suspension mount, horizontal or vertical installation
• Emergency Version: 3-hour battery back-up with built-in monthly self-test

Features

• Corrosion-resistant fiberglass reinforced polyester housing with hinged polycarbonate lens
• Easy retrofit to replace existing fluorescent fixtures using same footprint and mounting accessories
• Lightweight design with captive screws and terminal block wiring for simplified installation and maintenance
• Field replaceable LED driver and industry-leading thermal management for reliable operation
• Standard screw-type terminal block accepts 1.5 to 6 mm¬≤ wire
• Positive safety switch disconnects power during maintenance in hazardous locations (emergency models)
• Latch assembly and elastomer gasket provide dust and water ingress protection (IP66)
• Available with M20 or M25 cable entry plugs
• Meets photobiological safety requirements for Risk Group 0 (RG0)
• Compatible with 5000K or 4000K color temperatures
• Standard and emergency versions certified to ATEX and IECEx standards for gas and dust hazardous areas
