Appleton™ EXGJH and EXLK Flexible Couplings - PN EXGJH215

Appleton‚Ñ¢ EXGJH and EXLK Flexible Couplings - Explosionproof Flexible Couplings

Appleton‚Ñ¢ EXGJH and EXLK flexible couplings provide explosionproof and dust-ignitionproof solutions designed for use in electrical distribution and lighting systems where vibration and movement present challenges. These couplings serve as flexible alternatives to rigid conduit in difficult-bend situations, making them suitable for wire and cable installations in hazardous locations. They are ideal products for electrical distributors and switchgear suppliers requiring reliable, watertight conduit fittings compliant with NEC/CEC and ATEX standards.

Specifications

• Material: Brass (End fittings for 1/2‚Äù thru 2‚Äù sizes)
• Finish: Natural
• Product Weight: 2.53 lbs
• Manufacturer Part #: EXGJH215
• Certifications: UL Standard 886 (1203), UL Listed E34997, CSA Standard C22.2 No. 25 & No. 30, CSA Certified 065181
• ATEX Certification: FLEXCO (Excludes Nipples and Unions), Ex d IIC Gb (Gas Zones 1 and 2), Ex t IIIC Db (Dust Zones 21 and 22), IP66 rated
• Ambient Temperature Range: -40 ¬∞C to +150 ¬∞C (-40 ¬∞F to +302 ¬∞F)
• Conduit Compatibility: Threaded rigid metal conduit and IMC

Features

• Explosionproof, dust-ignitionproof, and watertight design
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads ensure tight, rigid joints and ground continuity
• Heavy-duty construction resists mechanical abuse
• Electrical conductivity equal to rigid conduit on a similar length basis, eliminating the need for bonding jumpers
• Interior insulating liner protects conductors from abrasion under vibrating conditions

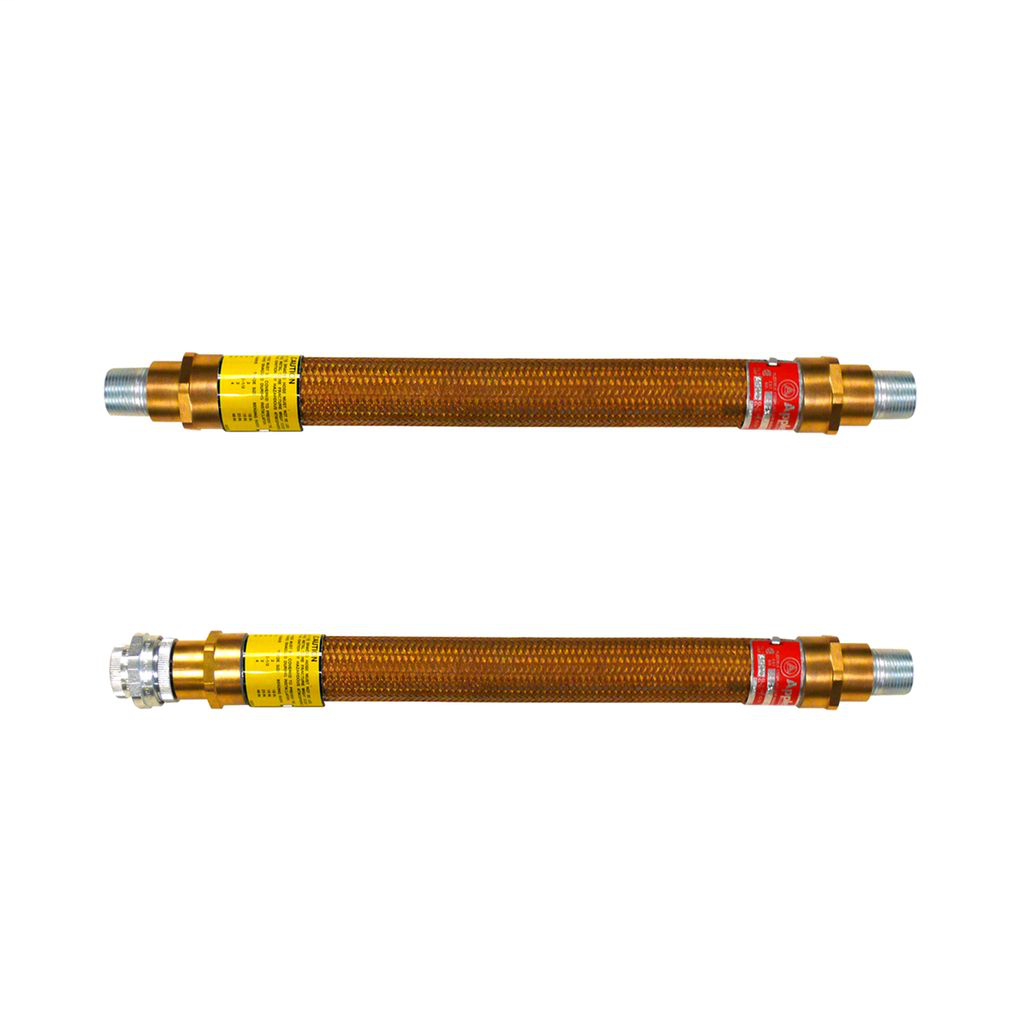

• EXGJH model features female end fittings with removable male nipples on both ends
• EXLK model includes a female end fitting with a union on one end and a female end fitting with a removable male nipple on the other
