Appleton™ EXGJH and EXLK Flexible Couplings - PN EXGJH318

Appleton‚Ñ¢ EXGJH and EXLK Flexible Couplings - Explosionproof Flexible Couplings

Appleton‚Ñ¢ EXGJH and EXLK explosionproof and dust-ignitionproof flexible couplings are designed for use in electrical distribution systems where vibration and movement present challenges. These flexible couplings serve as reliable alternatives to rigid conduit in difficult-bend situations, providing durable and watertight connections suitable for hazardous locations. Ideal for lighting solutions, wire and cable installations, and as components supplied by switchgear suppliers, they ensure safety and performance in harsh industrial environments.

Specifications

• Material: Brass
• Finish: Natural
• Product Weight: 3.69 lbs
• Manufacturer Part #: EXGJH318
• Certification: UL Standard 886 (1203), UL Listed E34997, CSA Standard C22.2 No. 25 and No. 30, CSA Certified 065181
• Explosionproof and Dust-Ignitionproof Ratings: NEC/CEC Class I, Division 1 & 2, Groups A, B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III; ATEX II2 GD Ex d IIC Gb, Ex t IIIC Db, IP66
• Ambient Temperature Range: -40 ¬∞C to +150 ¬∞C (-40 ¬∞F to +302 ¬∞F)

Features

• Explosionproof, dust-ignitionproof, and watertight design
• Smooth, rounded integral bushing in each hub to protect conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and reliable ground continuity
• Heavy-duty construction resists mechanical abuse
• Electrical conductivity equal to rigid conduit on a similar length basis, eliminating the need for bonding jumpers
• Interior insulating liner protects conductors from abrasion under vibrating conditions

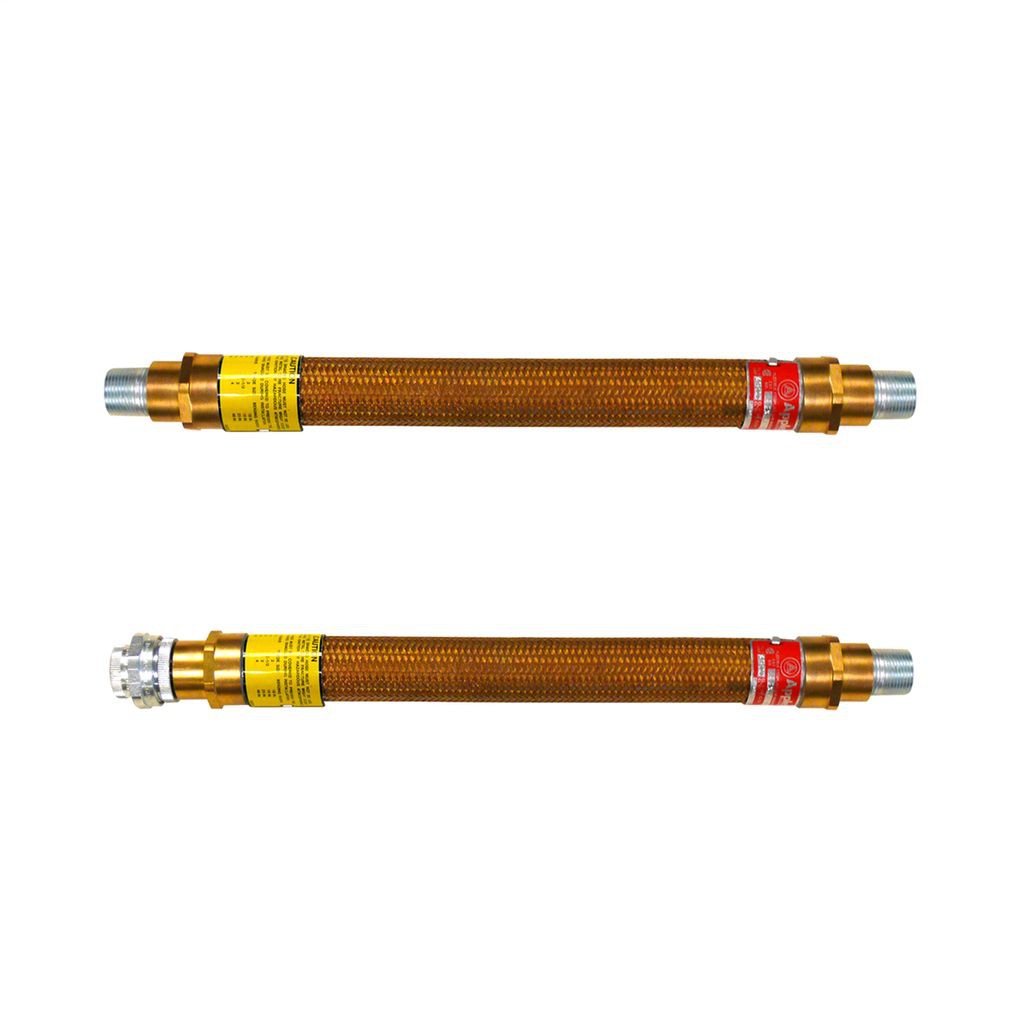

• EXGJH model: both end fittings are female, each with a removable male nipple
• EXLK model: one female end fitting with union, one female end fitting with removable male nipple
• Suitable for use with threaded rigid metal conduit and IMC
