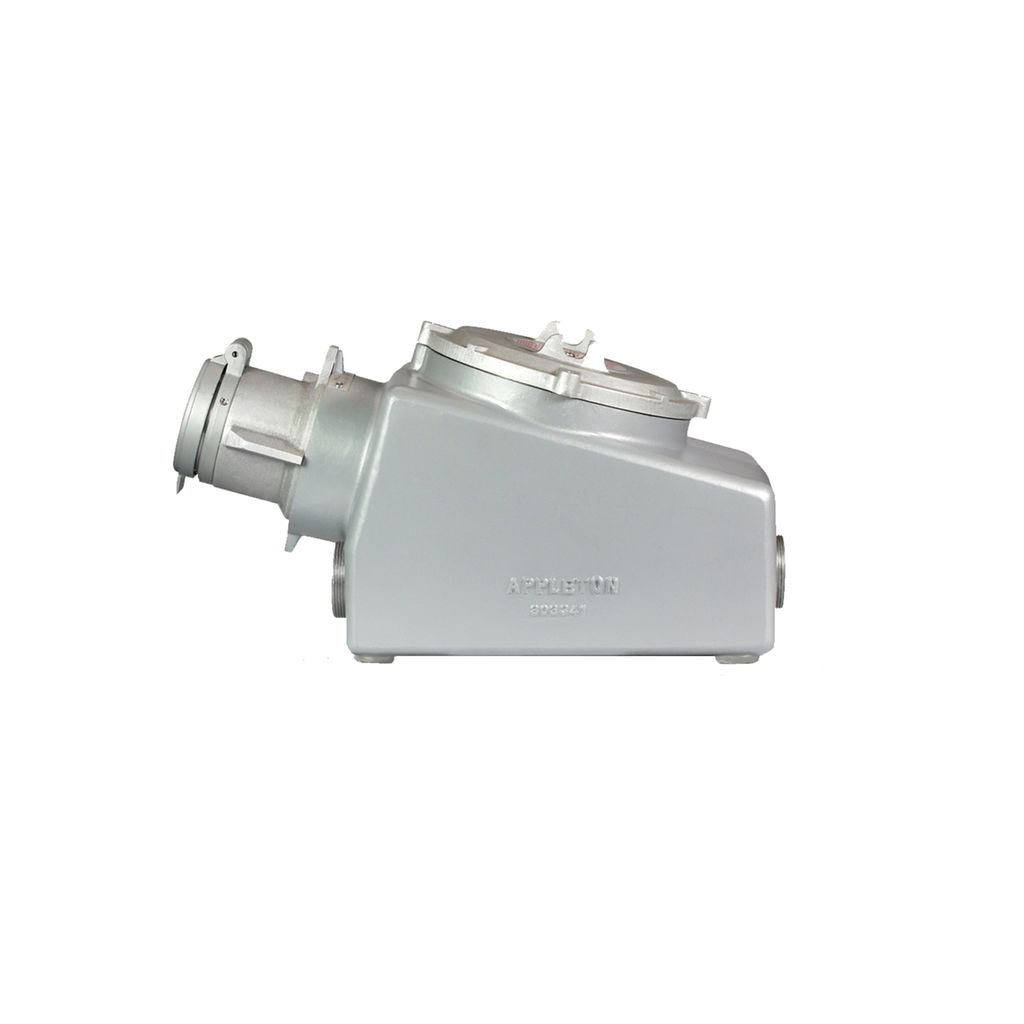

Appleton™ FSQC 30, 60 and 100 Amp Series Interlocked Receptacles - PN ACP1034CD

Appleton‚Ñ¢ FSQC 100 Amp Series Interlocked Receptacles - Industrial Electrical Distributor

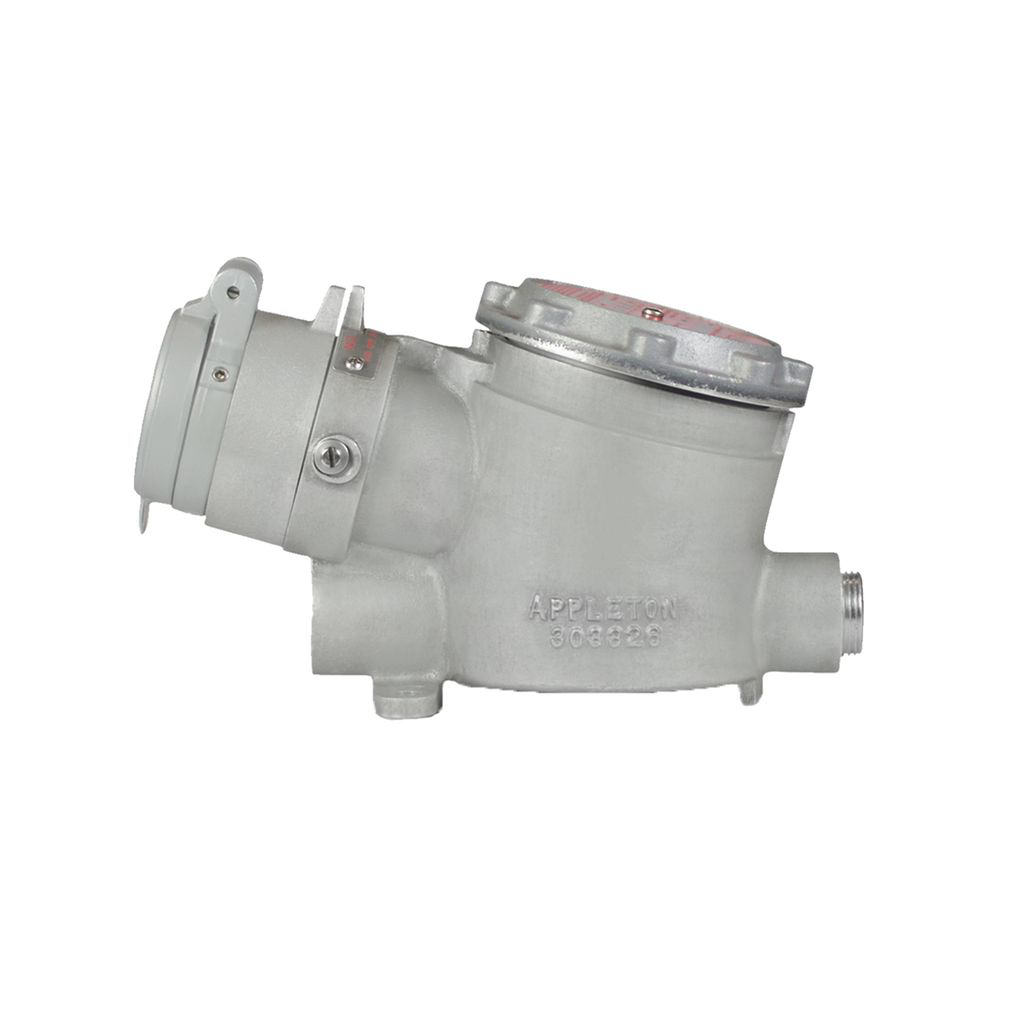

The Appleton‚Ñ¢ FSQC 100 Amp Series Interlocked Receptacle is designed for hazardous locations, providing safe and reliable power connections for industrial applications. This explosionproof and dust-ignitionproof receptacle integrates an interlocked disconnect switch, ensuring that electrical switching occurs internally and preventing plug engagement or disengagement when energized. Ideal for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers, the FSQC series supports heavy-duty equipment such as motor generators, welders, pumps, and compressors in demanding environments including shipping docks and ports.

Specifications

• Amperage: 100 amperes
• Number of Wires: 3
• Maximum Voltage: 600 V AC at 60 Hz
• Configuration: 3-wire, 4-pole
• UL Standards: 050E, 1010, 1203, 1682, 1686
• CSA Standards: No. 30, C22.2 No. 25, C22.2 No. 159
• Mounting: Four 13/32 inch or 3/8 inch steel hex head bolts
• Conduit Entries: Three 2-inch NPT (1 top, 2 bottom)
• Product Weight: 4.45 lbs

Features

• Interlocked disconnect switch for enhanced safety in hazardous locations
• Explosionproof and dust-ignitionproof design
• Rugged Type 4X watertight enclosure and cover sealed with an O-ring
• Grounding Style 2 with ground through shell and extra pole, ensuring positive ground ‚Äúmakes first, breaks last‚Äù
• Arcing confined by internal switch; plug cannot be engaged or disengaged when switch is ON
• Brass contacts with integral springs for positive, maintained electrical contact
• Receptacle face supports weatherproof union with Powertite‚Ñ¢ plugs
• Special polarization option (P4) prevents incorrect plug insertion for different voltages
• Flip cover and screw cover options provide environmental protection; cover cannot be removed when switch is ON
• Compatible with Appleton ACP1034CD plugs for secure, watertight connection
• Padlocking collar allows locking for unauthorized access prevention

Downloads & Links

• Instruction Sheet: FSQC 100 Amp Series Receptacles, 303359 | Appleton
• Instruction Sheet: FSQC 30 and 60 Amp Series Receptacles and ACP Plugs, 303302 | Appleton
• Catalog: FSQC 30, 60 and 100 Amp Series Receptacles and Powertite Plugs | Appleton
