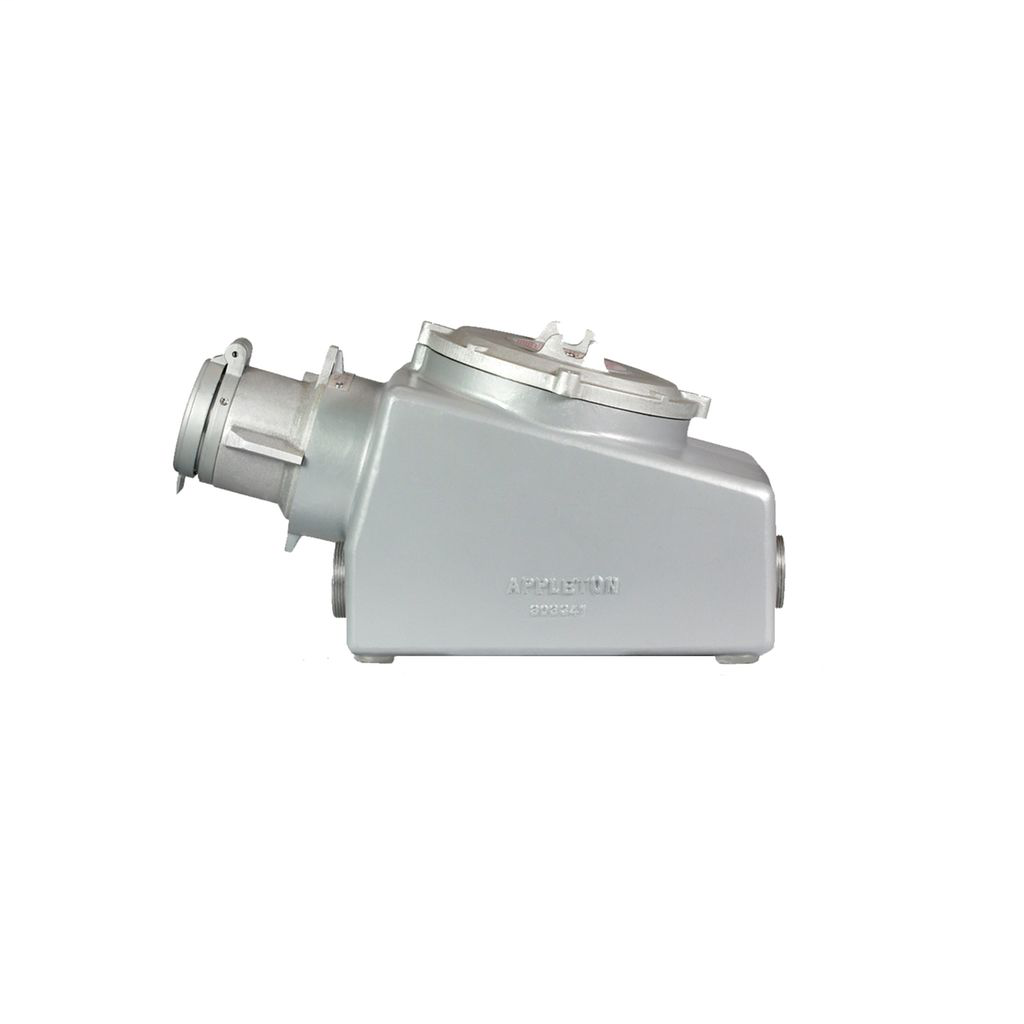

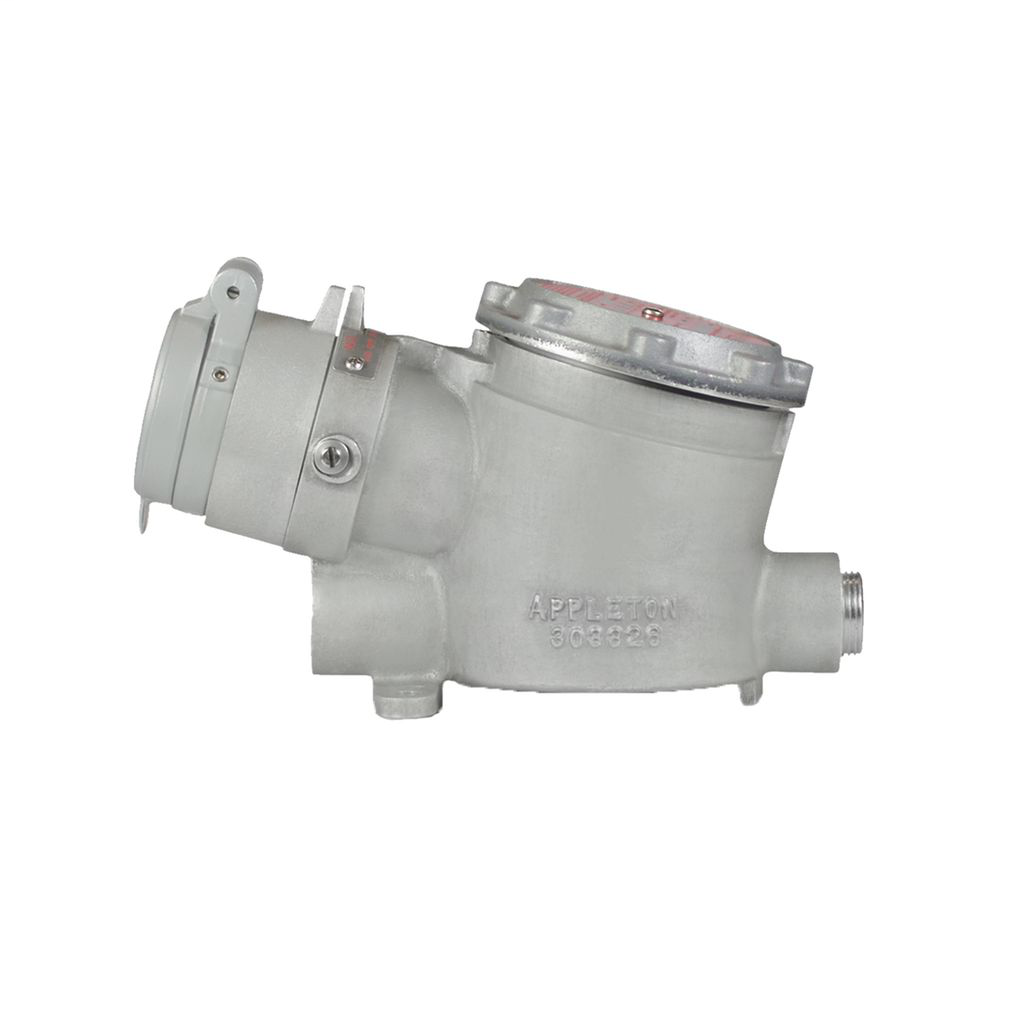

Appleton™ FSQC 30, 60 and 100 Amp Series Interlocked Receptacles - PN ACP3034BC

Appleton‚Ñ¢ FSQC 30, 60 and 100 Amp Series Interlocked Receptacles - Interlocked Electrical Disconnect Switch

The Appleton™ FSQC Series interlocked receptacles are designed for hazardous locations, providing safe and reliable power connections for portable or fixed electrical equipment such as motor generator units, welders, pumps, and compressors. These explosionproof and dust-ignitionproof receptacles are compatible with Powertite™ plugs and feature an interlocked disconnect switch that prevents plug engagement or disengagement when the switch is “ON,” ensuring enhanced safety. Suitable for use by electrical distributors, lighting solutions providers, wire and cable, and switchgear suppliers, the FSQC Series offers rugged Type 4X watertight enclosures and specialized polarization options to prevent mismatched voltage connections.

Specifications

• Amperage: 100 amperes
• Number of Wires: 3
• Maximum Voltage: 600 V AC at 60 Hz (from installation manuals for 30, 60, and 100 Amp models)
• Configuration: 3W, 4P
• Compatibility: Designed for use with Appleton Powertite‚Ñ¢ ACP plugs (e.g., ACP3034BC for 30 A, ACP6034BC for 60 A, ACP1034CD for 100 A)
• Enclosure Rating: Type 4X watertight, explosionproof, dust-ignitionproof
• UL and CSA Compliance: UL Standards 050E, 1010, 1203, 1682, 1686; CSA Standards No. 30, C22.2 No.25, C22.2 No.159
• Product Weight: 1.58 lbs (100 Amp model)
• Manufacturer Part Number: ACP3034BC (100 Amp model)

Features

• Interlocked disconnect switch prevents plug engagement or disengagement when energized, enhancing safety in hazardous environments
• Explosionproof and dust-ignitionproof design suitable for Class I, Division 1 & 2, Groups B, C, D hazardous locations
• Rugged Type 4X watertight enclosure and cover sealed with an O-ring for environmental protection
• Positive contact with brass contacts and integral springs for reliable electrical connection
• Grounding Style 2 with grounding terminal that ‚Äúmakes first, breaks last‚Äù ensuring safety grounding
• Special polarization (P4 option) prevents plug insertion into receptacles wired for different voltages
• Receptacle face enables weatherproof union with mating plugs
• Available with flip cover or screw cover options for environmental protection; covers cannot be removed when switch is ON
• Designed for use with Powertite‚Ñ¢ ACP plugs, mechanically locking the plug into the receptacle when rotated to ON position
• Includes provisions for padlocking to prevent unauthorized operation
• Auxiliary switch option available for remote status detection (100 A model uses AUX100 switch)

Downloads & Links

• Instruction Sheet: FSQC 100 Amp Series Receptacles, 303359 | Appleton
• Instruction Sheet: FSQC 30 and 60 Amp Series Receptacles and ACP Plugs, 303302 | Appleton
• Catalog: FSQC 30, 60 and 100 Amp Series Receptacles and Powertite Plugs | Appleton
