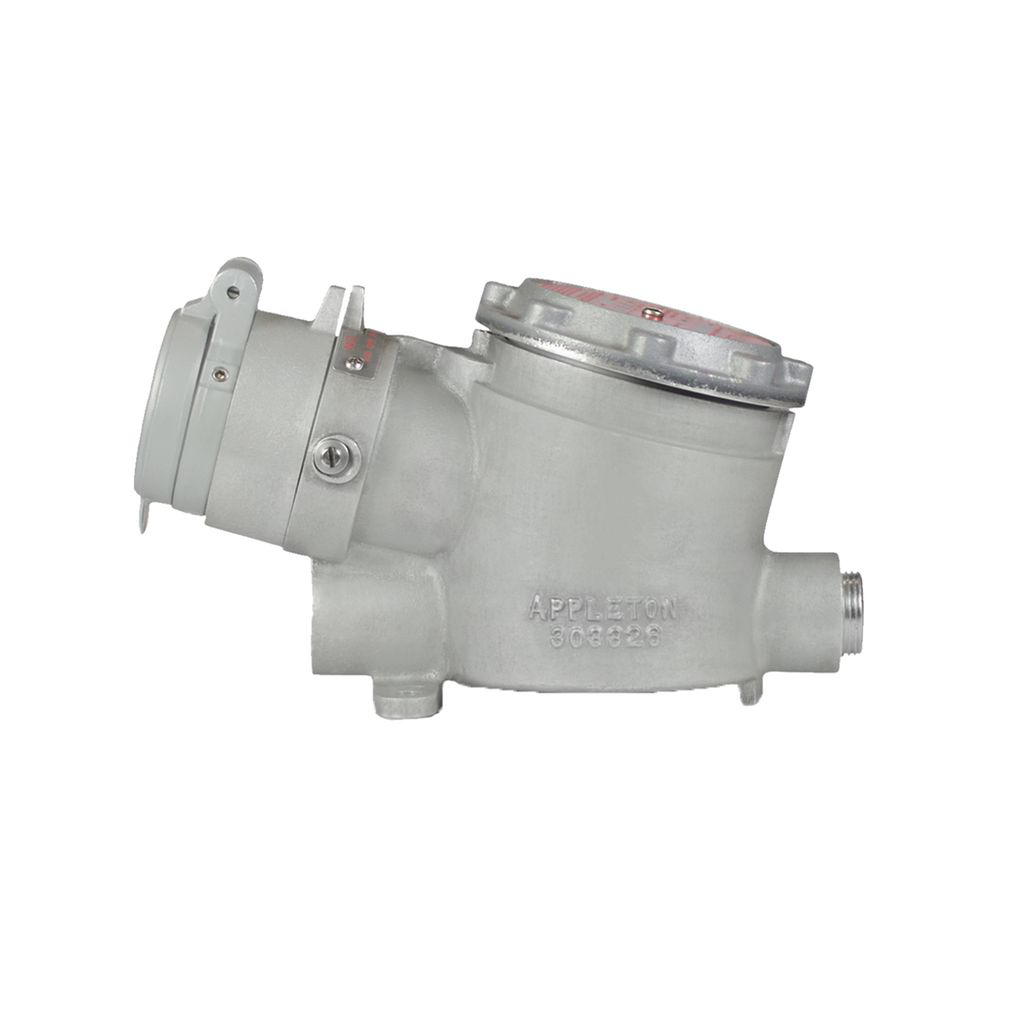

Appleton™ FSQC 30, 60 and 100 Amp Series Interlocked Receptacles - PN ACP6034BC

Appleton‚Ñ¢ FSQC 30, 60 and 100 Amp Series Interlocked Receptacles - Industrial Electrical Safety

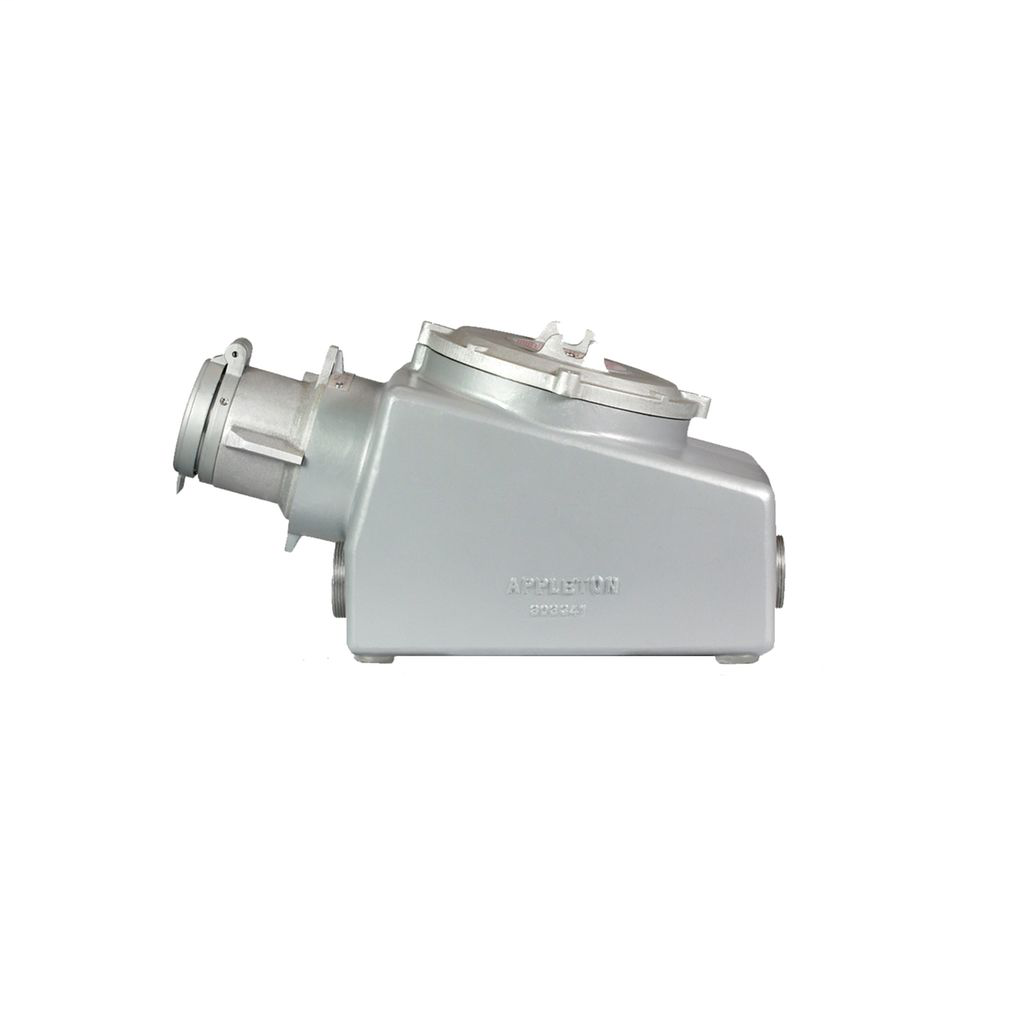

The Appleton FSQC Series interlocked receptacles provide safe and reliable power connections for hazardous locations and rough environments. Designed for use with Powertite‚Ñ¢ plugs, these explosionproof and dust-ignitionproof receptacles feature an interlocked disconnect switch that prevents plug engagement or disengagement when the switch is ON. Ideal for electrical distributors, lighting solutions, wire and cable, and switchgear suppliers, these receptacles are suitable for portable or fixed electrical equipment such as motor generator units, welders, pumps, and compressors, especially in demanding applications like shipping docks and ports.

Specifications

• Amperage: 100 amperes
• Number of Wires: 3
• Maximum Voltage: 600 V AC at 60 Hz (from technical sheets for 30, 60, and 100 A models)
• Configuration: 3W, 4P
• Enclosure Type: Rugged Type 4X watertight, sealed with O-ring
• Grounding Style: Style 2 receptacle ground through shell and extra pole
• Plug Compatibility: Designed for Powertite‚Ñ¢ ACP series plugs (e.g., ACP1034CD for 100 A)
• Product Weight: 2.52 lbs

Features

• Interlocked disconnect switch prevents plug insertion or removal when the switch is ON, enhancing safety in hazardous environments
• Explosionproof and dust-ignitionproof design suitable for Class I, Division 1 and 2, Groups B, C, D hazardous locations
• Special polarization (P4 option) prevents plug insertion into mismatched voltage receptacles
• Positive brass contacts with integral springs ensure maintained electrical contact
• Dead front receptacle when plug is not engaged
• Flip cover and screw cover options for environmental protection; covers cannot be removed when switch is ON
• Grounding terminal ‚Äúmakes first, breaks last‚Äù for safety grounding
• Mechanical locking of plug by rotating receptacle collar to ON position
• UL and CSA certified to applicable standards (UL 050E, 1010, 1203, 1682, 1686; CSA No. 30, C22.2 No.25, C22.2 No.159)

Downloads & Links

• Instruction Sheet: FSQC 100 Amp Series Receptacles, 303359 | Appleton
• Instruction Sheet: FSQC 30 and 60 Amp Series Receptacles and ACP Plugs, 303302 | Appleton
• Catalog: FSQC 30, 60 and 100 Amp Series Receptacles and Powertite Plugs | Appleton
