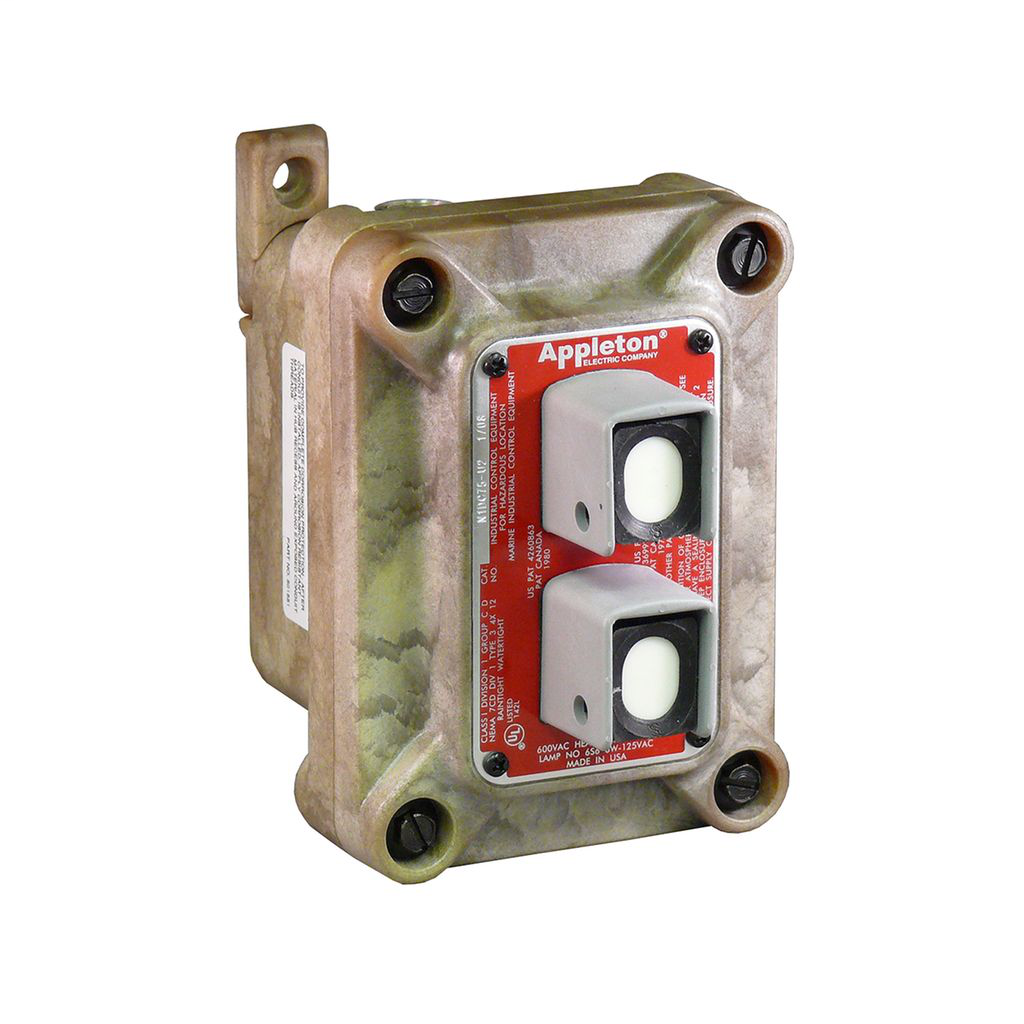

Appleton™ Intraground™ N1 and N2 Series Control Stations - PN N1D75U2

Appleton‚Ñ¢ Intraground‚Ñ¢ N1 and N2 Series Control Stations - Industrial Control Solutions

The Appleton‚Ñ¢ Intraground‚Ñ¢ N1 and N2 Series Control Stations are designed for heavy-duty electrical control applications in corrosive and hazardous environments. These nonmetallic enclosures provide reliable remote motor control through a variety of push buttons, selector switches, and pilot lights, making them suitable for use by electrical distributors and switchgear suppliers. Ideal for use in classified locations such as Class I, Division 1 and 2, Groups B, C, D, and Class II, Groups E, F, G, the N1 Series is non-factory sealed while the N2 Series comes factory sealed for enhanced protection. Their corrosion-resistant construction and superior grounding features make them optimal for lighting solutions, wire and cable installations, and control systems requiring durable, explosion-proof components.

Specifications

• Voltage Rating: 10 Amp, 600 Vac Max. for Heavy Duty Use
• Series: N1 (Non-Factory Sealed), N2 (Factory Sealed)
• Applications: Class I, Division 1 & 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
• Enclosure Type: Nonmetallic, high-tensile 30% glass reinforced thermoplastic polyetherimide
• Mechanical Properties: 24,500 psi tensile strength (N1), 17,000 psi tensile strength (N2), 3% elongation at break
• Electrical Properties: Dielectric strength of 769 (N1) and 490 (N2) at 1/16‚Äù and 1/8‚Äù respectively
• Conduit Openings: Feed-thru or dead-end grounded 1/2‚Äù or 3/4‚Äù threaded conduit openings
• Sealing: N2 Series factory sealed; N1 Series requires field-installed sealing fittings
• Certifications: UL Standards 508, 698, 1203; UL Listed E10449, E81751
• Environmental Ratings: NEMA 3R, 4X, 7CD, 9EFG, 12
• Color: N1 Series - Neutral; N2 Series - Blue
• Weight: Approximately 3.45 lbs

Features

• Corrosion resistant parts coated with epoxy, Teflon¬Æ, or Mylar¬Æ for superior chemical resistance
• Unique labyrinth-path construction with silicone gasket prevents moisture and dust ingress
• Aluminum grounding grid embedded in enclosure provides complete grounding without extra wiring
• Push buttons and selector switches feature stainless steel shafts and silver cadmium oxide contacts for durability
• Pilot lights provide visual confirmation of electrical function at local or remote locations
• High impact and crush resistance with excellent ultraviolet and water resistance
• Explosionproof design with sealing fittings withstands hydrostatic test pressures exceeding potential gas or vapor explosions
• Wide range of device configurations including push buttons, selector switches, pilot lights, and combinations
• Optional accessories include mushroom heads, locking guards, LED pilot lights, and transformers
