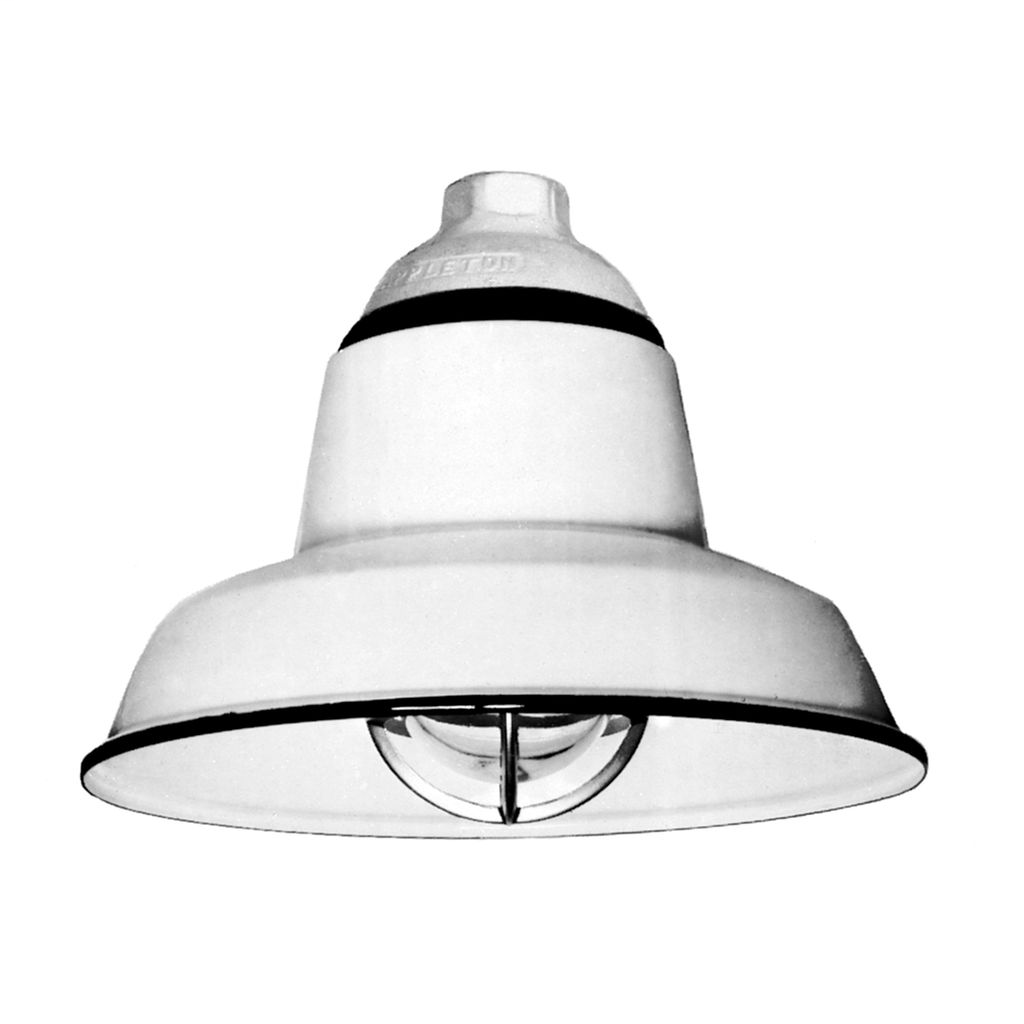

Appleton™ V—51™ Incandescent Luminaires - PN VGL2BL

Appleton™ V—51™ Incandescent Luminaires - Enclosed and Gasketed Lighting Solutions

The Appleton™ V—51™ Incandescent Luminaires are designed for use with 60 to 300 Watt medium base incandescent lamps. These enclosed and gasketed fixtures are suitable for hazardous, industrial, and wet locations. Ideal for electrical distributors and lighting solutions providers, the V—51™ luminaires offer reliable performance in storage areas, tunnels, subways, chemical plants, and other environments prone to moisture, dirt, or corrosive atmospheres. Compatible with threaded metal conduit, they support diverse mounting options including pendant, 45º stanchion, ceiling, and wall installations.

Specifications

• Manufacturer: Appleton
• Manufacturer Part #: VGL2BL
• Lamp Wattage Range: 60 to 300 Watts
• Lamp Base: Medium Base Incandescent
• Product Weight: 3.0000 lbs
• Suitable for: Hazardous, Industrial, and Wet Locations
• Certifications: UL Standard UL 1598, UL 844; UL Listed E10444; CSA Standard C22.2 No. 250, C22.2 No. 137; CSA Certified 025428
• Enclosure Rating: Enclosure 3R
• Classifications: NEC Class I, Division 2, Groups A, B, C, D; CEC Class I, Division 2, Groups A, B, C, D; Class II Divisions 1 and 2 Groups E, F, G; Class III
• Maximum Input Voltage: 150 V
• Mounting Options: Pendant, Ceiling, Wall, 45¬∫ Stanchion

Features

• Enclosed and gasketed design for use in hazardous and wet locations
• Furnished with connection block for easy wiring
• Unitized construction reduces installation and maintenance costs
• Shock-absorbing porcelain socket for extended lamp life
• Neoprene rubber ring secures reflector to mounting hood, protecting against vibration and chipping
• Steel wire guard snaps securely into globe adapter, usable with or without reflector
• Mounting hoods and globe adapters made of malleable iron with triple coat finish (zinc electroplate, chromate, epoxy powder coat)
• Glass globes standard; optional polycarbonate globes available (100 W max)
• Suitable for use with threaded metal conduit (UNILETS¬Æ)

Downloads & Links

• Instruction Sheet: V-51 Incandescent Luminaires, 650176001 | Appleton
• Catalog: V-51 Incandescent Luminaires | Appleton
