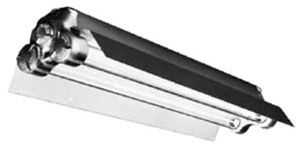

ARS232BU, Explosionproof Fluorescent Light Fixture

ARS232BU Explosionproof Fluorescent Light Fixture

The ARS232BU is an explosionproof fluorescent light fixture designed for hazardous environments, suitable for use in classified areas such as pharmaceutical firms, paint-manufacturing plants, and printing plants. This fixture is ideal for electrical distributors and lighting solutions providers requiring reliable, durable lighting in locations where ignitable dust, fumes, gases, paint residue, or corrosive atmospheres may be present. It supports two T8 bi-pin fluorescent lamps and is compatible with 120/277 Volt AC power supplies, making it a practical choice for wire and cable or switchgear suppliers looking to meet stringent safety standards.

Specifications

• Lamp Type: T8 Fluorescent
• Number of Lamps: 2
• Lamp Wattage: 32 watts
• Ballast Type: Rapid Start, Class P with automatic thermal protection
• Line Voltage: 120/277 Volt AC, 50/60 Hz
• Minimum Starting Temperature: -18¬∞C (0¬∞F)
• Reflector Type: White baked enamel inside, gray epoxy outside
• Hub Size: 3/4 inch
• Dimensions (L x W x H): 52.44 in x 15 in x 8.75 in
• Housing Material: Copper-free cast aluminum
• Housing Finish: Epoxy gray
• Current Rating: 0.52 to 0.22 Amp
• Enclosure Classifications: Class I Div 1 & 2 Groups C, D; Class II Div 1 & 2 Groups E, F, G; Class III
• Certifications: UL 844, CSA C22.2
• Mounting Type: Ceiling
• Product Weight: 77 lbs

Features

• Explosionproof, dust-ignitionproof design with factory-sealed unit‚Äîno external seals required
• Impact-resistant and heat-resistant glass tubes protect lamps
• Non-sparking exterior surfaces for enhanced safety
• Three hubs on each end for flexible mounting options (straight down or 45¬∞ to either side)
• Reflectors removable with a screwdriver for easy maintenance
• Equipped with Class P ballasts featuring automatic thermal protection against voltage irregularities and short circuits
• Suitable for wet locations and threaded metal conduit
• Applicable for use in hazardous classified areas according to NEC/CEC standards
