Astronomic 365-Day 2-Circuit Electronic Control, 120-277 VAC, 50/60 Hz, 2-SPDT, Indoor Metal Enclosure, Ethernet Optional

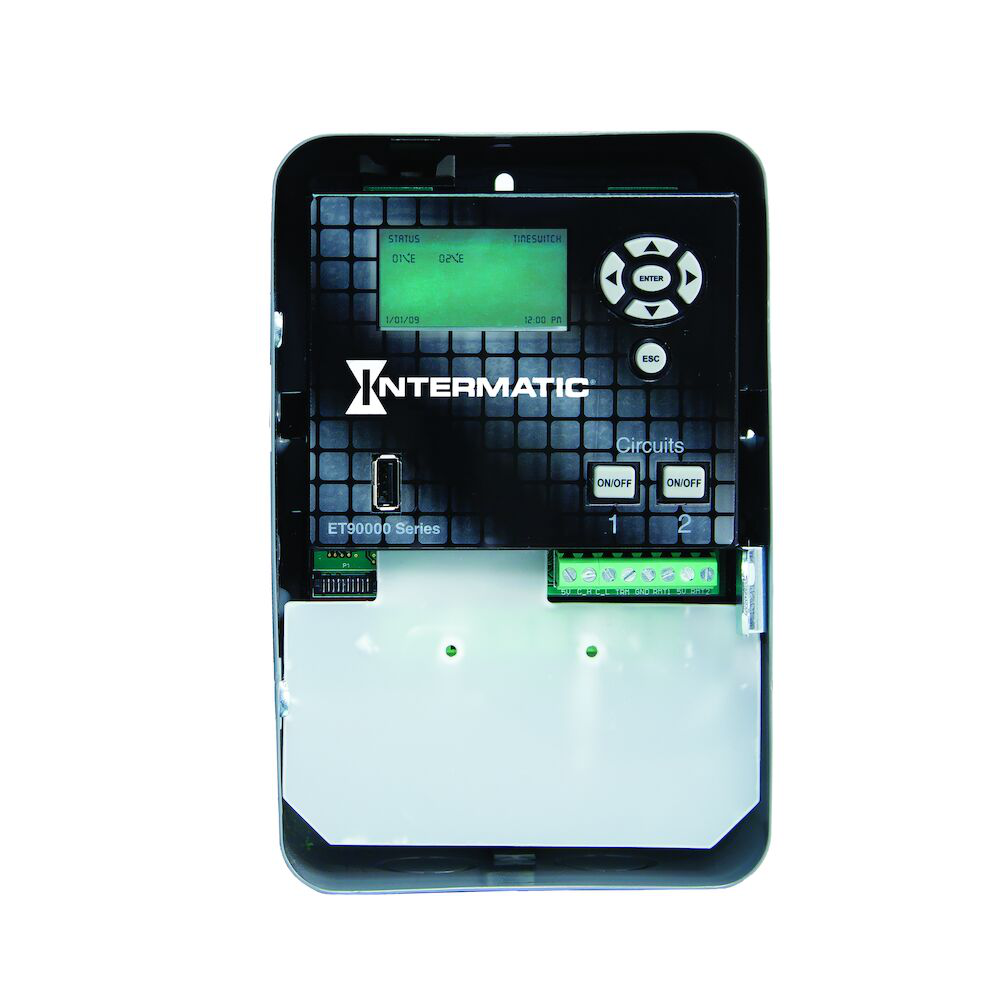

Astronomic 365-Day 2-Circuit Electronic Control by Intermatic

The Astronomic 365-Day 2-Circuit Electronic Control, model ET90215C from Intermatic, is a versatile indoor electronic timer designed for precise lighting and equipment control. It supports advanced scheduling with up to 2,000 events, including holiday schedules and astronomic timing for sunrise and sunset. Equipped with a durable metal enclosure and optional Ethernet connectivity, this control is suitable for electrical distributors and lighting solution providers requiring reliable wire and cable management and switchgear components.

Specifications

• Voltage Range: 120-277 VAC, 50/60 Hz
• Number of Circuits: 2
• Switch Type: 2-SPDT
• Maximum Load Ratings:
  • General Purpose (NO): 30 A at 12-240 VAC
  • General Purpose (NC): 10 A at 12-240 VAC
  • Resistive (NO): 20 A at 28 VDC, 30 A at 12-240 VAC
  • Resistive (NC): 10 A at 28 VDC, 10 A at 12-240 VAC
  • Magnetic Ballast (NO): 20 A at 120-277 VAC
  • Magnetic Ballast (NC): 3 A at 120-277 VAC
  • Electronic Ballast (NO): 8 A at 120-277 VAC
  • Tungsten (NO): 5 A at 12-120 VAC
  • Motor (NO): 1 HP at 120 VAC, 2 HP at 240 VAC
  • Motor (NC): 1/4 HP at 120 VAC, 1/2 HP at 240 VAC
  • Pilot Duty (NO): 470 VA at 120-240 VAC
  • Pilot Duty (NC): 275 VA at 120-240 VAC
• Maximum ON/OFF Operations: 2,000
• Minimum ON/OFF Time: 1 second
• Maximum ON/OFF Time: 365 days
• Backup Power: 100-hour supercapacitor (no batteries required)
• Dimensions: 7.8 in (H) x 5.1 in (W) x 3 in (D)
• Operating Temperature: -40¬∞F to 104¬∞F (-40¬∞C to 40¬∞C)
• Weight: 3.642 lbs
• Enclosure: Indoor Type 1 metal enclosure
• Data Transfer: USB and optional Ethernet
• Certifications: UL, cULus, CSA, Title 20 compliant
• Country of Origin: Mexico
• Warranty: 3-year limited

Features

• Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
• Supports over 2,000 events plus holiday schedules with advanced relative date scheduling
• 100-hour supercapacitor backup eliminates the need for batteries
• USB port for easy program upload, download, and firmware updates
• Firmware upgradeable in the field via USB or Ethernet
• Intuitive on-screen menu for programming to the minute
• Non-volatile memory retains programming indefinitely
• Mobile and PC apps for real-time remote control and scheduling
• Internally expandable in 4-circuit increments (up to 16 circuits for larger models)
• Automatic daylight saving time adjustment
